45
2
Hardware Installation

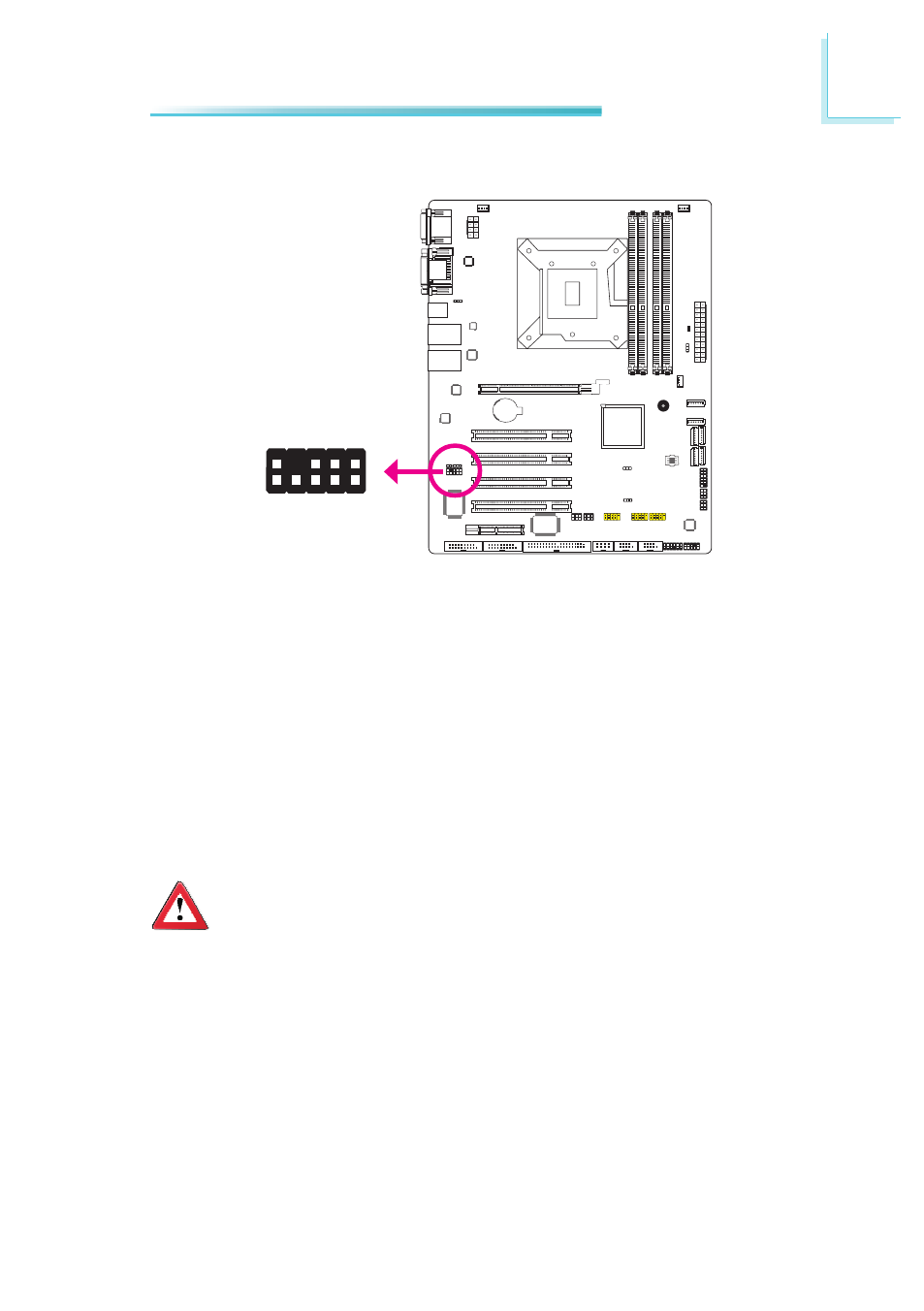

KB/Mouse Connector
10
9
1
2
KB
CLK
GND NC
MS
CLK
MS
DA
TA
CHA
S
SIS
GND
GND
+5V_STB
KB
DA
TA
+5V_STB
The KB/Mouse connector is used to connect PS/2 keyboard and PS/2 mouse by
means of a PS/2 cable.
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use the PS/2 keyboard
or PS/2 mouse to power-on the system. To use this function:
• Jumper Setting
JP4 must be set to “2-3 On: 5V_standby”. Refer to “PS/2 Power Select” in
this chapter for more information.
Important:
The 5V_standby power source of your power supply must support
≥720mA.
