Digi-Star Model EZ3200/EZ3200V/EZ3200V RC
2. Mounting and connection
3
! copyright - 10/24/2001
LOAD CELL CONNECTION
The indicator operates with strain gage load cells.
The system is normally supplied with a J-BOX cable
going between the scale indicator and the load cell
junction box. Extension Kits are available from your
dealer in various lengths.

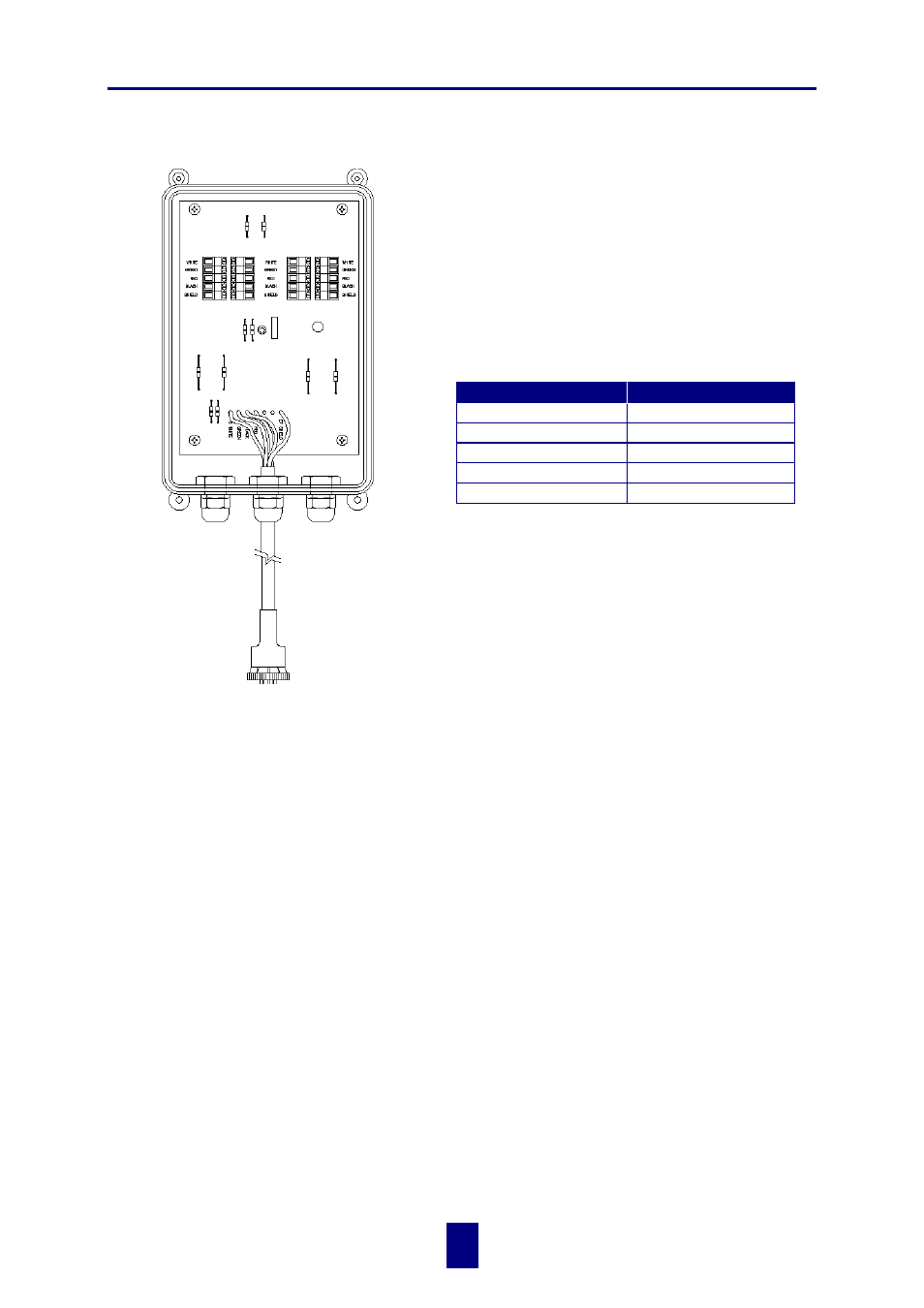

To connect the load cells, attach the junction box
cable to the J902 connector on the bottom panel of
the scale. Connect the load cell cables to the junc-
tion box as shown left.
!
Follow color key on circuit board to insure proper
connection of load cell wires.
LIGHTNING PROTECTION
Additional protection can be achieved with the proper installation of grounding rods. Please call
(920) 563-1400 to request Digi-Star Form F3050.
TECHNICAL MANUAL
Technical Manual available upon request. Please call (920) 563-1400 to request Digi-Star Manual
for New EZ3200.
WHITE
SIGNAL +
GREEN
SIGNAL -
RED
EXCITATION +
BLACK
EXCITATION -
SHIELD
SHIELD
Terminal Color
Description
to J902 connector of indicator
