6-3. Back-up CD Player
DVR units are with a built-in CD-RW, and user can copy images to CD.Using back-up CD player, user
can see images on back-up CD, and function of each button inBack-up CD player is as below.

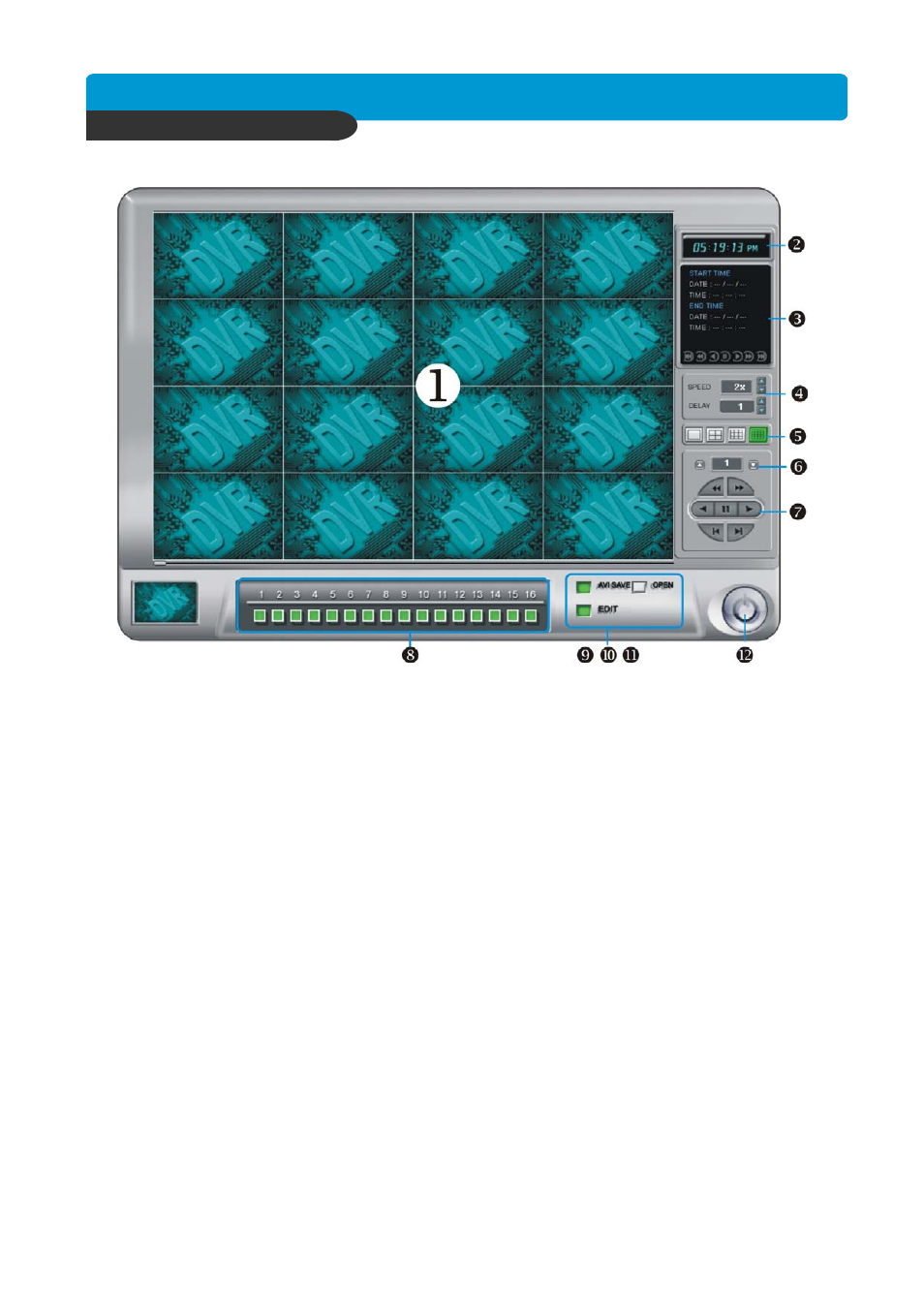

1. Display screen : To display the backup image
2. Time
: Current time.
3. Status Window : Start & End of time & date, Status of operating button.
When user play forward/backward, recorded time will appear.
4. Play Speed button : User can adjust play speed by pressing up/down button.
(2X,4X,8X,16X,32X,64X) Delay : (1, 1/2, 1/4, 1/8, 1/16)
5. Screen division : Select Full / 4 / 9 / 16 split screen.
6. Page button : This button is just working when screen-division is 4-split in 8 ch DVR, or 4-split or
8-split in 16 ch DVR. Moves to next page.
7. Operation button : User can search recorded data using these buttons.
a) Move the slide bar to start position
b) Play fast backward in preset speed
c) Play backward at 1x speed
d) Pause
e) Play forward at 1x speed
f ) Play fast forward in preset speed
g) Move the slide bar to end position
8. Channel button : Select channel to see pictures in full screen.
9~11. Function button
a) OPEN : Open the Back-up CD Player.
b) EDIT : User can save and print recorded image on Edit mode. This edit button will work when you
selected full screen .
c) AVI SAVE : To save the backup image as AVI format .
12. EXIT : Exit from Back-up CD Player.
