Store and Recall
DSG3000 allows users to store various types of files to internal or external memory
and recall them when required.
DSG3000 provides a local memory (D disk) and an external memory (E disk).
 D disk: provide storage locations for train list, flatness, sweep list and state files.
 E disk: available when USB storage device is detected at the USB Host interface
at the rear panel. You can store the files which the same types as the files saved
by D disk to USB storage device.

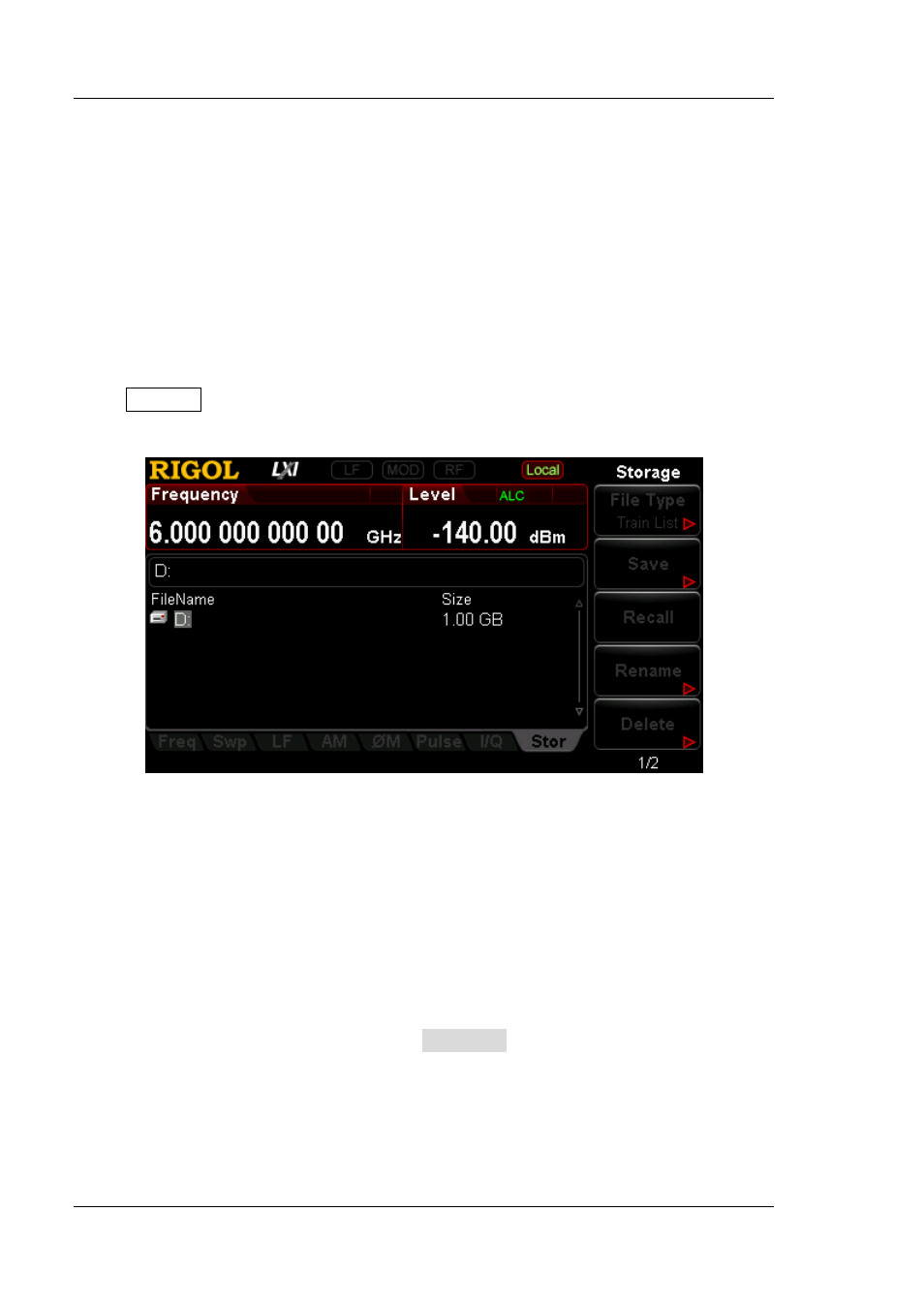

Press Storage at the front panel to enter the store and recall interface as shown in
Figure 2-3.
Figure 2-3 store and recall interface
NOTE: DSG3000 can only recognize files with filenames consisting of Chinese
characters, English characters and numbers. If other characters are used in the file
or folder name, it might not be displayed in the store and recall interface normally.
File Type
In the store and recall interface, use the up/down direction keys or knob to select the
current saving directory (when USB storage device detected is available, you can
switch between D disk and E disk). Press File Type to select the desired file type.
The file types available are all, train list, flatness, sweep list, state, flatness csv,
sweep csv, record csv, amplitude calibration, train csv and ARB and the default is “All”.
The description of each file type is as shown in the table below.
