7. OSD MENU OPTIONS
The OSD contains screen settings, menu options, and informational readouts that display over the
image, as shown below. Press MENU on the remote to open the Main Menu, as shown in Section
. Press the
▲▼ buttons to navigate within the menu pages. Press the ►◄ buttons to navigate
between the menu page, options, and values columns. The yellow highlighted area shows the
currently selected option in the menu.

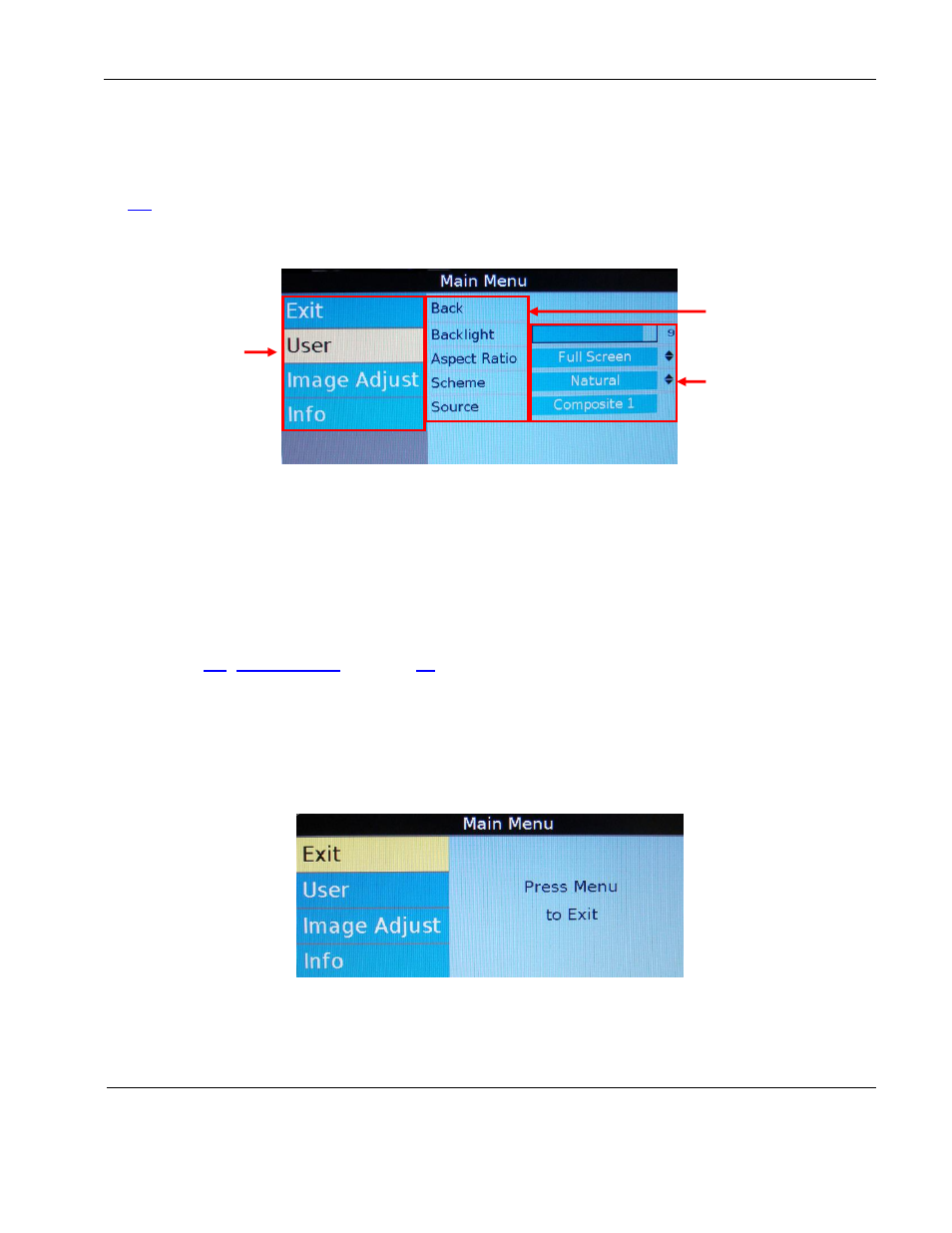

Figure 5 OSD menu options
The available menu options will vary depending on which source signal is active.
Press MENU to choose a setting or an option.
Select the Back option to switch menu pages.
Press EXIT to close the OSD and save settings.
Note: The on-screen display will timeout and close automatically after no screen activity for a
preset amount of time, which is adjustable on the Technician MenuOSD Timeout option. See
Section
, on page
7.1. Exit
Use Exit to close the OSD. When you press MENU on the remote, the OSD opens to this
screen, as shown below. Press MENU again to close the OSD from this screen.
Press the
▲▼ buttons to access the other menu pages in the OSD.
From other settings within the OSD, press EXIT on the remote control.
Figure 6 Opening screen for the Main Menu
Press
► to access
the menu page
options
Press
► to access
the menu option
values
Press
▼ to
access menu
pages. The
selected menu
page is
highlighted.
