16
Instructions for use V 2.6 – 10/2012
4.4

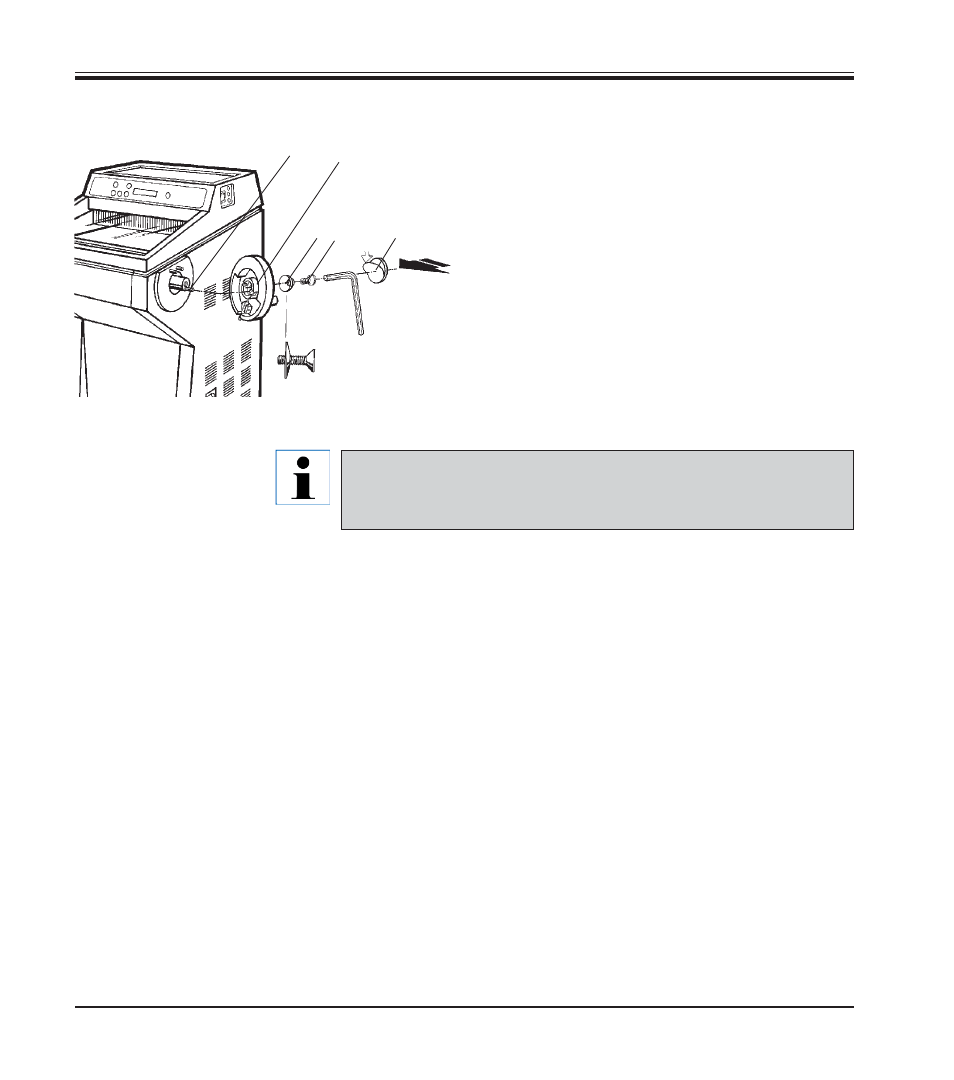

Handwheel assembly
•
Insert the pin
(1)
of the handwheel shaft in to
the hole
(2)
of the handwheel.
•
Mount the spring washer
(3)
on the screw
(4)
as shown in
Fig. 16
.
•
Tighten the screw
(4)
with an Allen key (5 mm).
•
Attach the cover disc
(5)
(self-adhesive).
To dismount, proceed in reverse order.
The handwheel including the fixing components are packed in the
cardboard box for the accessories.The handwheel can be dis-
mounted for transporting (e.g. narrow doors).
Fig. 5
4.
Unpacking and installation
3 4
5
2
1
