3-1
P/N: 4809642
©2004 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
28SEP04(4809642 v1.2)8.1GMTruck
3-1
Section 3
INTAKE MANIFOLD BREATHER/PCV/THROTTLE BODY
GASKET INSTALLATION

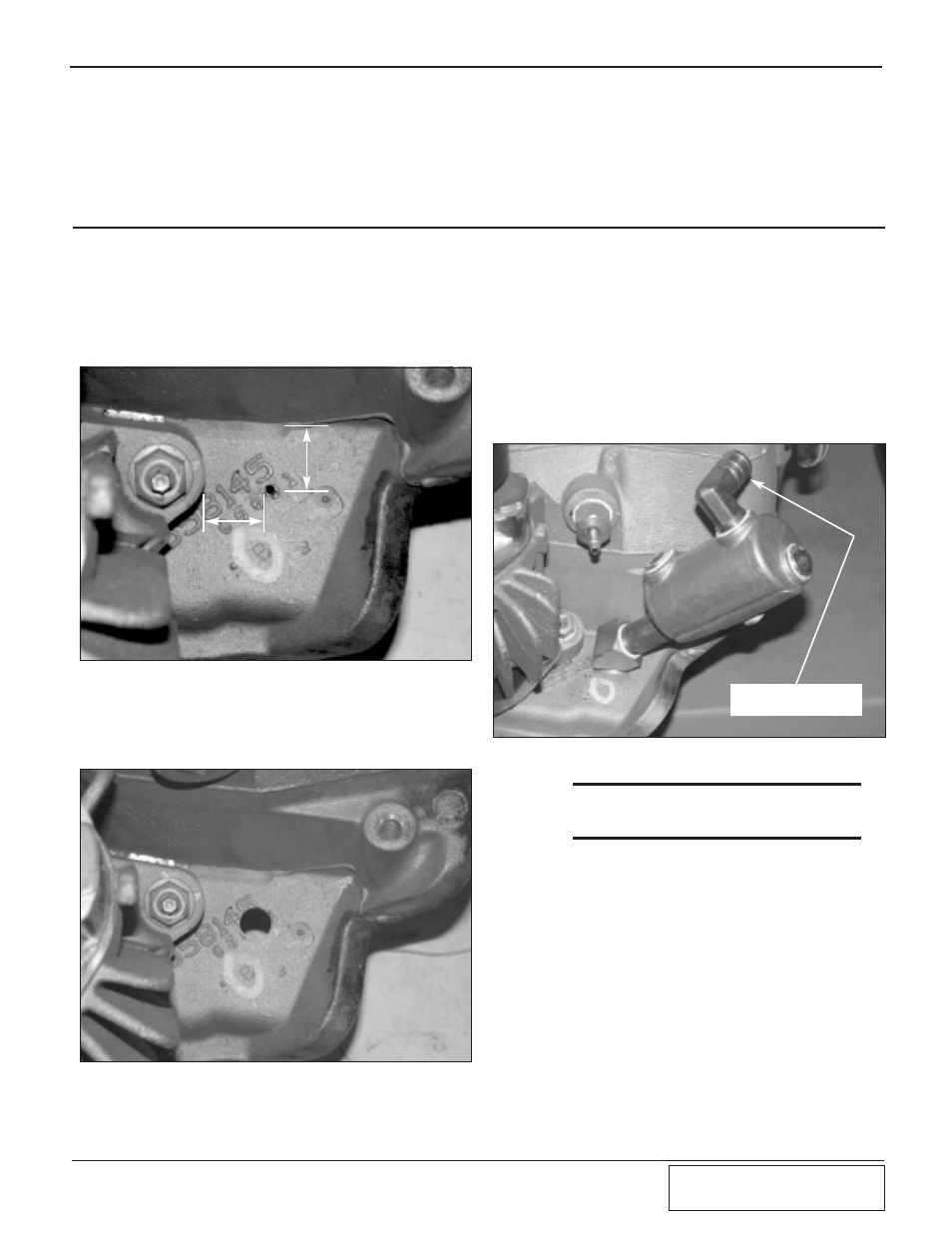

A. Breather Installation:
1.
With the manifold removed, locate and
center punch a location on the rear of
the intake manifold near the base of the
EGR motor. (See Fig. 3-a.)
3.1 INTAKE MANIFOLD BREATHER/PCV/THROTTLE BODY GASKET INSTALLATION
Fig. 3-a
Fig. 3-b
***NOTE***
The baffle and barb will not be installed at this
time to aid the EGR tube re-installation.
B. PCV Valve Installation:
1.
Locate the small metal breather tube
pressed into the bottom of the cast
manifold. With a pair of pliers, pull out
the metal piece leaving an open hole.
Use a 7/16" drill to enlarge the hole.
2. Drill a 1/8" pilot hole at the center loca-
tion. Use a 9/16 rota-broach to drill a
hole in the manifold. (See Fig. 3-b.)
3. Tap the hole with a 3/8" NPT tap to
approximately 1/2" deep or until the fit-
ting can be started.
4. Apply a small amount of silicone sealer
to the supplied 3/8" x 45° street fitting
and secure it in the hole. Thread the
3/8" nipple into the street elbow. Orient
the elbow and nipple toward the dri-
ver’s side. (See Fig. 3-c.)
Fig. 3-c
ATTACH 5/8" HOSE FROM
180° INLET DUCT
1.8"
.865"
