11-2
P/N: 4809642
©2004 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
28SEP04(4809642 v1.2)8.1GMTruck
F. Attach the prevously routed red wire to the
positive (+) terminal of the fuel pump using
the yellow ring terminal connector.

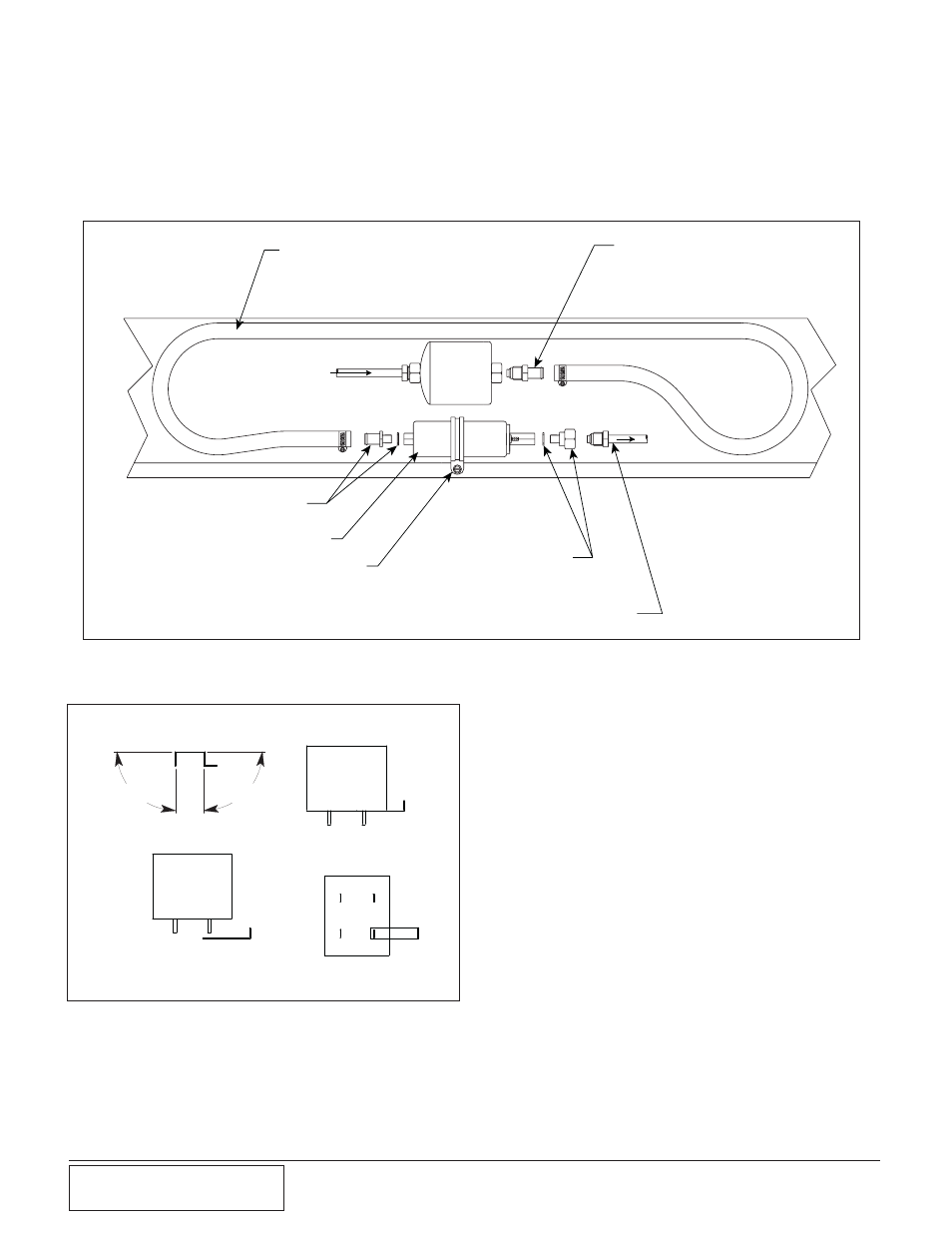

Fig. 11-c
PAXTON FUEL FILTER FITTING (7P625-031)
(MAKE SURE THAT THE SUPPLIED O-RING IS
INSTALLED AND TIGHTEN THE FITTING)
SUPPLIED FUEL PUMP
PAXTON SUPPLIED FUEL HOSE ROUTE AS
SMOOTHLY AS POSSIBLE, SECURE WITH
ZIP TIES, ATTACH BOTH ENDS TO THE AVAILABLE
BARB FITTINGS AND TIGHTEN THE CLAMPS)
STOCK FUEL LINE DISCONNECT FROM FUEL FILTER AND CONNECT TO FUEL PUMP DISCHARGE
FITTING VERIFY THAT THE FACTORY O-RING IS INSTALLED ON THE END OF THE TUBE (BEND AS
NECESSARY SO THAT THE FUEL PUMP WILL MOUNT EASILY ON THE FRAME RAIL
PAXTON FUEL PUMP FITTING
(7P625-030) (VERIFY THAT THE
COPPER WASHER IS INSTALLED
AND FITTING IS TIGHT)
SUPPLIED FUEL PUMP FITTING
(VERIFY THAT THE COPPER WASHER
IS INSTALLED AND FITTING IS TIGHT)
MARK AND DRILL A HOLE. INSTALL THE SUPPLIED
CLAMP AND SCREW TO HOLD THE FUEL PUMP
STOCK FUEL LINE FROM TANK
STOCK
FUEL
FILTER
Fig. 11-d
SIDE VIEW
BEND UP 90 ° BEND UP 90 °
FUSE TAP MODIFICATIONS
FINISHED MODIFIED
FUSE
IGNITION
RELAY
90 °
90 °
