Section 14
SUPERCHARGER BYPASS VALVE INSTALLATION
A. Connect the bypass valve to the charge air
cooler barb with the 5" piece of Ø1" hose.
B. Connect the remaining end of the bypass
valve to the barb on the inlet duct with the
supplied Ø1" x 90° molded hose. Make sure
the vacuum nipple is pointing away from the
barb on the Charge Air Cooler. (See Fig.
14-a.)
C. Install and tighten #16 hose clamps on each
connection.
D. Using the supplied 5/32" vacuum line and
TEE fitting, connect the bypass valve pres-
sure port to the manifold vacuum hose that
is connected to the fuel pressure regulator.
E. Run a 5/8" hose from the previously
installed breather assembly to the 5/8" barb
installed into the 180° cast inlet duct. (See
Fig. 3-c on page 3-1 and Fig. 14-a.

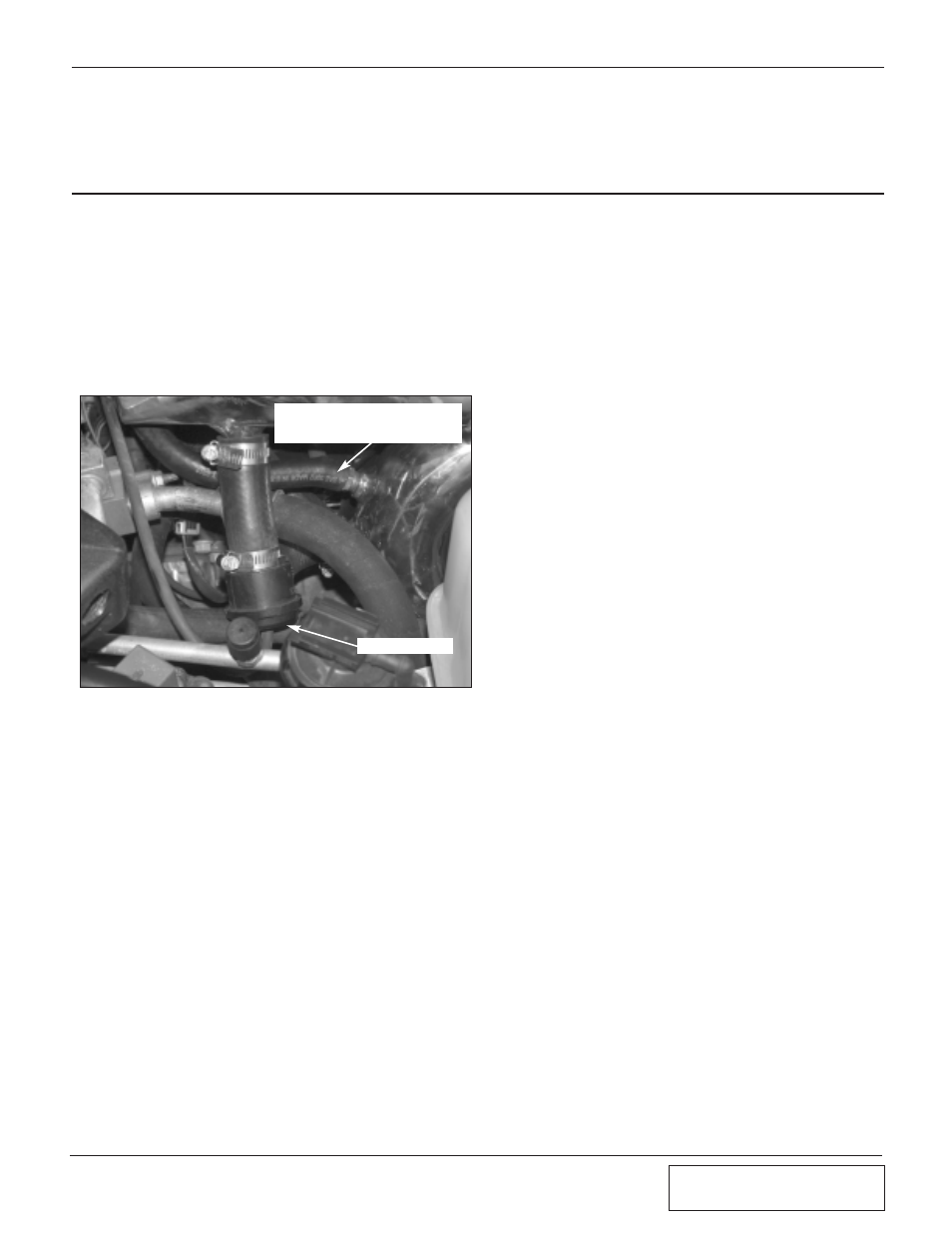

Fig. 14-a
14.1 SUPERCHARGER BYPASS VALVE INSTALLATION
VACUUM NIPPLE
5/8" HOSE THAT RUNS FROM THE
180° INLET DUCT TO THE BARB ON
THE INSTALLED BREATHER
