K. Mark, center punch and drill two holes in
the cross-member. Use the supplied 1/4"
hardware and two .928" spacers to secure
the heat exchanger/bracket assembly to the
cross member. Use the spacers between the
bracket and cross-member in order to get
correct spacing for grill clearance. (See Figs.
16-c, 16-d, 16-e.)
L. Secure the upper driver’s side mount of the
heat exchanger with the supplied bracket
and 1/4" hardware to the single screw
mounting location for the hood latch. It may
be necessary to use the suppled .70" spacer
and 35mm screw between the supplied
bracket and the hood latch for proper align-
ment. (See Fig. 16-e.)

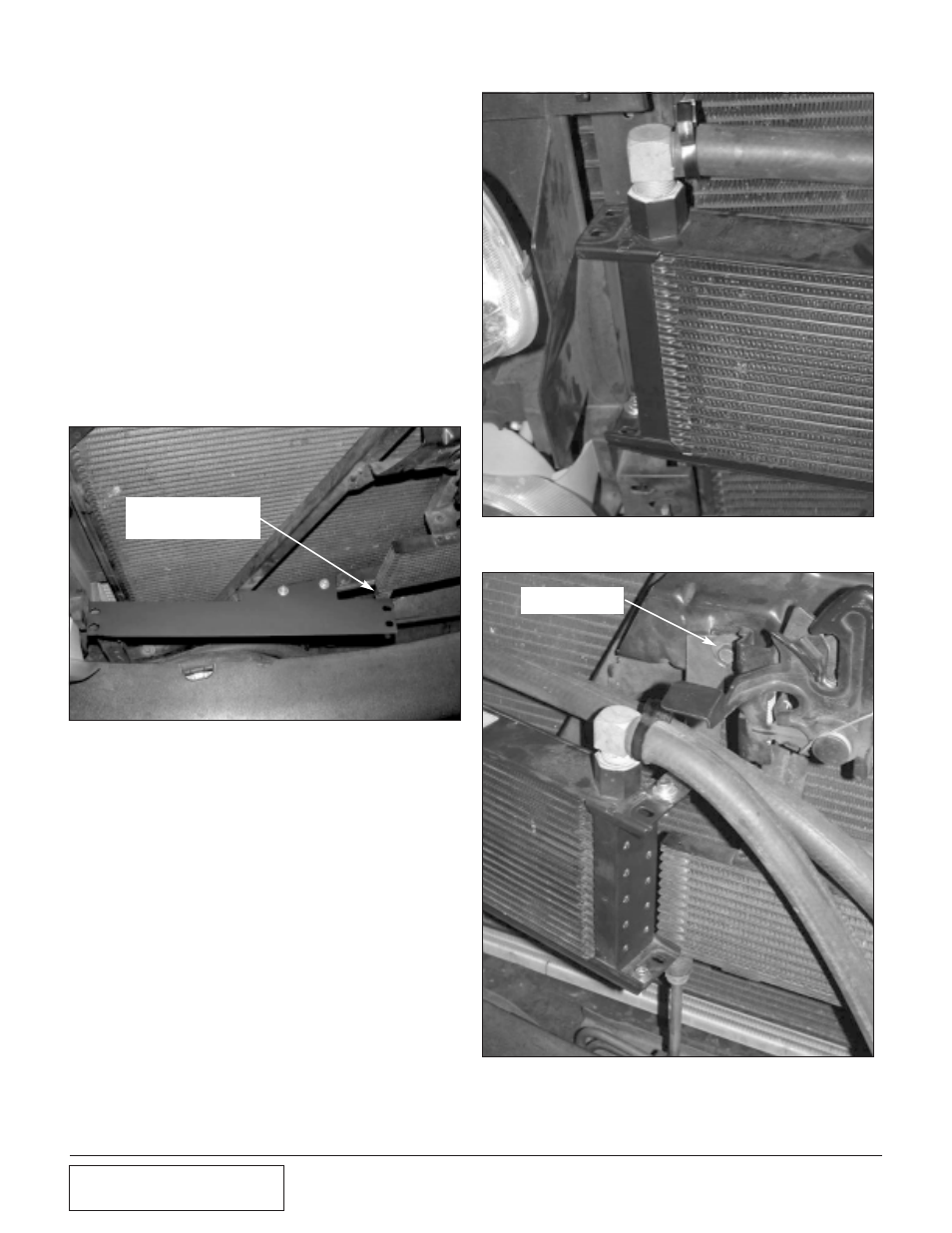

Fig. 16-c / Heat Exchanger Bracket Mounted Without
Heat Exchanger
Fig. 16-e
Fig. 16-d
KEEP CLOSE TO TRANS-
MISSION COOLER BUT
WITHOUT CONTACT
POSSIBLE SPACER
LOCATION
