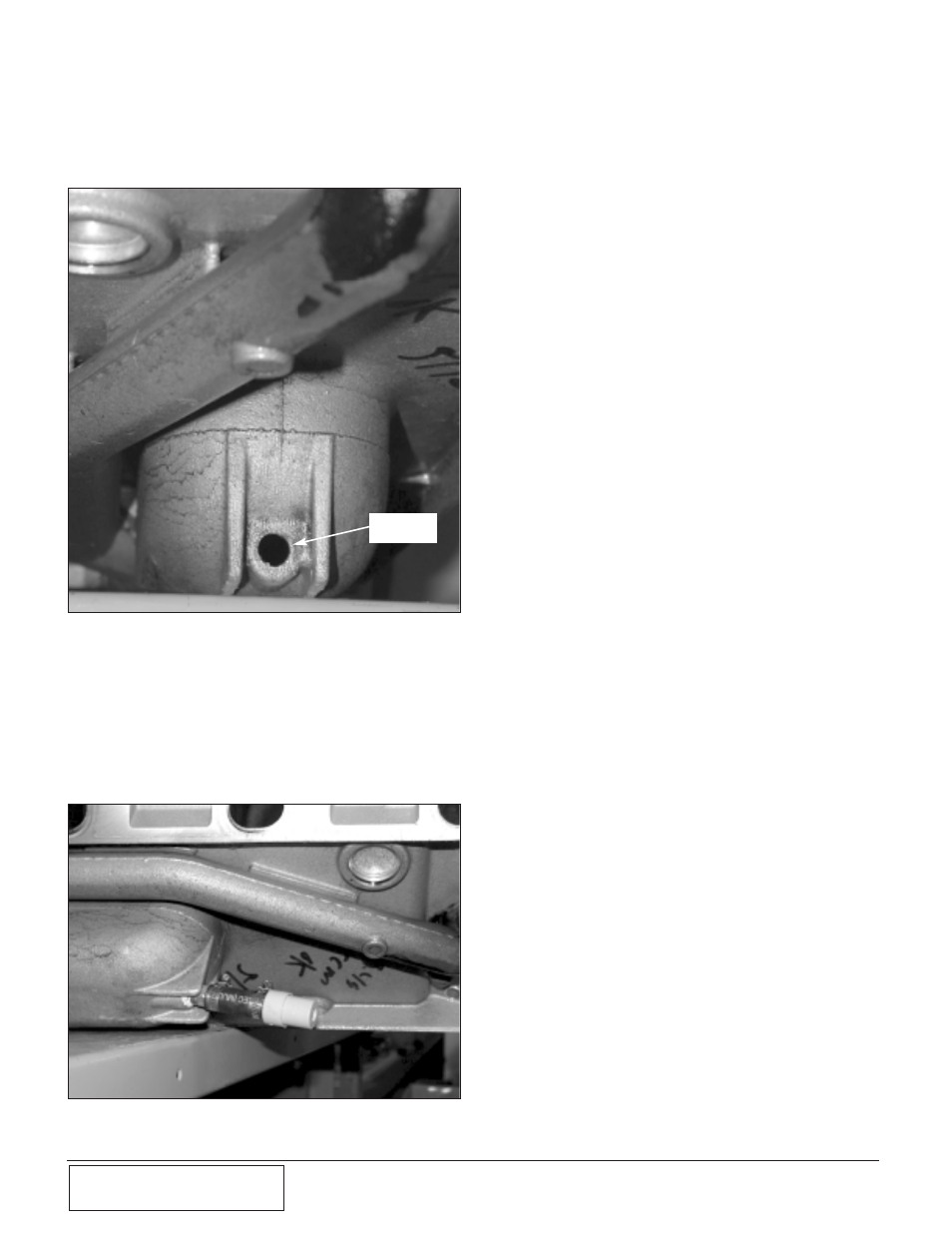

Fig. 3-d
3. Using thread sealant secure the 1/4"
NPT to 3/8" barb fitting into in the
hole.
4. Assemble the 1.5" piece of 3/8" hose to
the installed barb along with the sup-
plied PCV valve. Secure both ends of
the hose with the supplied #8 hose
clamps. (See Fig. 3-e.)
Fig. 3-e
C. Throttle Body Gasket Installation:
1.
Remove the three nuts securing the
throttle body to the intake manifold.
2. Remove the factory gasket and install
in its place, the supplied gasket.
3. Re-install the throttle body.
2. Tap the hole with a 1/4" NPT tap
approximately 1/2" deep, or until the
fitting can be started. (See Fig. 3-d.)
MODIFIED
HOLE
