Section 6
A/C LINE MODIFICATION
6.1 A/C LINE MODIFICATION
A. With the refrigerant removed from the A/C
system, remove both ends of the air condi-
tioning line. Note that the straight end con-
nects to the compressor while the bent line
mounts to an A/C connection port located
near the passenger side firewall. (See Fig.
6-a.)

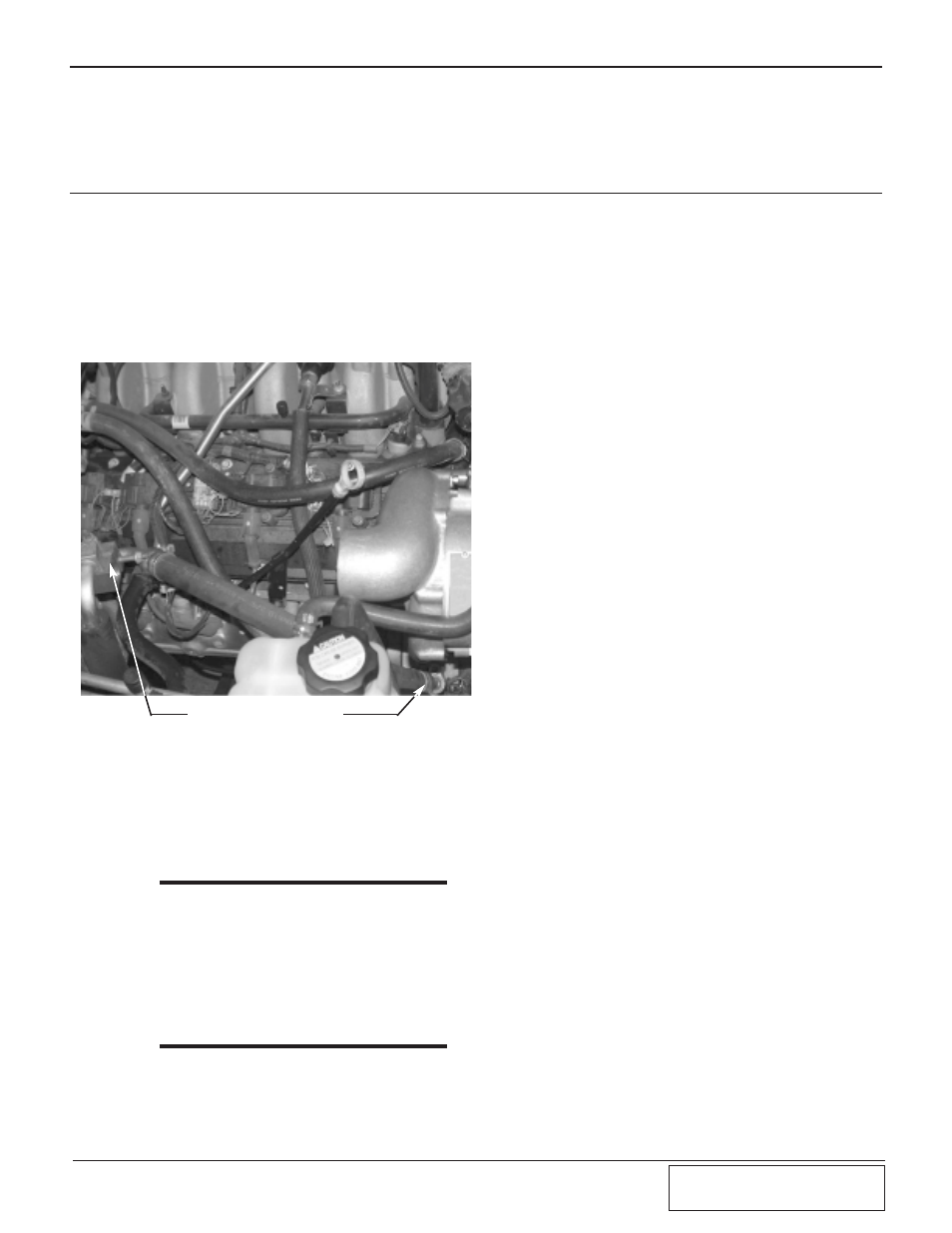

Fig. 6-a
B. You will need to take the line and re-mount
it back into the vehcle with the ends in the
opposite ports in which they were originally
connected.
***NOTE***
Re-connect the bent end into the A/C com-
pressor first, and it will be necessary to curl
the rubber section of the line toward the inner
fender well and then connect the straight sec-
tion to the upper A/C connection port. Slight
bending of the aluminum sections may be
necessary to obtain the correct hose position-
ing. (See Figs. 6-b, 6-c,) Refer to Fig. 8-a for a
photo of the bent section mounted to the A/C
compressor .
TWO ENDS OF THE A/C LINE
TO BE REMOVED
