5. Hardware:

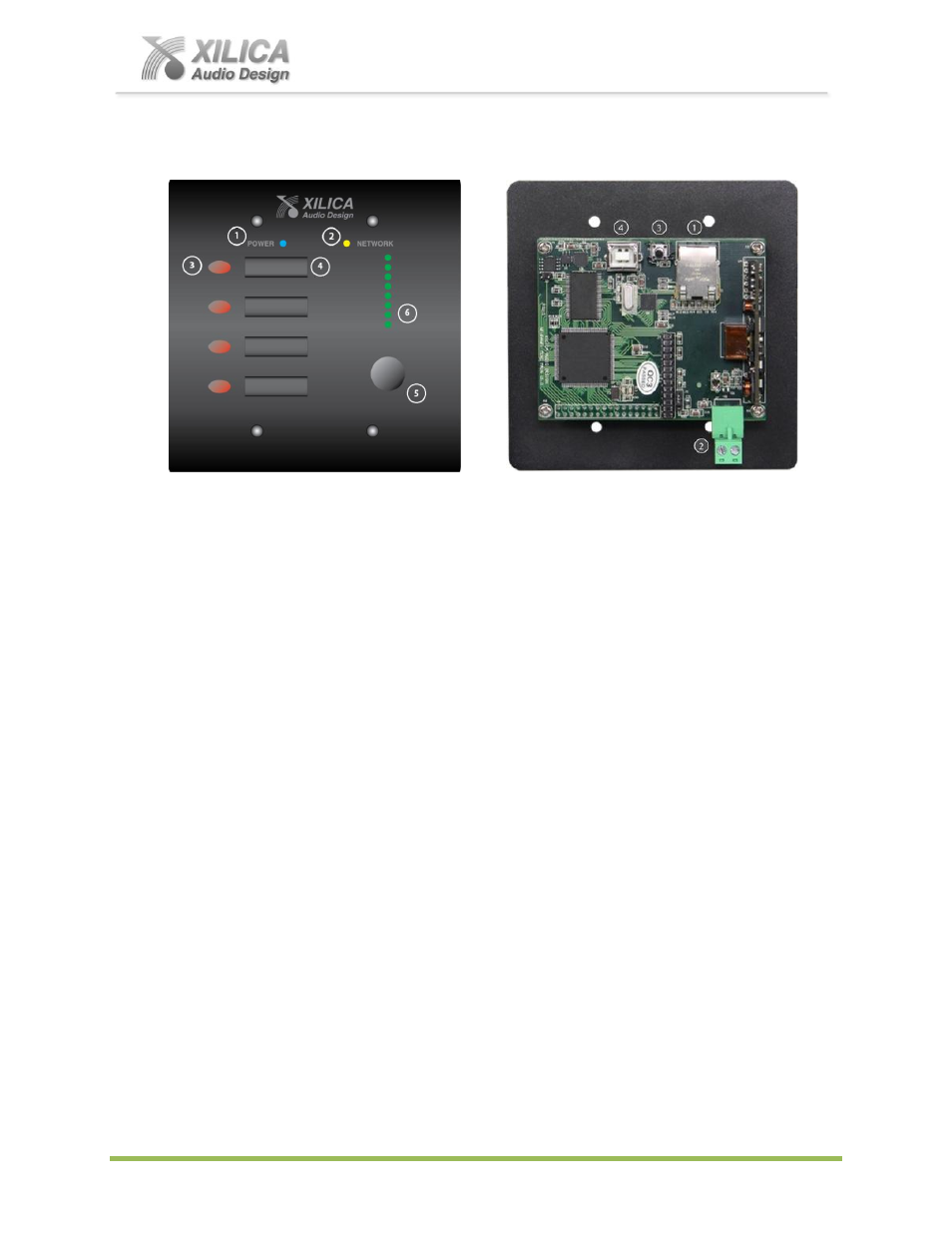

Front Panel
1. Power Status LED
A Power Status LED will light to notify you that the Mini device is connected to a power source.
2. Network Status LED
When the Mini device has an Ethernet cable / network cable connected the Network status LED on the front of the
Mini device will light - once it initializes. If there is no Ethernet / network cable attached it remains off.
3. Programmable, Selectable On/Off Push Button
Program processor on/off control functions into any Mini devices programmable, selectable on/off push button using
the easy to use drag & drop configuration form within the processors NeuConsole software.
4. Label Slot
Place supplied or unique label in label slot and cover with included protective plastic cover.
5. Programmable Level Control
Program a processor level control function into any Mini devices programmable level control using the easy to use
drag & drop configuration from within the processors NeuConsole software.
6. L evel Indicator LED’s
Rear Panel
1. Ethernet Connector
Mini device Ethernet / network connection (and power if using POE power source).
2. Power Supply Connector
Only used if powering the Mini device with the included external power supply (recommend powering using a POE
router, switch or router/switch combo).
3. IP Reset Button
Used to reset the Mini devices network settings as described later in this quick start guide.
4. USB Connector
Not used (Xilica use only).
