Axiom ® User's Guide Version 1.8  May 2015
1. Click on and select [Speechmap] from either the [Test box] or [On-ear] menus.
2. Click on the [RECD] bar to access the RECD setup poster.
3. Click on the [RECD] list button and select [Measure] from the menu.
4. Select the RECD coupling method that will be used on the ear. Audioscan software supports both foam
eartips and personal earmold, however this choice must be made prior to measurement. Click on to
continue.
5. If RECD transducer has not been calibrated or the measurement interval has been exceeded, go to Calibrate
RECD transducer. If a valid RECD transducer calibration exists, then click on [Measure real ear].

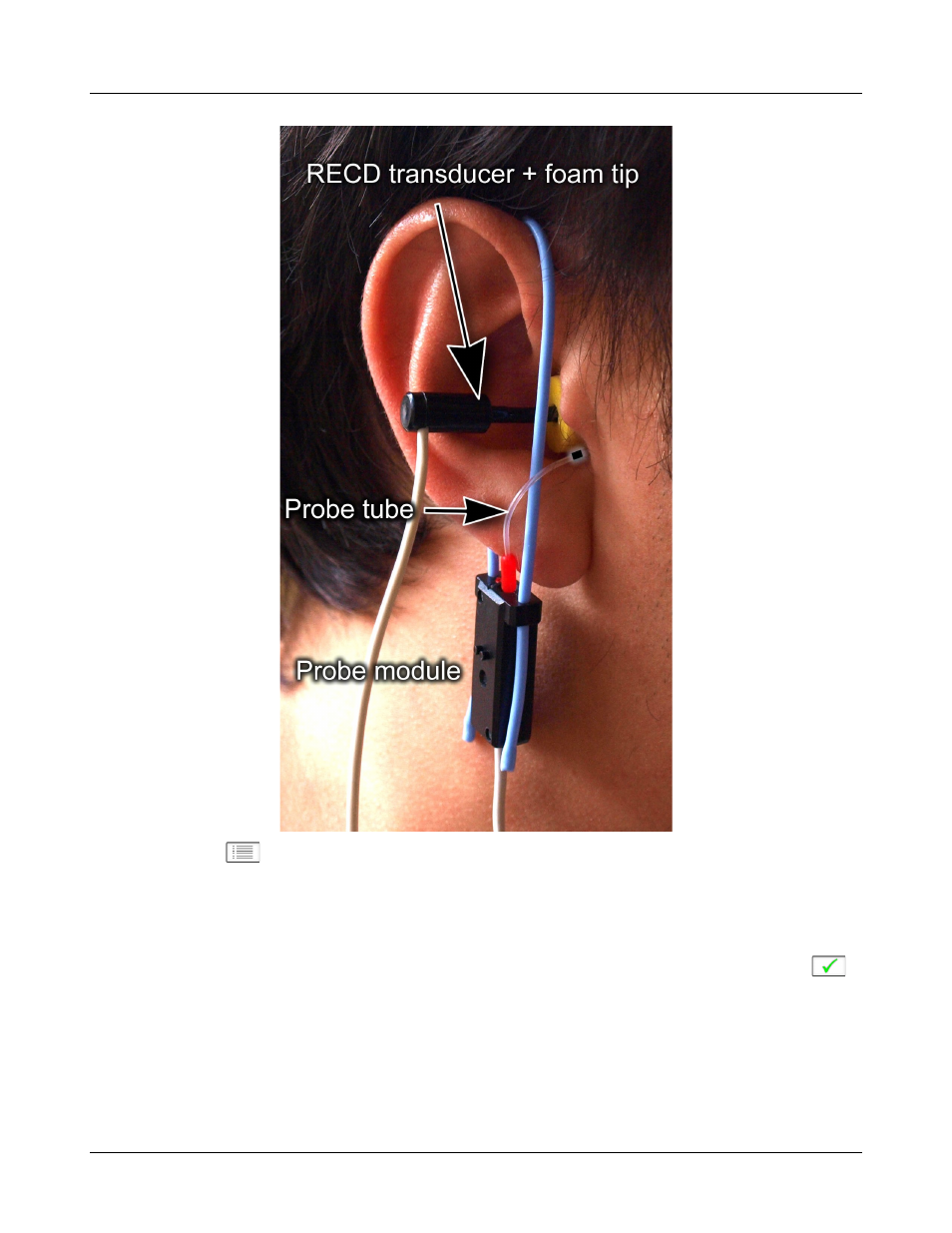

6. Refer to Positioning the probe tube and insert the probe tube into the ear canal to within 2 - 5 mm of the
eardrum.
66
