18

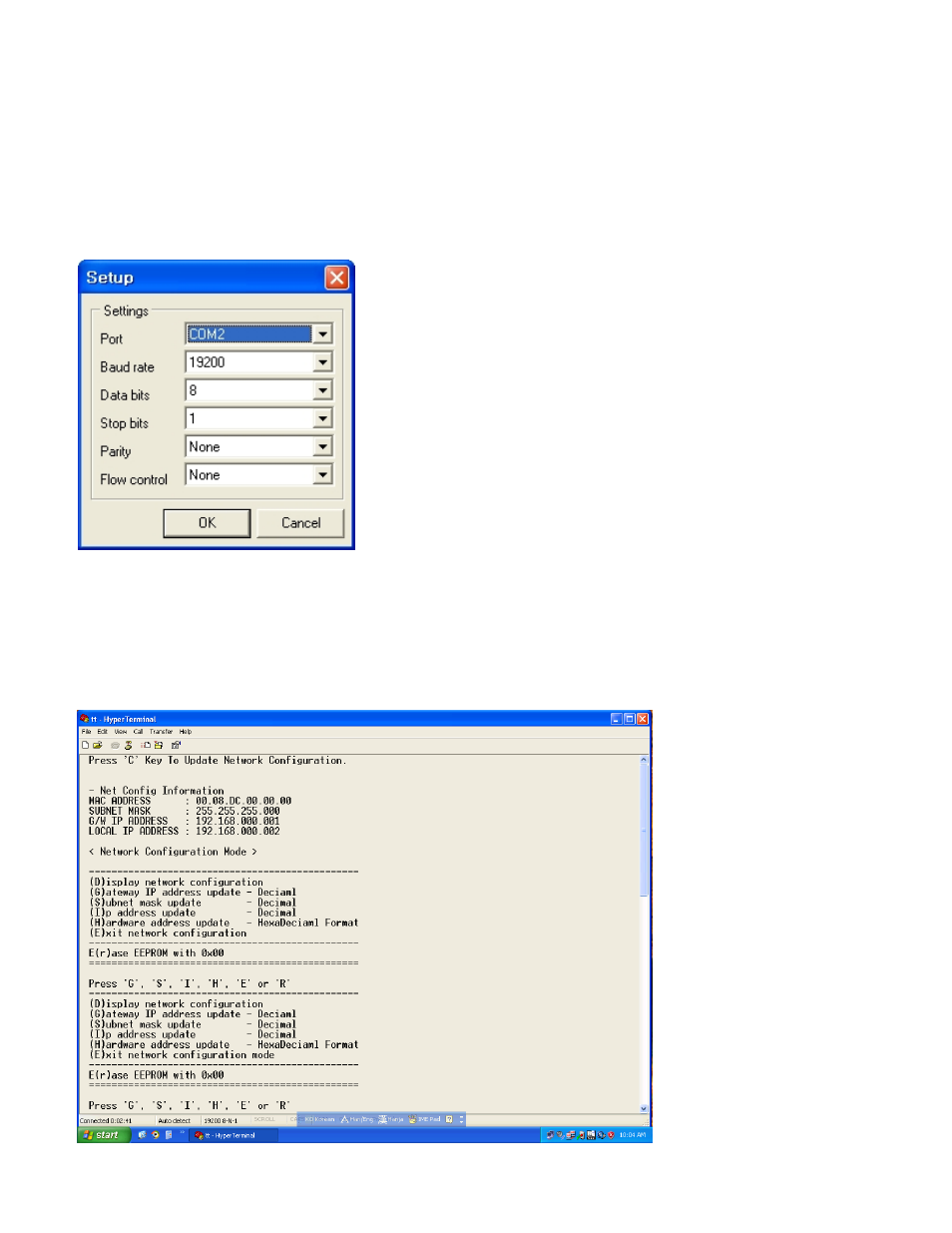

7 LAN (TCP/IP) communication setting
In order to control the matrix through LAN, internet IP address should be set first.
Set up as follows:

Execute MultiTerm.exe or hyper terminal program

Communication setting
After setting as above, please connect communication cable via RS232 and then turn on power switch
Press ‘C’ Key on keyboard to open the network IP set up screen (1 or 2 second after matrix turned on)
If it does not show the Network Configuration Mode as shown below, please turn it off and on again.
If you do not press ‘C’ key or press ‘ESC’ key, it runs with previously set-up IP.
