Slave Speaker/Follow-Thru Operation

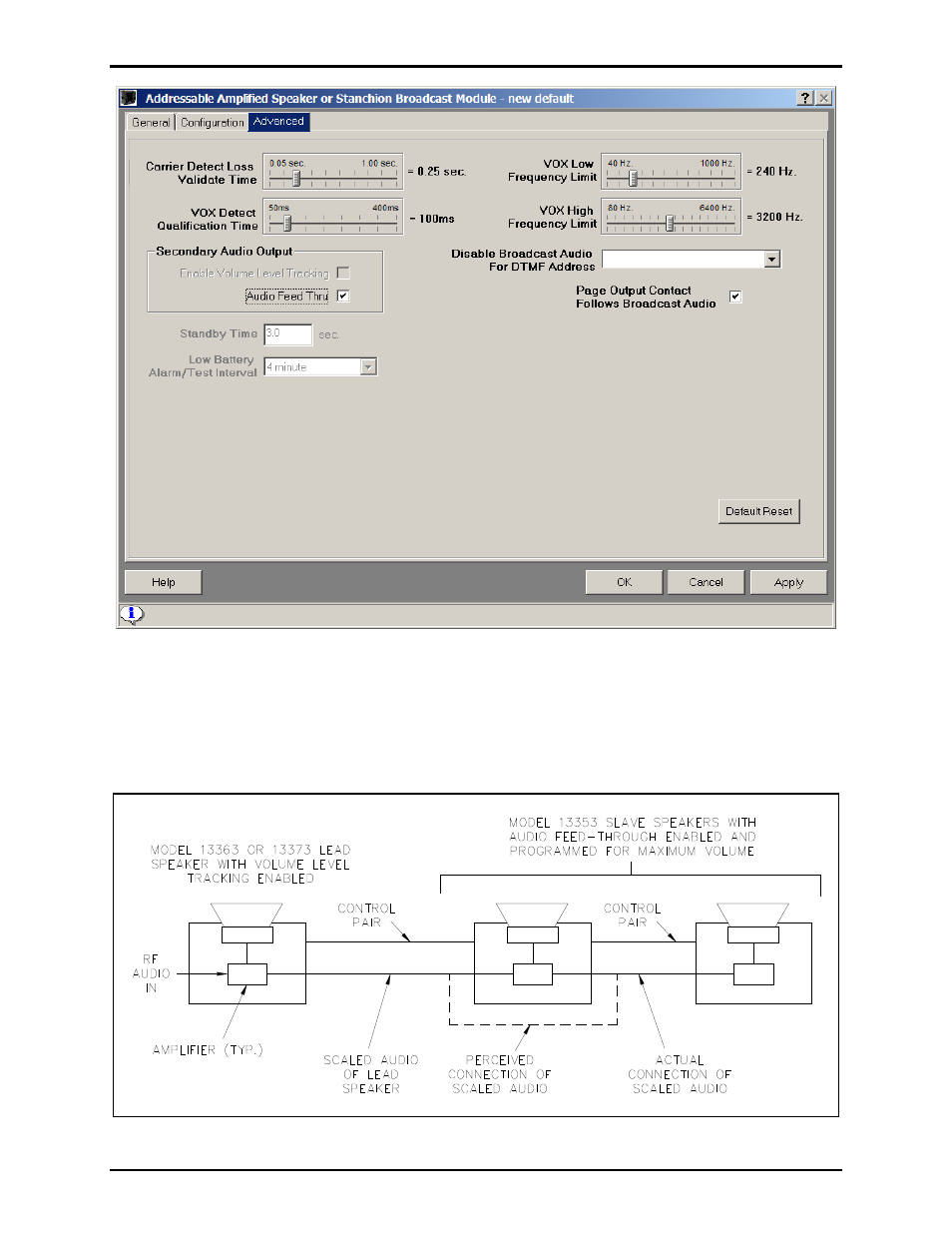

Selecting the Audio Feed Thru box in a Slave speaker allows the scaled audio of the Lead unit’s
speaker to be passed through to each connected Slave speaker, keeping all speakers within the grouping at
the same audio level. Even though this audio is connected from one speaker to the next, it is perceived
that the audio from the Lead speaker is sent to each Slave speaker directly. This concept is depicted in
Figure 4.
Figure 4.
