MDE-5075 NR-H Nozzle Reader (M09677B015) Kit Installation Instructions · January 2013
Page 19
Installing the NR-H Nozzle Reader (M09677B015) Kit
22
Remove a tie wrap from one of the RT slots and replace it with a hose clamp as shown in
. Leave the tie wrap in the other slot in place for now.

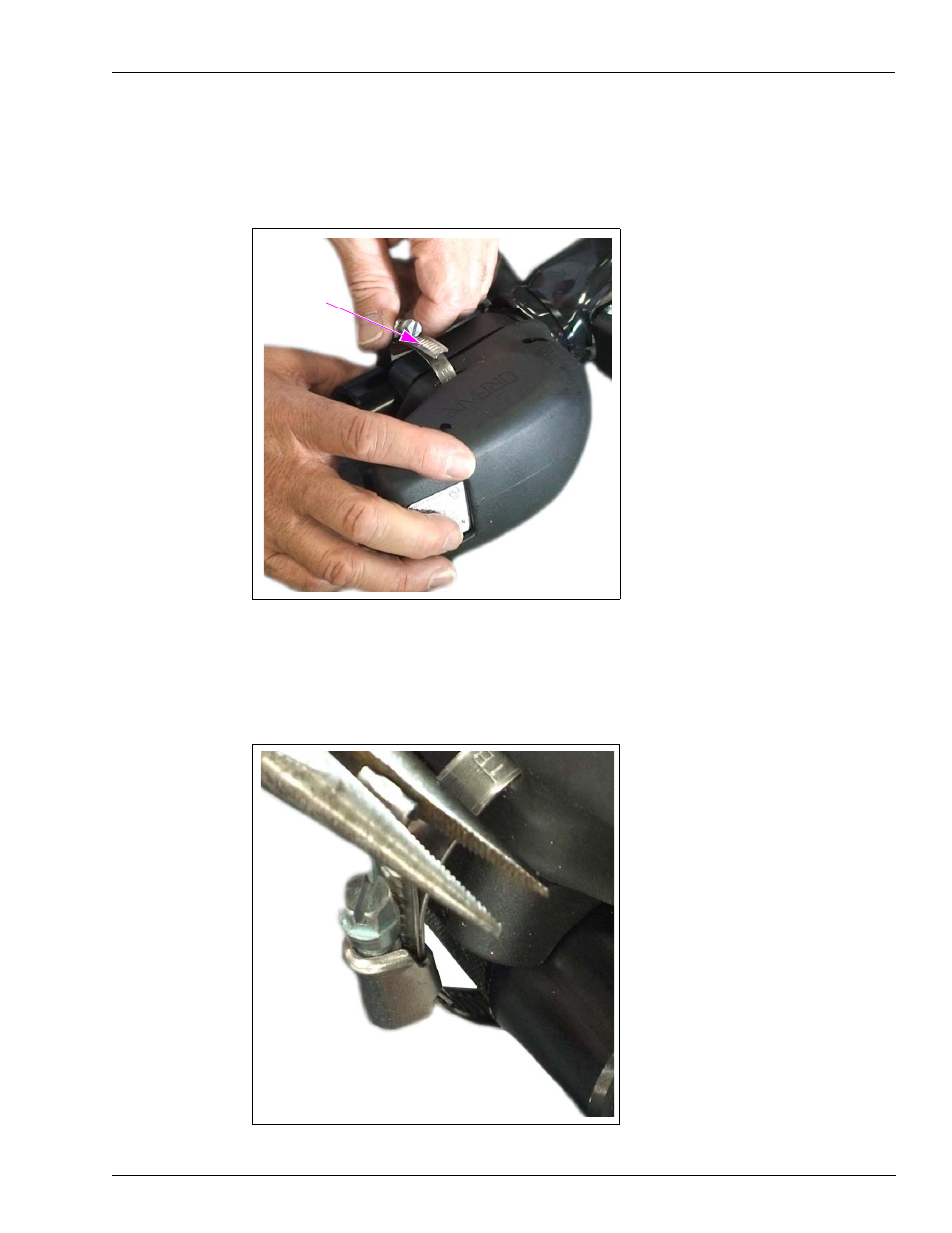

Figure 25: Installing Hose Clamp
23
Bend under the tip of the hose clamp as shown in
. This will prevent the tip from
snagging as it double-backs into the RT slot.
Figure 26: Bending Hose Clamp Tip
Hose Clamp
