10
ENGLISH

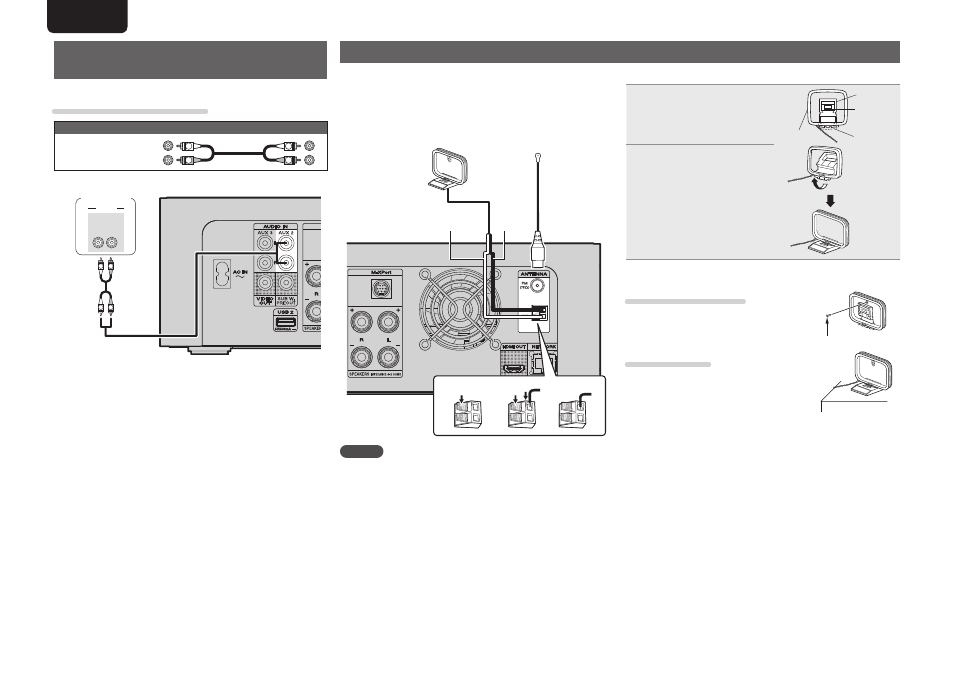

Connecting an antenna
• Connect the FM antenna or AM loop antenna supplied with the unit
to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal
(vpage 22 “Listening to FM/AM broadcasts”), fix the antenna with
tape in a position where the noise level becomes minimal.
w e q
AM loop antenna
(Supplied)
FM indoor antenna
(Supplied)
White Black
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. For details, inquire at the retail store
where you purchased the unit.
n AM loop antenna assembly
1 Put the stand section
through the bottom of the
loop antenna from the
rear and bend it forward. Loop
antenna
Stand
Square
hole
Projecting
part
2 Insert the projecting part
into the square hole in the
stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown upper to assemble.
Connecting a set-top box (Satellite
tuner/Cable TV)
You can watch satellite or cable TV.
Cables used for connections
Audio cable (sold separately)
Audio cable
(White)
(Red) R
L
R
L
R L
R L
R L
OUT
AUDIO
AUDIO
Satellite Tuner/
Cable TV
