ASSEMBLY

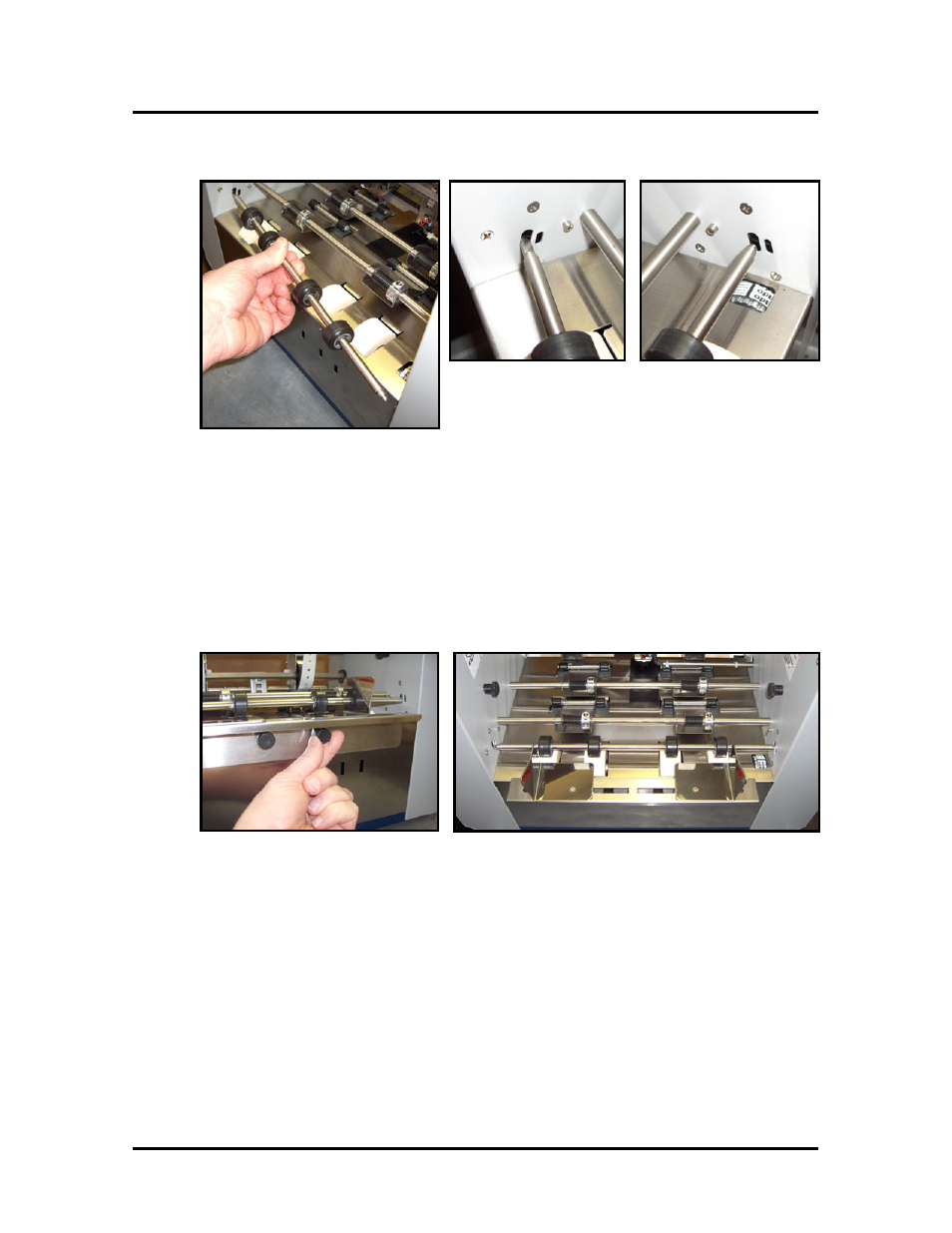

4. Install the In-Line Roller Assembly.
Install the flat end of the shaft first and then insert the pointed end of the shaft.
Important! Make sure the shaft ends are inserted under the spring wire (located
behind the sidewall). When you insert the pointed end of the shaft, the spring
wire will lock the shaft in place.
5. Install the In-Line Guide Assembly.
The in-line guide assembly can be attached to a number of mounting locations,
along the front wall of the tabber; using the two thumb screws and washers; as
shown above.
When dual tabbing; the guide assembly should be installed so it is centered on
the unit.
When single tabbing; the guide assembly can be offset to the right, to better
accommodate the media feeding location.
