48
TASCAM DR-100MKII
8 – Settings and Information

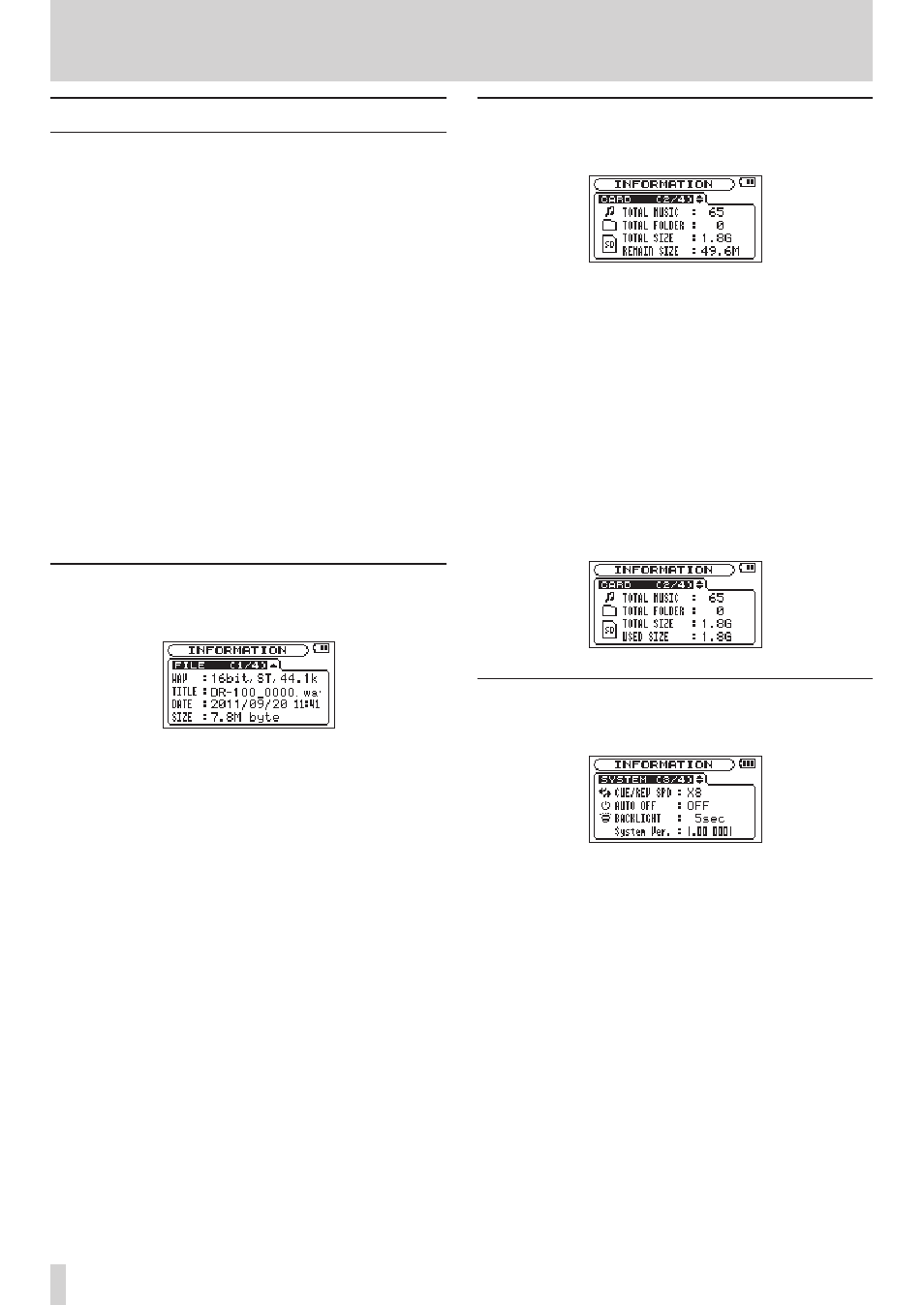

Using the INFORMATION screens
Various information about this unit can be checked on
these screens. Follow these procedures to open the
INFORMATION
screen.
1 Press the MENU button to open the
MENU
screen.
2 Use the wheel to select
INFORMATION
, and press the
ENTER/MARK button.
The
INFORMATION
screen contains the following four pages.
Use the wheel to move through the pages.
File information page (FILE)
Shows information about the currently loaded file.
Card information page (CARD)
Shows the use status of the currently inserted SD card.
System information page (SYSTEM)
Shows the unit’s system setting information and firmware
version.
Power information page (BATTERY)
Shows usage information about the batteries installed in
the recorder.
File information page (FILE)
The
FILE
page shows information about the currently
selected file.
WAV/MP3:
Shows the audio file type.
For WAV files, bit length, stereo/mono, and sampling
frequency (Hz) also appear.
For MP3 files, the bit rate (kbps), CBR (constant bit rate) or
VBR (variable bit rate) type, and sampling frequency (Hz)
also appear.
TITLE:
Shows the file name. If an MP3 file has ID3 tag title
information that information appears.
DATE:
Date of file creation
SIZE:
File size
Card information page (CARD)
The
CARD
page shows the status of the currently inserted
SD card.
TOTAL MUSIC:
Shows the number of playable files contained by the Music
Folder.
TOTAL FOLDER:
Shows the total number of folders in the Music Folder.
TOTAL SIZE:
Shows the total SD card capacity.
REMAIN SIZE/USED SIZE:
Shows the amount of unused/used capacity on the SD
card.
Press the . or / button to switch between
REMAIN
SIZE
and
USED SIZE
.
System information page (SYSTEM)
The
SYSTEM
page shows information about the DR-
100MKII’s system settings and firmware version.
CUE/REV SPD:
Shows the forward and backward search speed.
AUTO OFF:
Shows the automatic power OFF setting.
BACKLIGHT:
Shows the automatic backlight OFF setting.
System Ver.:
Shows the system firmware version.
