Thinklogical ImageEvolution X3 Manual User Manual
Page 9
Advertising
Revision D
9
June 2011
3.3

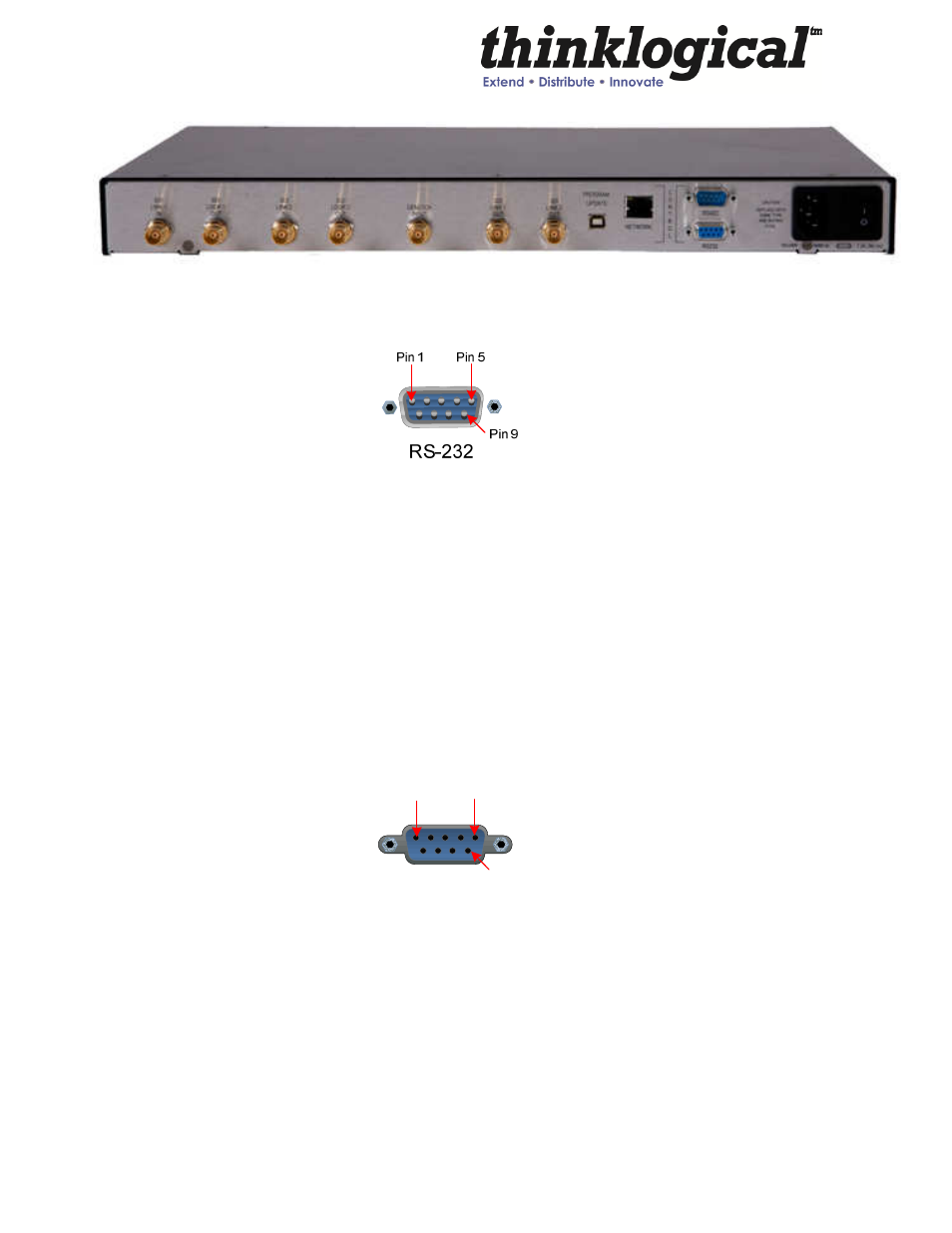

RS-232 Pin Out
Pin 1 DCD_OUT
Pin 2 RX_ IN
Pin 3 TX_OUT
Pin 4 DTR_IN
Pin 5 GND
Pin 6 DSR_OUT
Pin 7 RTS_IN
Pin 8 CTS_OUT
Pin 9 RI_OUT
3.4
RS-422 Pin Out
RS-422
Pin 1
Pin 5
Pin 9
Pin 1 GND
Pin 2 RX +
Pin 3 TX-
Pin 4 GND
Pin 5 NC
Pin 6 GND
Pin 7 RX-
Pin 8 TX+
Pin 9 GND
