Grass Valley DAP-1781 - Manual (Page 58)

GUIDE TO INSTALLATION AND OPERATION
58 | DAP-1781
4.15 Options
Three options are available for the DAP-1781:
• UP/DOWN MIXING
(DAP-1781-OPT-UDM)
• DYNAMIC PROCESSING
(DAP-1781-OPT-DP)
• LOUDNESS MANAGEMENT
(DAP-1781-OPT-LM)

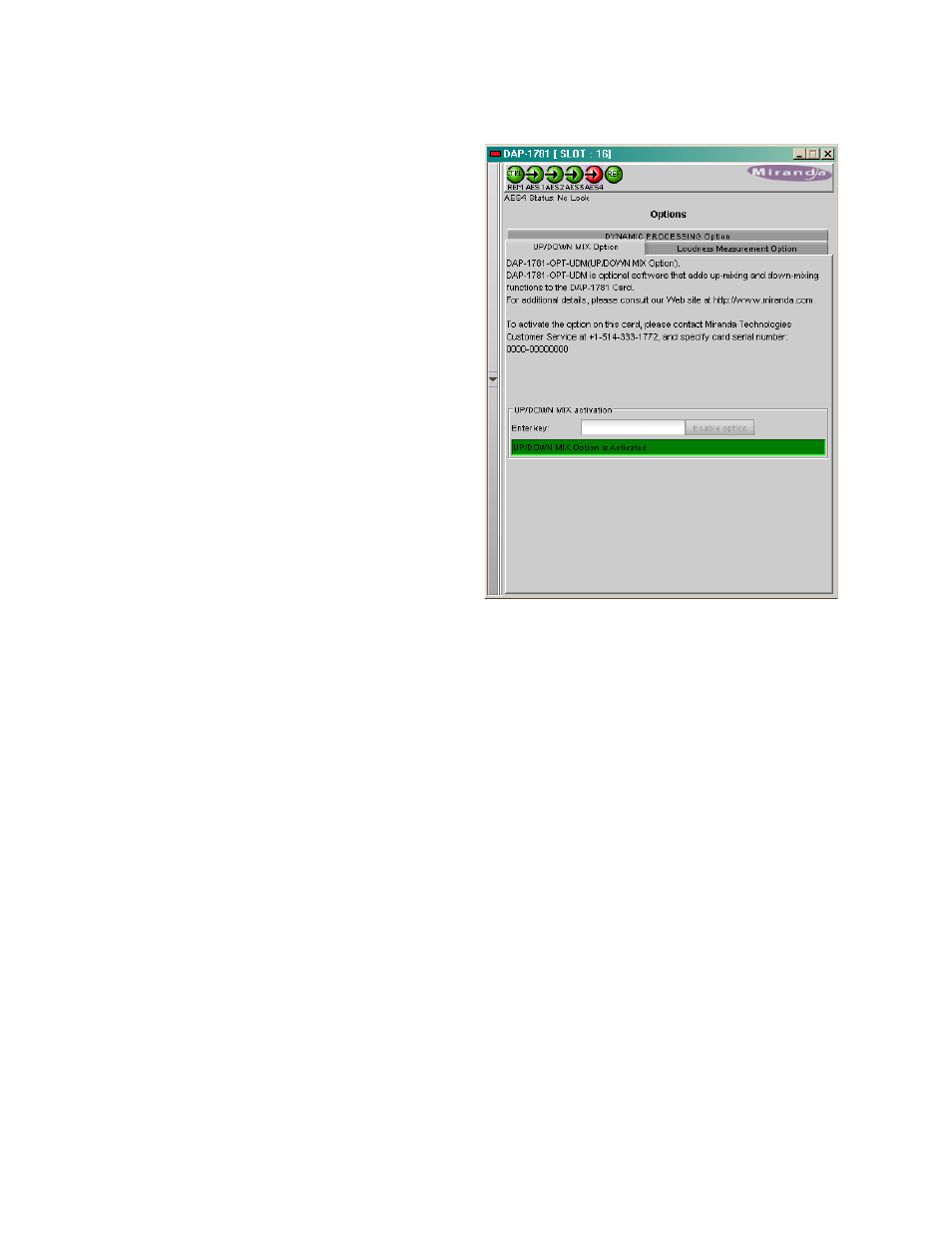

Activate either option on the DAP-1781 card by
entering the activation key into the Enter Key data
box in its tab, and clicking the Enable Option
button.
• The current status of the option is shown in
the status box below the Enter Key data box.
See the text message at the top of the tab for
information about purchasing an option and
obtaining the activation key.
The optional hardware modules are now always
enabled and do not need activation keys:
• AC-3 & DOLBY-E Decoder Module
(MOD-DOLBY-DEC-2)
• DOLBY-E Encoder Module
(MOD-DOLBY-ENC-E)
• DOLBY DIGITAL (AC-3) Encoder Module
(MOD-DOLBY-ENC-D-2)
• upMAX TM
Upmixer Module
(MOD-LA-DUP-701)
