Sensor to Camera

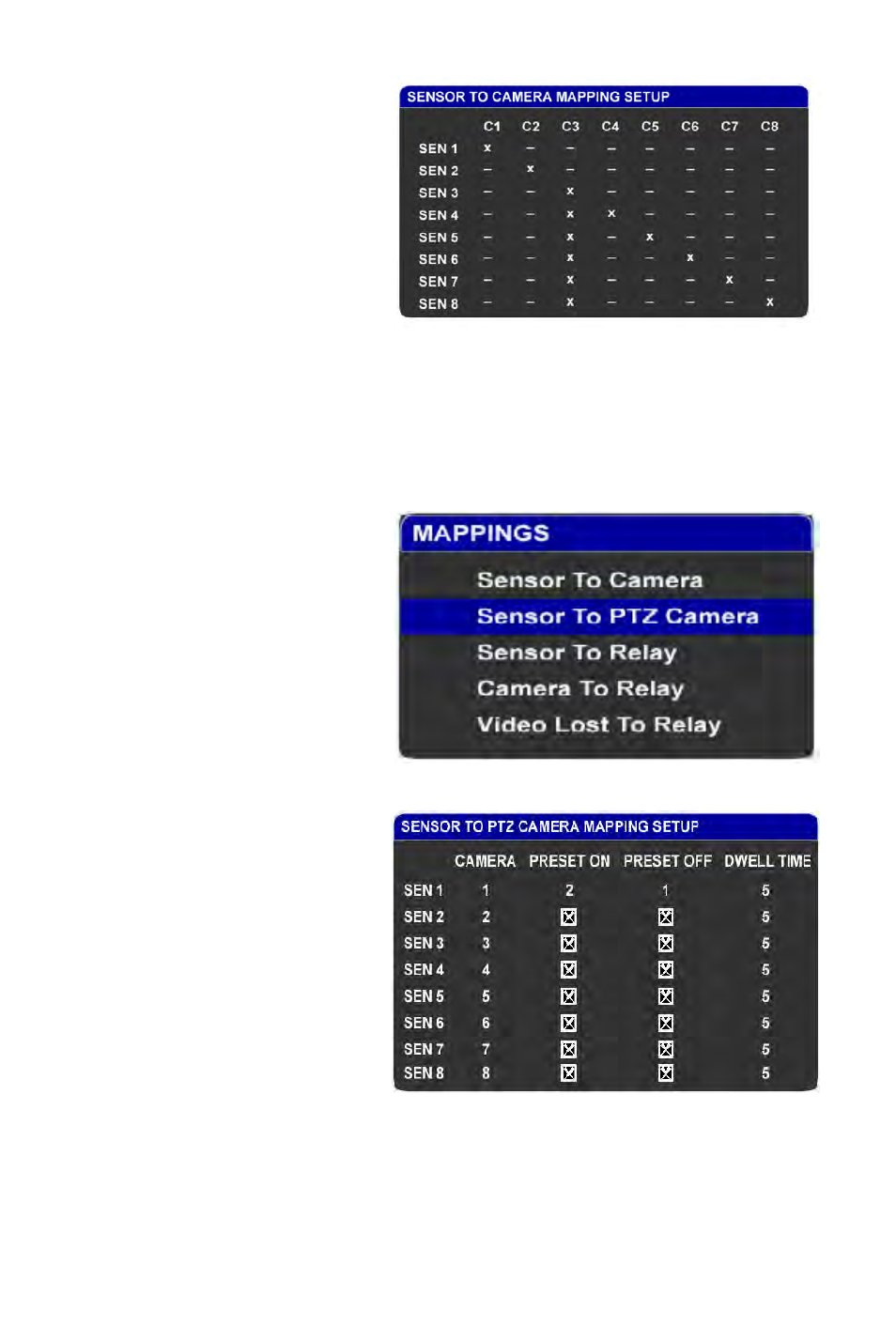

This mapping allows you to match sensors
and cameras.
Procedure Using the Remote Controller
or Control Panel:
1. In SETUP, select
Mappings->Sensor To Camera.
2.
In Sensor To Camera Setup, use [UP], [DOWN], [LEFT] or [RIGHT] to navigate through the menu.
3.
Use [ENTER], [SELECT], [+] or [-] to change the values. An “x” means mapped. Note that all
changes you make are always saved.
4.
When you are done, press [SETUP] or [BACK].
Note: You can map more than 1 camera per sensor. Conversely, you can map more than 1 sensor per camera.
Sensor to PTZ
This mapping allows you to match sensors to
PTZ cameras. If a sensor is matched with a
PTZ camera, then when the sensor is
triggered, the PTZ camera will move to the
preset defined under Preset On and once the
sensor is de-activated, the PTZ camera will
move to preset defined under Preset Off. The
Dwell Time indicates the length of time from
when the PTZ camera moves from Present
On to Preset Off
Procedure Using the Remote Controller or
Control Panel:
1. In SETUP, select
Mappings->Sensor To PTZ Camera.
2.
In Sensor To PTZ Camera Setup,
use [UP], [DOWN], [LEFT] or [RIGHT] to
navigate through the menu.
3.
Use [ENTER], [SELECT], [+] or [-] to
change the values. There are 9 possible presets. (See
SETUP->PTZ->Camera.) An “x” means there is no
preset selected. Note that all changes you make are
always saved.
4.
When you are done, press [SETUP] or [BACK].
NOTE: Dwell settings can be adjusted from 5 to 90 secs. Please ensure that sensors are enabled; refer to page 49.
