Camera to Relay
This mapping allows you to match cameras
and relays.

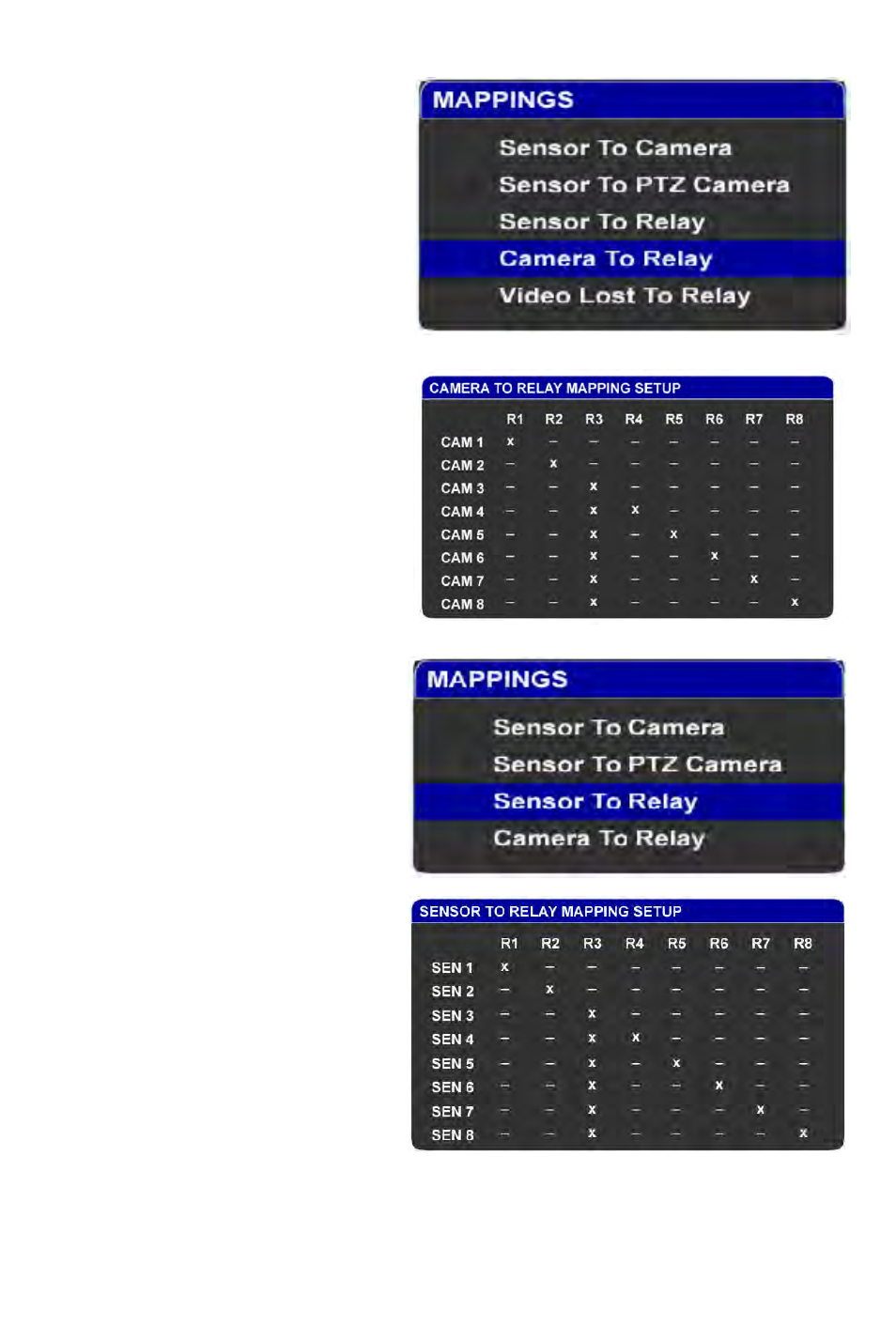

Procedure Using the Remote Controller
or Control Panel:
1. In SETUP, select
Mappings->Camera To Relay.
2. In Camera To Relay Setup, use
[UP], [DOWN], [LEFT] or [RIGHT] to navi-
gate through the menu.
3. Use [ENTER], [SELECT], [+] or
[-] to change the values. An “x” means
mapped. Note that all changes you make
are always saved.
4. When you are done, press
[SETUP] or [BACK].
Note: You can map more than 1 camera per relay
Conversely, you can map more than 1 relay per
camera.
Sensor to Relay
This mapping allows you to select which
relay(s) will be activated when selected
sensor is triggered.
Procedure Using the Remote Controller
or Control Panel:
1. In SETUP, select
Mappings->Sensor To Relay.
2. In Sensor To Relay Setup, use
[UP], [DOWN], [LEFT] or [RIGHT] to navi-
gate through the menu.
3. Use [ENTER], [SELECT], [+] or
[-] to change the values. An “x” means
mapped. Note that all changes you make
are always saved.
4. When you are done, press
[SETUP] or [BACK].
Note: You can map more than 1 sensor per relay. Conversely, you can map more than 1 relay per sensor.
