RATIO
Adjusts the release time of the compressor.
Range: 1.00 – ∞
KNEE
Selects the knee type of the compressor.
SIDE CHAIN Q
Adjusts the band width of the side chain filter.
Range: 0.50 – 16.00
SIDE CHAIN F
Adjusts the center frequency of the side chain filter.
Range: 20.0 Hz – 20.0 kHz
SIDE CHAIN G
Adjusts the gain of the side chain filter.
Range: -18.0 dB – +18.0 dB
COMPRESSOR On/Off
Turns the compressor on (lit) and off (unlit).
Compressor Curve
This graph indicates the approximate compressor
response. The vertical axis indicates the output signal
level, and the horizontal axis indicates the input signal
level.
Gain Reduction Meter
Indicates the gain reduction.
DRIVE
Adjusts the degree to which the compressor is applied.
The higher the value, the greater the effect.
Range: 0.00 – 10.00
Equalizer

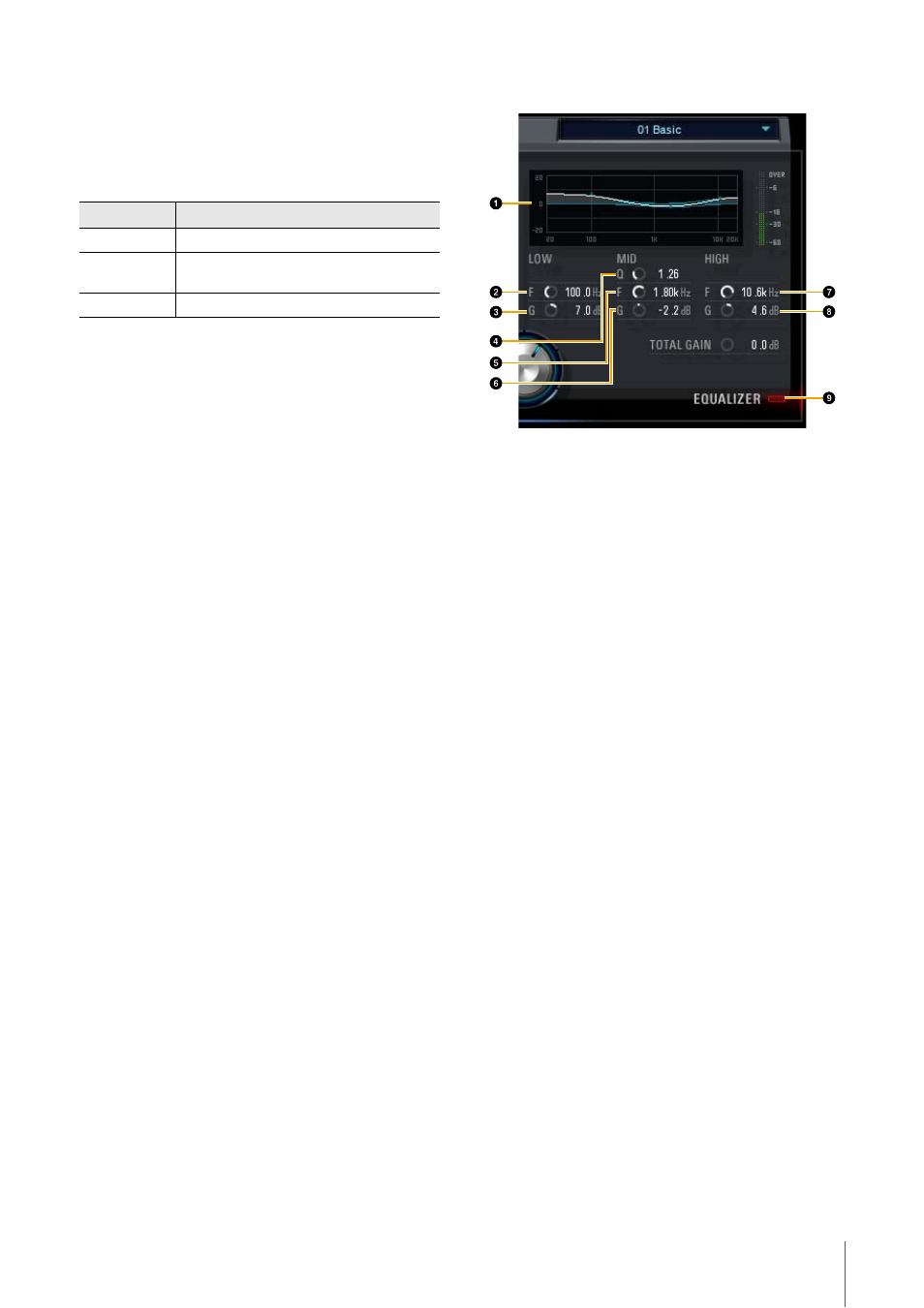

Equalizer Curve
This graph indicates the characteristics of the 3-band
equalizer. The vertical axis indicates the gain, and the
horizontal axis indicates the frequency. You can adjust
LOW, MID, and HIGH by dragging each handle in the
graph.
LOW F
Adjusts the center frequency of the low band.
Range: 20.0 Hz – 1.00 kHz
LOW G
Adjusts the band width of the middle band.
Range: -18.0 dB – +18.0 dB
MID Q
Adjusts the band width of the middle band.
Range: 0.50 – 16.00
MID F
Adjusts the center frequency of the middle band.
Range: 20.0 Hz – 20.0 kHz
MID G
Adjusts the gain of the middle band.
Range: -18.0 dB – +18.0 dB
HIGH F
Adjusts the center frequency of the high band.
Range: 500.0 Hz – 20.0 kHz
HIGH G
Adjusts the gain of the high band.
Range: -18.0 dB – +18.0 dB
EQUALIZER On/Off
Turns the equalizer on (lit) and off (unlit).
Settings Description
SOFT Produces the most gradual change.
MEDIUM Results in a setting midway between SOFT
and HARD.
HARD Produces the sharpest change.
