Main Window

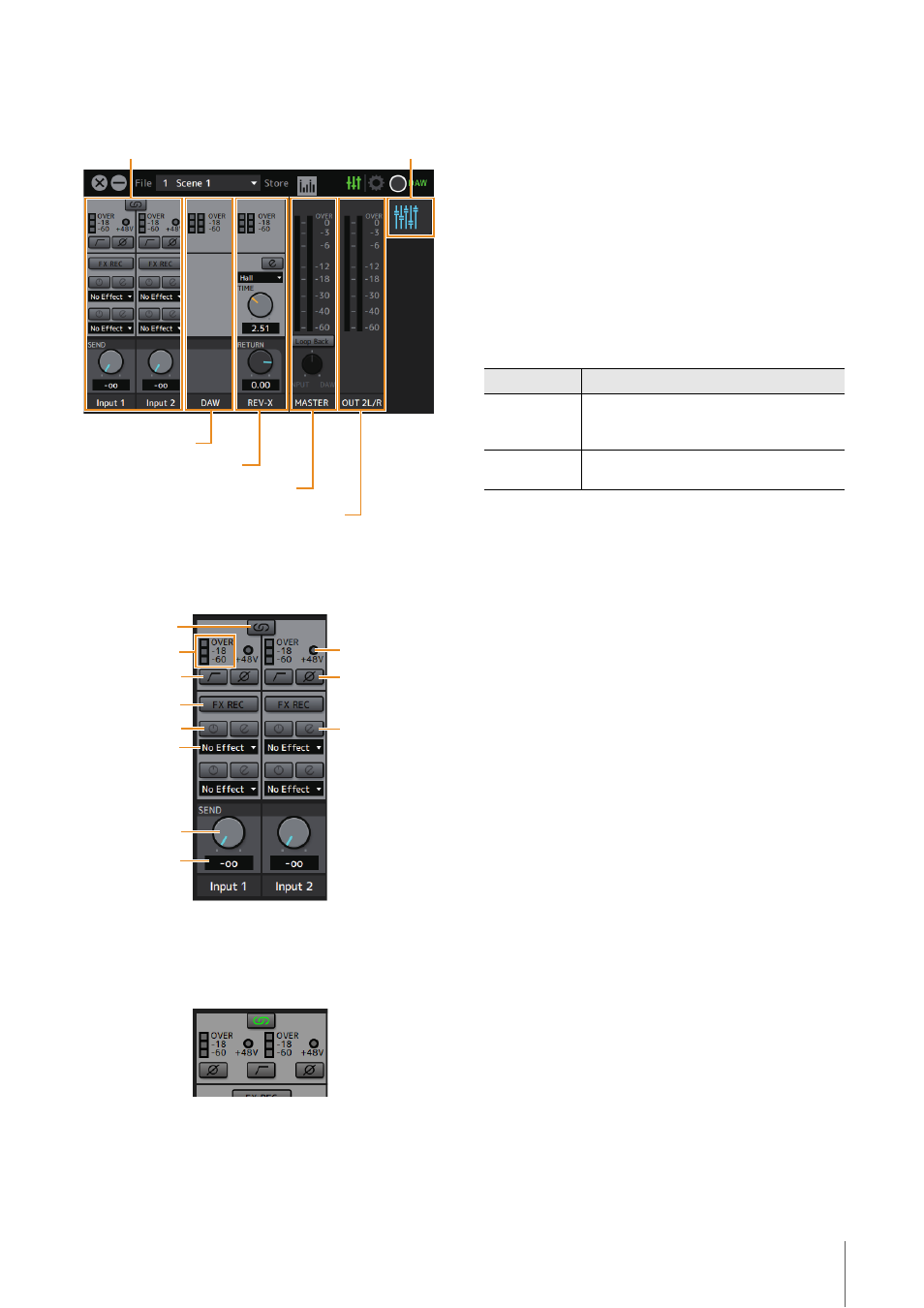

This window is for configuring the entire signal flow.
Channel Area
This is the area for configuring the input channel settings.
Channel Link
Turns on (lit) and off (unlit) the channel link function of two
adjacent channels. When this is on, two mono channels
will become one stereo channel.
Level Meter
Indicates the signal level.
+48V
Indicates the on/off status of the phantom power function
of the device.
High Pass Filter
Turns on (lit) and off (unlit) the high pass filter. To select
the cutoff frequency of the high pass filter, use the “Setup
Window” (
) in the section “dspMixFx UR-C.”
Phase
Turns on (lit) and off (unlit) the phase inversion of the
signal.
FX REC
Turn the FX REC (effect recording) on and off.
Effect On/Off
Turns the Effect on (lit) and off (unlit).
Effect Edit
Opens (lit) and closes (unlit) the selected effect setup
window.
Effect Type
Selects the effect type.
Options:
No Effect, Ch.Strip, Clean, Crunch, Lead, Drive
NOTE
The maximum number of Channel Strip and Guitar Amp Classics
iterations which can be used simultaneously is limited. Refer to
the “Limitations on the use of effects” (
).
REV-X Send
Adjusts the signal level which is sent to REV-X.
Range:
-∞ dB – +6.00 dB
REV-X Send Value
Displays and adjusts the REV-X send value. Enable
editing of the value by double clicking the number.
Channel Area (
)
Mix Area (
)
DAW Area
(
MASTER Area (
REV-X Area(
Output Area (
Settings
Description
On (lit)
Applies an effect to both the monitor signal
(sent to the device) and the recording signal
(sent to the DAW software).
Off (unlit)
Applies an effect to only the monitor signal
(sent to the device).
