Panel Controls and Terminals
UR24C Operation Manual 3

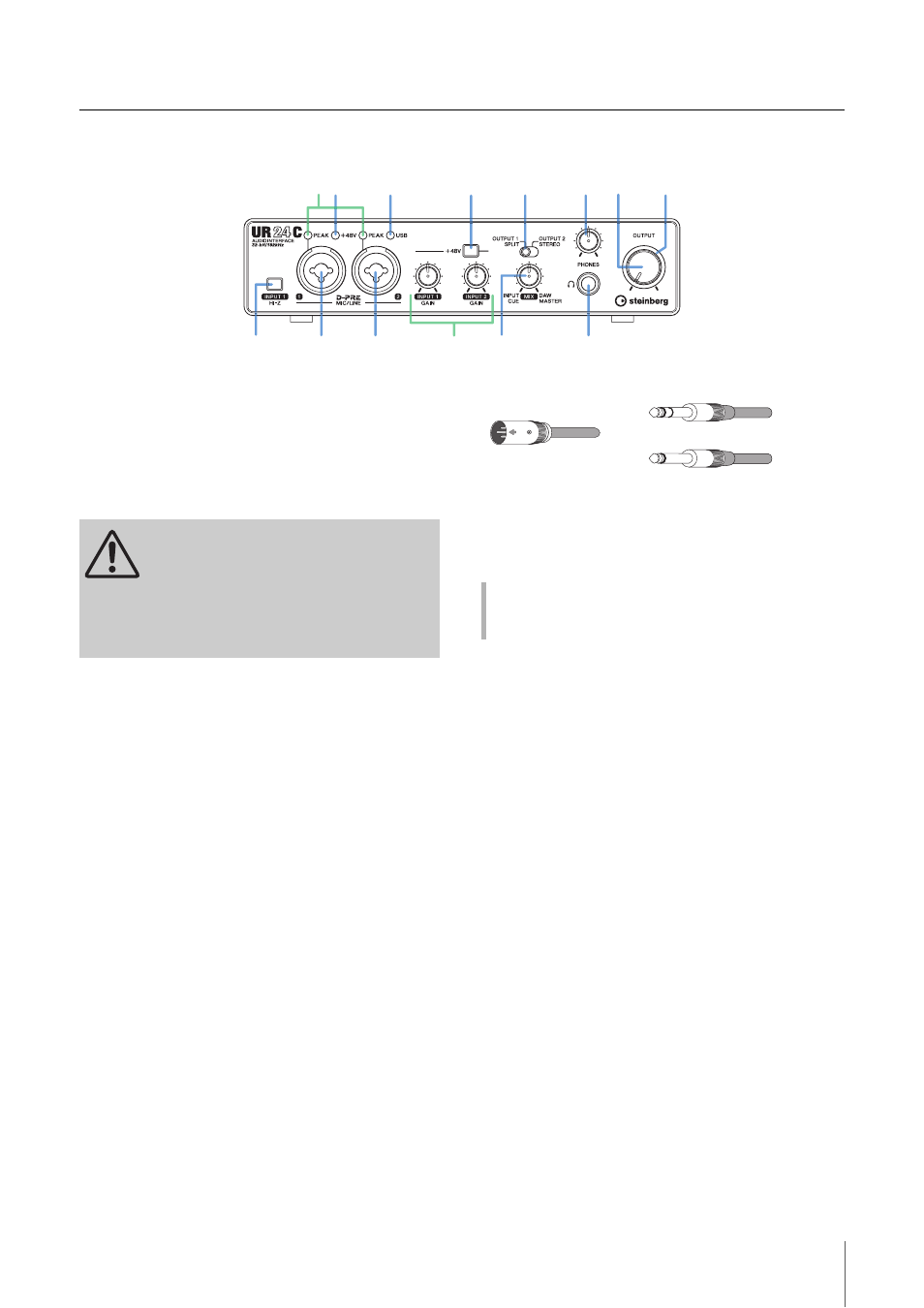

Panel Controls and Terminals
Front Panel
[INPUT 1 HI-Z] switch
Switches the input impedance (on /off ). Turn this
switch on when connecting high impedance instruments,
such as an electric guitar or electric bass, directly to the
[MIC/LINE 1] jack. When you turn this switch on, use an
unbalanced phone plug for connection between the
instruments and the [MIC/LINE 1] jack.
NOTICE
Do not connect or disconnect any cables while turning on the
[INPUT 1 HI-Z] switch. Doing so can damage the connected
device and/or the unit itself.
NOTE
• If you use a balanced phone plug, the device will not work
correctly.
• When the HI-Z switch is turned on, the signal from the XLR-
type is cut off.
[MIC/LINE 1] jack
For connection to a microphone, digital instrument,
electric guitar, or electric bass. This jack can be
connected to both XLR-type and phone-type (balanced/
unbalanced) plugs.
NOTE
The phantom power will be supplied to the XLR jack connected
to the [MIC/LINE 1] jack.
[MIC/LINE 2] jack
For connection to a microphone or digital instrument. This
jack can be connected to both XLR-type and phone-type
(balanced/unbalanced) plugs.
NOTE
The phantom power will be supplied to the XLR jack connected
to the [MIC/LINE 2] jack.
Plug types
[PEAK] indicator
Lights up when the input signal of the [MIC/LINE 1/2]
jacks is 3 dB below the clipping level.
[+48V] indicator
Lights up when the [+48V] switch (phantom power) is
turned on.
[USB] indicator
Lights up when the power is turned on and the unit is
communicating with the computer or an iOS/iPadOS
device. The indicator flashes continuously when the
computer or an iOS/iPadOS device does not recognize
the device.
[INPUT GAIN 1/2] knobs
Adjusts the input signal level of the [MIC/LINE 1/2] jacks.
[+48V] switch
Turns the phantom power (on /off ). When you turn this
switch on, phantom power will be supplied to the XLR jack
connected to the [MIC/LINE 1/2] jacks. Turn this switch on
when using a phantom powered condenser microphone.
NOTICE
When using phantom power, observe the following to prevent
noise and possible damage to UR24C or connected
equipment.
• Do not connect or disconnect any devices while the
phantom power switch is turned to ON.
• Set all output level controls to the minimum before turning
the phantom power switch to ON or OFF.
• When connecting devices not requiring phantom power to
the [MIC/LINE 1/2] jacks, make sure to turn the phantom
power switch to OFF.
CAUTION
To protect your speaker system, leave the
monitor speakers turned off when turning the
[INPUT 1 HI-Z] switch on/off. Turn all output level
controls down to their minimum. Neglect of
these precautions may result in loud noise
bursts that may damage your equipment, your
ears, or both.
Setting optimum recording levels
Adjust the [INPUT GAIN] knobs so that the [PEAK]
indicator flashes briefly at the loudest input volume.
XLR-type (balanced)
Phone-type (balanced)
Phone-type (unbalanced)
