Monitor Mode
UR24C Operation Manual 30

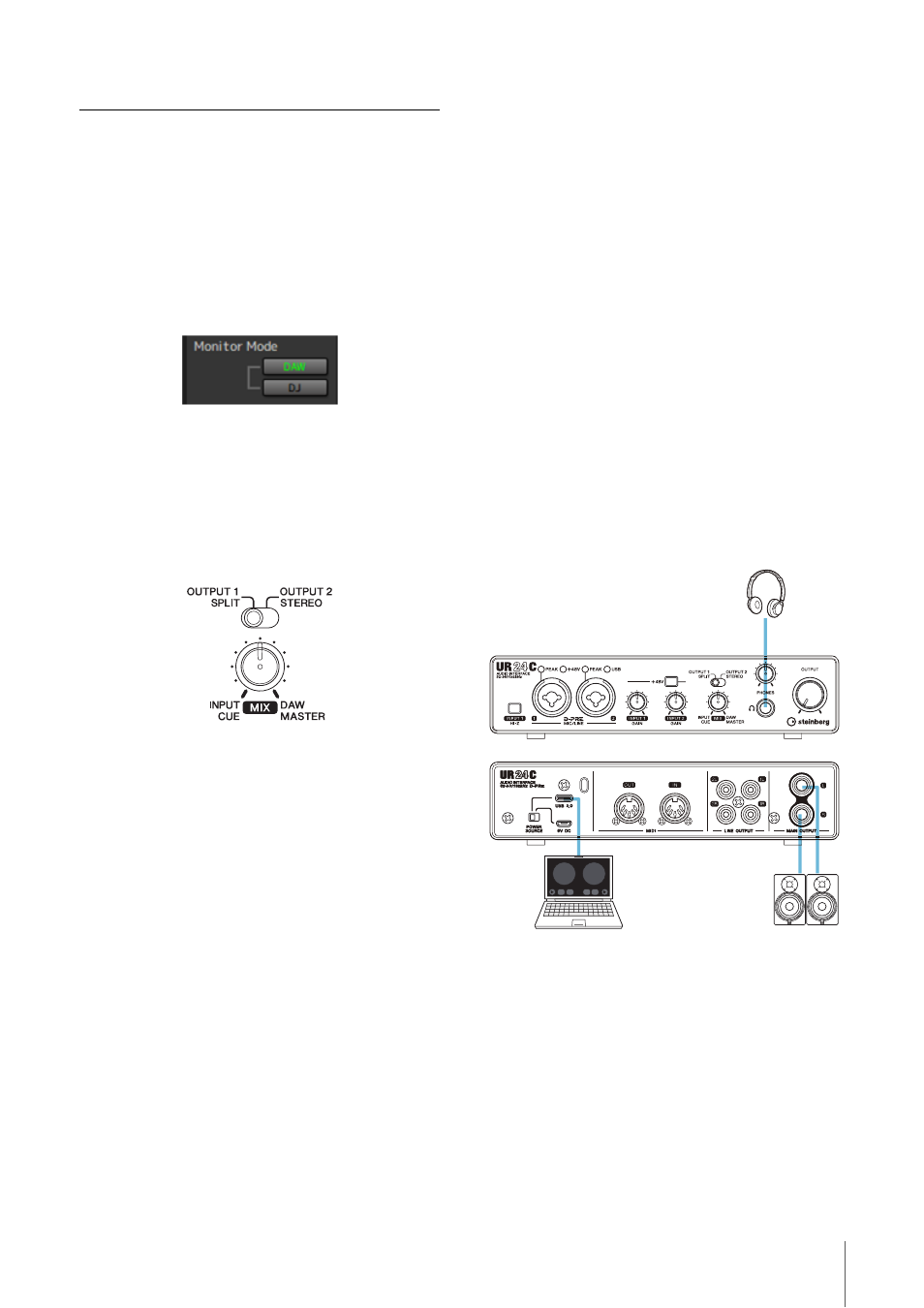

Monitor Mode
UR24C has two different monitoring configurations:
monitor mode DAW and monitor mode DJ. Monitor mode
DAW is used for producing music with a DAW such as
Cubase. The monitor mode DJ is convenient for music
performance use with DJ software.
How to switch the monitor mode
The monitor mode can be switched on the “Setup
Window” (
page 12 ) of dspMixFX UR-C.
In monitor mode DAW, the POWER indicator of the front
panel and the monitor mode icon of the dspMixFx UR-C
light in white, and light in red in monitor mode DJ.
How to use the slide switch and
MIX knob
Monitor mode DAW
After the level of the input signal from the [MIC/LINE 1/2]
jacks and the output signal as UR24C Mix L/R from DAW
is adjusted with the [MIX] knob, the signal is output to the
[LINE OUTPUT 1L/R] jacks.
This signal is called OUTPUT 1. Turn the [MIX] knob to the
[DAW] side if the input volume is high and to the [INPUT]
side if the input volume is low. When the knob is turned
fully to the [DAW] side, only the input sound from DAW
can be heard.
The output signal from DAW as UR24C Output 2 L/R
outputs directly to [LINE OUTPUT 2L/R] jacks. This signal
is called OUTPUT 2.
When the slide switch is set to [OUTPUT 1], the
OUTPUT 1 signal is output to the headphones. When the
switch is set to [OUTPUT 2], the OUTPUT 2 signal is
output.
Monitor mode DJ
Set the master output for DJ application to UR24C Mix L/
R, and the monitor output to UR24C Output 2 L/R.
After adjusting the level of the input signal to [MIC/LINE 1/
2] jacks and the master output signal of DJ application in
dspMixFX UR-C (
page 11 ), the signal is output to the
[MAIN OUTPUT L/R] jacks and [LINE OUTPUT 1L/R]
jacks. The signal is called MASTER.
The monitor output of the DJ application is output directly
to the [LINE OUTPUT 2L/R] jacks. This is called CUE.
When the slide switch is set to [SPLIT], the monoral
master sound is output from the right side of the
headphones, and the monoral cue sound is output from
the left.
Use the [MIX] knob to adjust the left and right volume
balance.
When the slide switch is set to [STEREO], the stereo
master and cue sound is mixed and is output to both the
left and right.
Use the [MIX] knob to adjust the mix balance.
NOTE
In monitor mode DJ, you can adjust the balance of the input
signal to [MIC/LINE 1/2] jacks and the output signal from software
such as a DAW only by using dspMixFx UR-C (
page 11 ).
Headphones
Computer Monitor
speakers
