9
6. MIDI IN connector
Connect an external MIDI device to this connector when using this unit to cre -
ate sounds.
7. SYNC IN, SYNC OUT jacks
Connect to the SYNC IN and OUT jacks on the KORG Volca series, to synchro-
nize with the output pulses and steps. The SYNC OUT jack outputs a 5V pulse, 15
ms long at the beginning of each step. Use a stereo mini-cable for this connection.
8. AUDIO IN jack
Connect an external sound source such as an audio player.
9. AUDIO OUT1 to 4 jacks
There are four independent output jacks that are separate from the main output
of this unit. You can specify and output your favorite parts. Connect to mixers,
audio interfaces, powered monitor speakers, and others.
10. AUDIO OUT L/MONO, R jacks
These are the main output jacks of this unit. Connect to mixers, audio interfac-
es, powered monitor speakers, and others.
11. (Headphones) output jack
This is a 6.3 mm stereo jack. Connect the headphones here. This jack outputs
the same signal as that of the AUDIO OUT L/MONO or R jack.

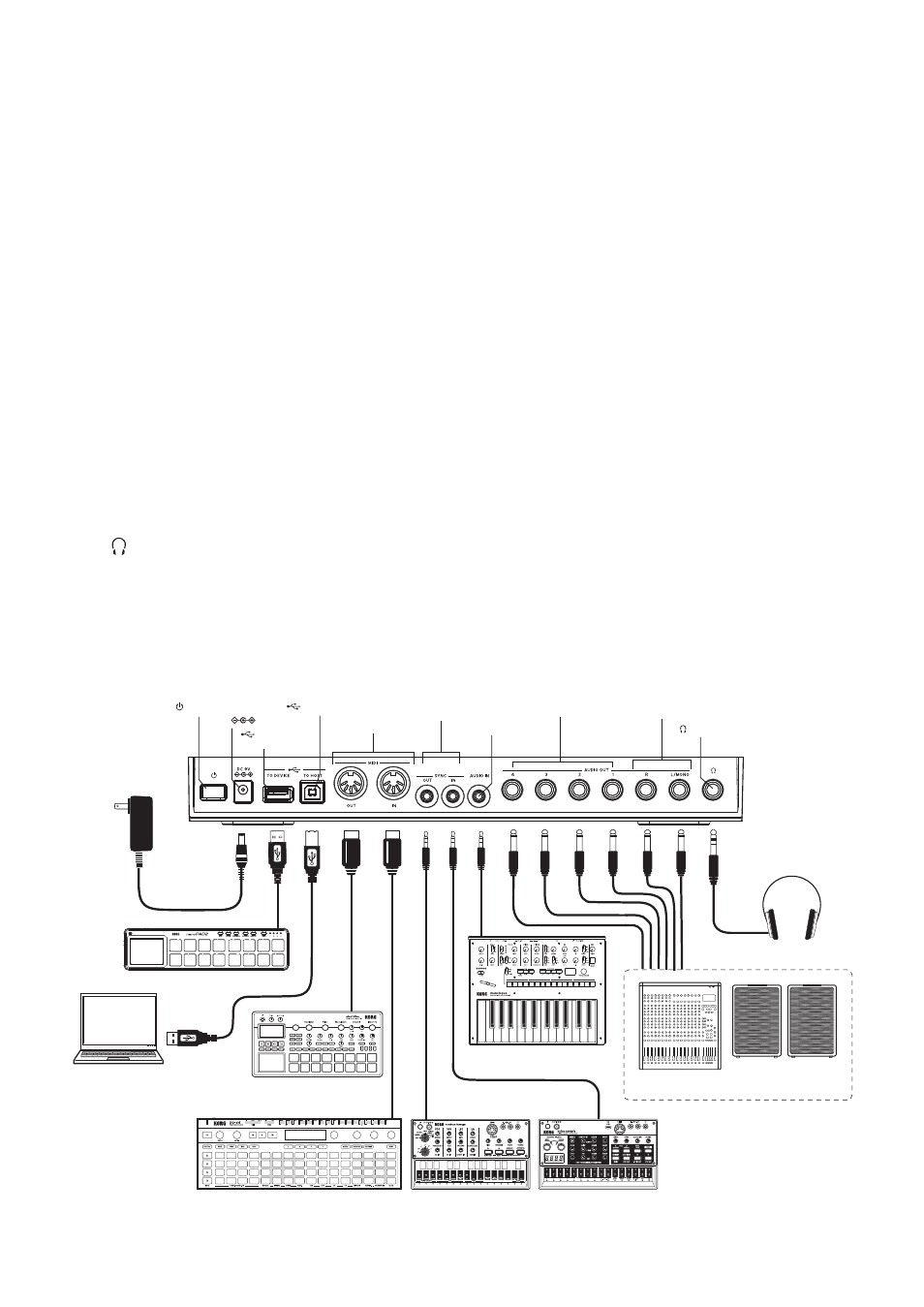

Making Connections
MIDI IN, OUT connectors
SYNC IN, OUT jacks
AUDIO OUT 1-4 jacks OUTPUT L/MONO, R jacks
DC 9V jack
AUDIO IN jack
(Headphones) jack
(Power) button TO HOST(USB B) port
Sound module,
Rhythm machine, etc.
Computer
AC adapter
(included)
volca/Groove machine volca/Groove machine Step sequencer, etc.
TO DEVICE
(USB A) port
MIDI IN
SYNC IN SYNC OUT
MIDI Controller
Headphones
Synthesizer, Audio player, etc.
Mixer/Powered monitor speaker
MIDI OUT
