5. INTERACTING WITH THE ANALOG HEAT +FX
15
• Press down and turn the DATA ENTRY to adjust the parameters in larger increments.
• Press [SETTINGS] + turn DATA ENTRY knob to quantize the parameter value to integers.
• Press [NO] + DATA ENTRY knob to reset the parameter to the default value.
• Press [NO] + [PARAMETER] page key to reset the selected parameter group to default values.
• Use the [NO] key to exit an active menu, back to a higher level menu and to negate.

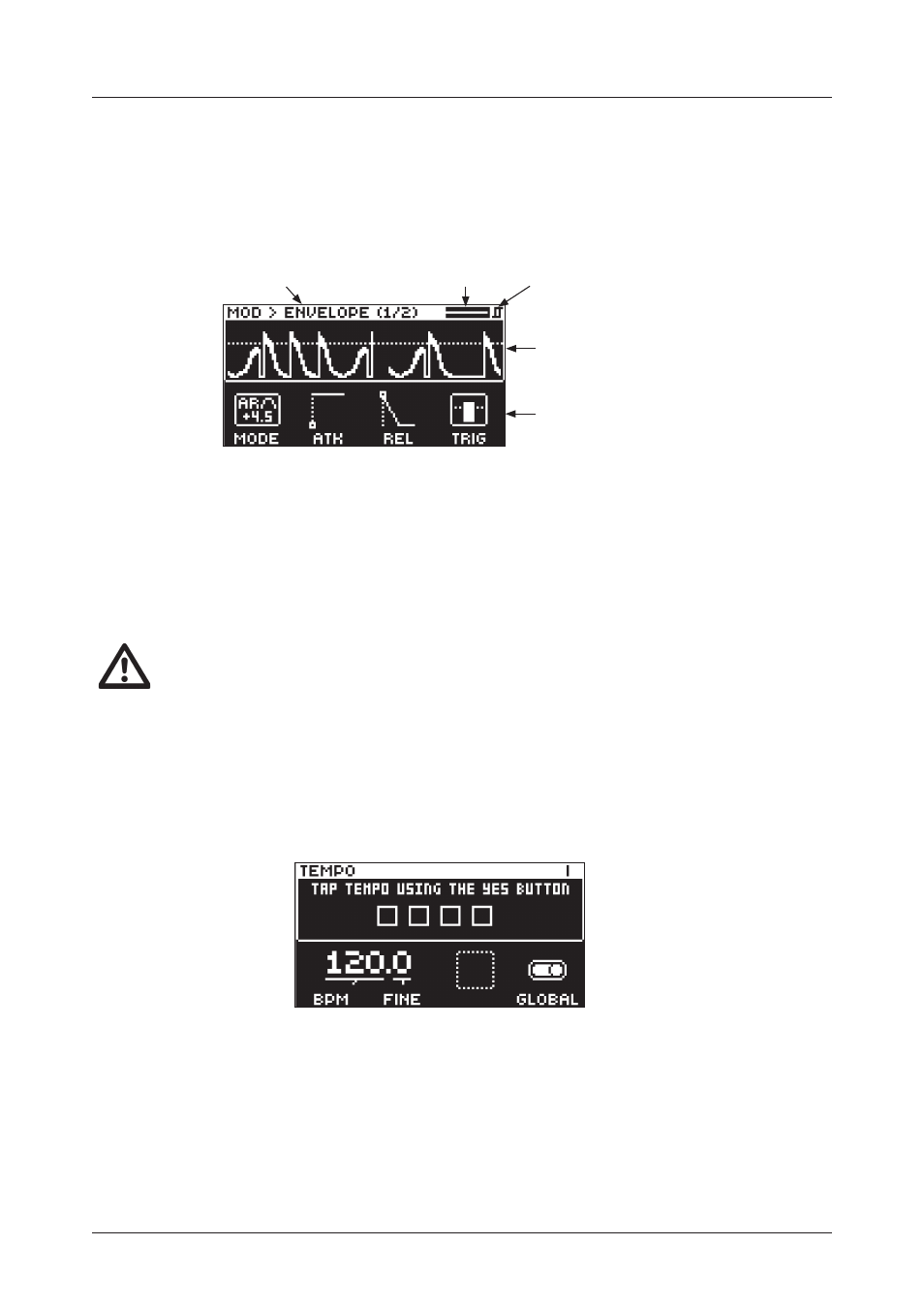

5.12 SCREEN INFORMATION
Parameter page Audio input meter Trigger icon
Current Parameter
page graphical info
Current Parameter
page parameters
• When on a parameter page, the title bar shows the name of the active parameter page. This text is re-
placed by parameter names when turning the DATA ENTRY knobs or the dedicated controllers.
• The Audio Input meter displays the level of the incoming audio.
• The Trigger icon shows that the Envelope Follower, an external gate signal or manual triggering has
generated a trigger event.
• The graphical information varies depending on the current PARAMETER page.
• The PARAMETER page parameters show what the
DATA ENTRY knobs control and their current param-
eter values.
The Analog Heat +FX features a screen saver that dims the screen after 5 minutes of inactivi-
ty and turns off the screen after 60 minutes. Press any key or move any controller to wake up
the screen.
5.13 TEMPO
Press the [FX] and [MOD] keys simultaneously to open the TEMPO menu where you can change the BPM
setting. Use the two leftmost DATA ENTRY knobs to change tempo. The first sets the coarse BPM and the
second sets the decimal. Pressing the knob while turning it changes the tempo two BPM at a time. You can
also choose between a global tempo or use a separate tempo for every pattern.
To tap a tempo setting, tap the
[YES] key in a steady rhythm. The average tempo of the taps calculates
after four consecutive taps. If you continue tapping, the average tempo keeps updating.
5.14 OVERBRIDGE
The Overbridge software suite enables a tight integration between the Analog Heat +FX and a computer
DAW software.
When using Overbridge, the user interface for the Analog Heat +FX presents itself as a plug-in window in
your DAW. Access, edit and automate parameters for sound shaping on screen. Always find your device
preset parameters in the same state as you left them when you return to your DAW project, with the useful
total recall functionality.
Read more about Overbridge use and availability on the Elektron website.
