Page 9
2. PANEL LAYOUT AND CONNECTIONS
9

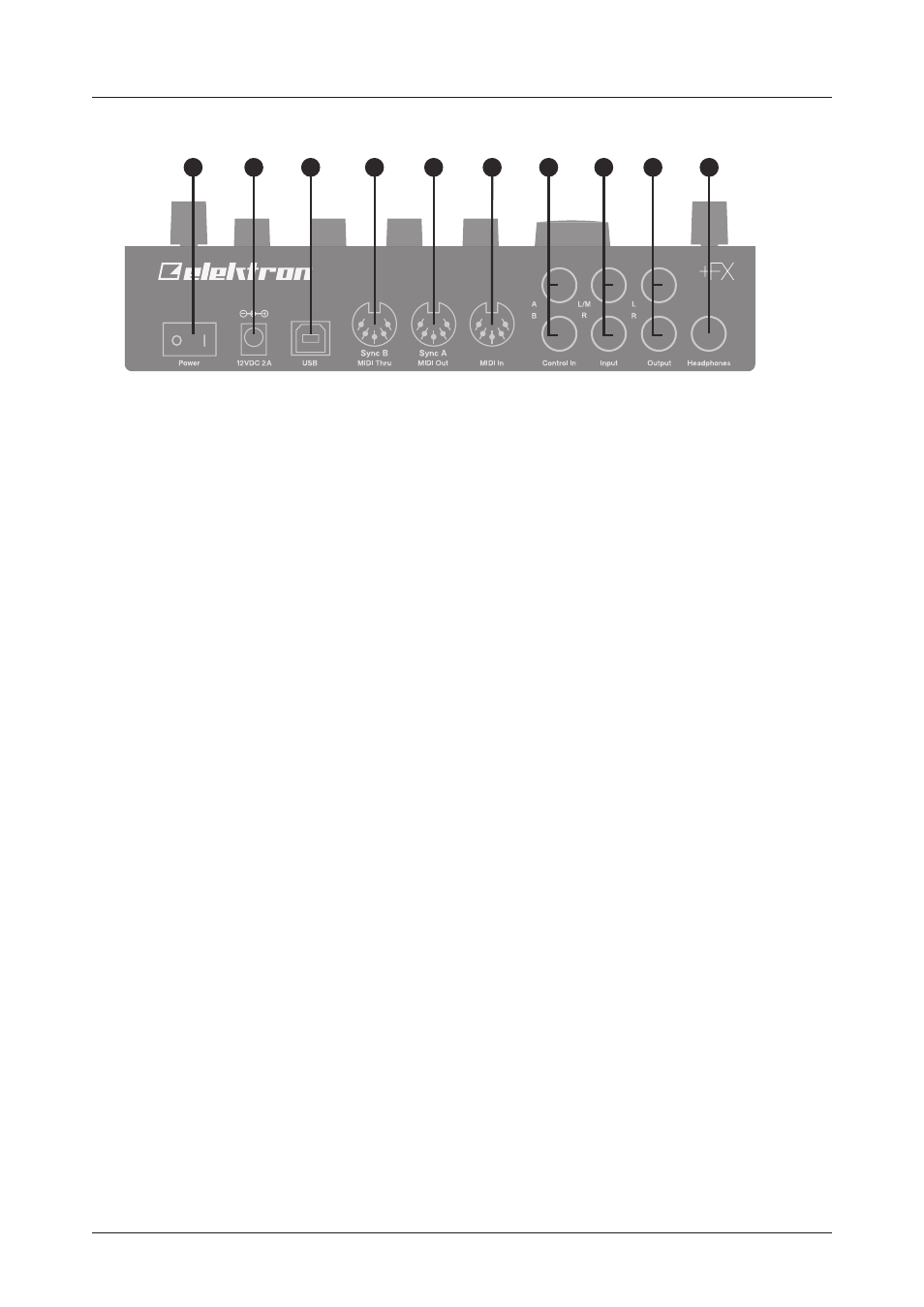

2.2 REAR PANEL CONNECTIONS
1
2
3
4
5
6
7
8
9
10
1.
POWER,
Switch for turning the unit on and off.
2.
DC IN,
Input for power supply. Use the included PSU-3b power adapter connected to
a power outlet.
3.
USB,
For connecting the unit to a computer. Used for MIDI control or Overbridge.
Connect to a computer host using the included A to B USB 2.0 connector cable.
4.
MIDI THRU/SYNC B,
Forwards data from MIDI IN. Can also be configured to send DIN sync to legacy
instruments. Use a standard MIDI cable to connect another MIDI unit in the chain.
5.
MIDI OUT/SYNC A,
MIDI data output. Can also be configured to send DIN sync to legacy instruments.
Use a standard MIDI cable to connect to MIDI In of an external MIDI unit.
6.
MIDI IN,
MIDI data input. Use a standard MIDI cable to connect to MIDI Out of an
external MIDI unit.
7.
CONTROL IN A/B
Inputs for an expression pedal, footswitch, or CV. Use 1/4” mono phone plug for
CV signals.
8.
INPUT L (mono)/R,
Audio inputs. Use either 1/4” mono phone plug (unbalanced
connection) or 1/4” (Tip/Ring/Sleeve) phone plug (balanced connection).
9.
OUTPUT L/R,
Main audio outputs. Use either 1/4” mono phone plug (unbalanced
connection) or 1/4” (Tip/Ring/Sleeve) phone plug (balanced connection).
10.
HEADPHONES,
Audio output for stereo headphones. Use 1/4” (Tip/Ring/Sleeve)
phone plug.
