2. PANEL LAYOUT AND CONNECTIONS
8
2. PANEL LAYOUT AND CONNECTIONS

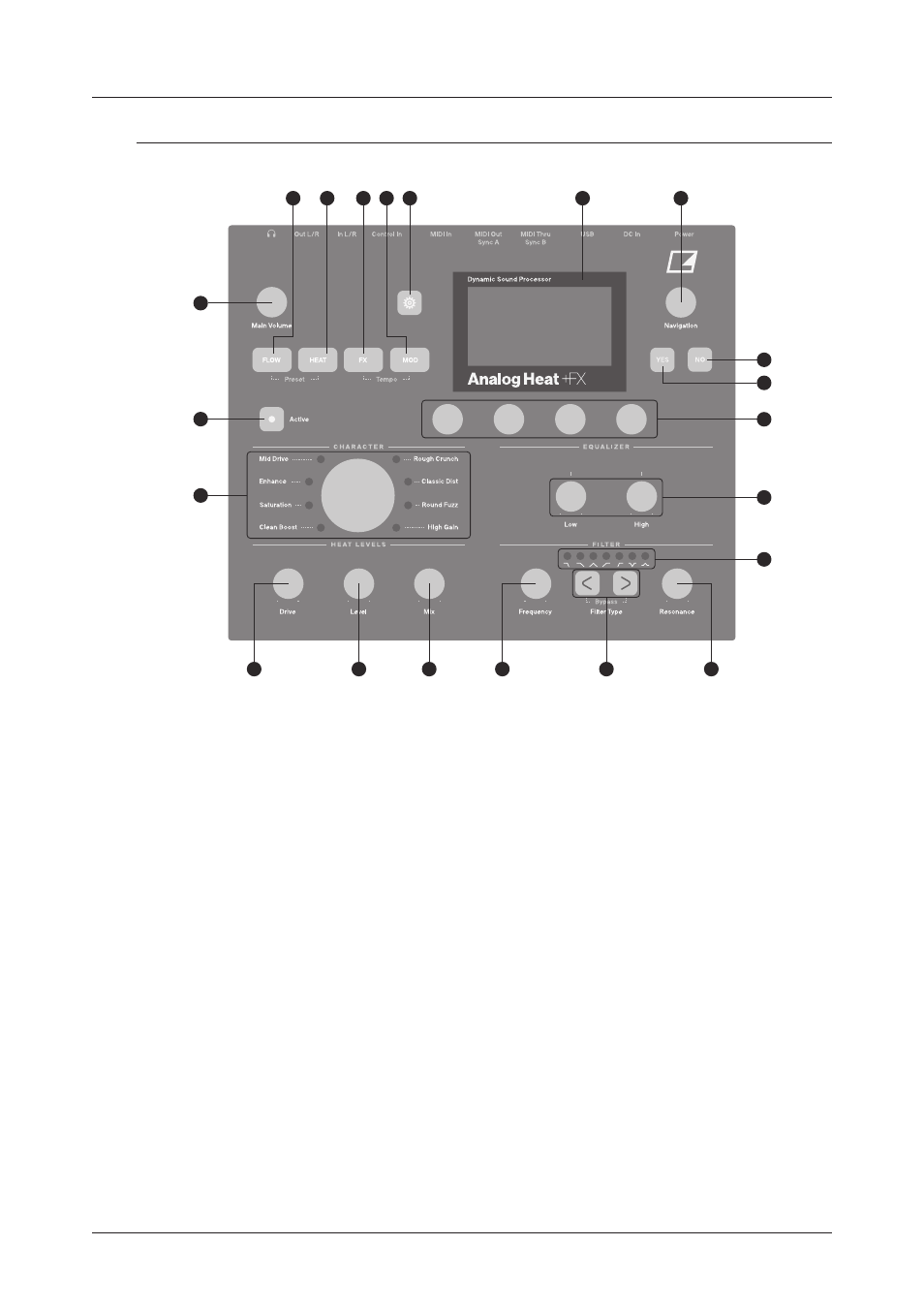

2.1 FRONT PANEL CONTROLS
1 2 3 5 4 6 7
8
9
10
11
12
13 14 15 16 17 18
19
21
20
1. [FLOW] accesses the FLOW parameter page where you can change the order of the FX blocks in the
signal path, activate/deactivate each FX block. You can also set the dry/wet mix of each effect block.
2. [HEAT] accesses the AMP, FILTER, and GATE parameter pages where you, among other things, can
select filter types and adjust the equalizer.
3. [FX] accesses the parameter pages for the digital effects.
4. [MOD] accesses the ENV parameter pages where you adjust the settings for the envelope generator/
envelope follower and the LFO parameter pages. Here you also find the Mod matrix.
5. [SETTINGS] accesses the SETTINGS menu. Contains both global settings and preset settings.
6. Screen.
7.
NAVIGATION is used for navigating menus, scrolling through lists and selecting options.
8. [NO] is used for exiting the current menu, backing to a higher level menu and negating.
9. [YES] is used for entering sub-menus, selecting and confirming.
10. DATA ENTRY knobs. Used to set parameter values.
11. LOW and HIGH adjust the amount of low-end and high-end frequency gain or attenuation of the effect
circuit in the Heat block.
12. <FILTER TYPE> LEDs that indicate the current type of filter and also if the filter is on or not.
13.
RESONANCE sets the resonance of the Heat block’s filter.
14. [FILTER TYPE] selects between the different filter types in the Heat block. Pressing both keys at the
same time toggles the filter on and off.
15. FREQUENCY sets the cutoff frequency of the Heat block’s filter.
16. MIX sets the balance between the Heat block’s unprocessed (dry) signal and the processed (wet) signal.
17. LEVEL sets the level of the processed (wet) signal in the Heat block.
18. DRIVE controls the amount of drive in the Heat block. This parameter increases the effect of the select-
ed circuit type.
19. CIRCUIT SELECTOR chooses between the eight different types of effect circuits in the Heat block.
20. [ACTIVE] toggles the effect between active (LED on) and bypassed.
21. MAIN VOLUME sets the main volume for the L/R and Headphones audio outputs.
