7. PARAMETER PAGES
25
7. PARAMETER PAGES
Here follows a description of all the parameters that are on the PARAMETER pages. You access the PA-
RAMETER pages by pressing the [PARAMETER] keys.
NAVIGATING THE PARAMETER PAGES
Use the following procedure to navigate and access the HEAT, FX and MOD PARAMETER page groups.
1. Press the PARAMETER PAGE key.
2. Turn
NAVIGATION to select sub-parameter page.
3. Use the DATA ENTRY knobs to set the page's parameters.
When you have selected a sub-parameter page, and there are more than one parameter page
in that section (for example FILTER 1/2 and FILTER 2/2), you can press the PARAMETER key
to toggle between these two pages.
7.1 FLOW

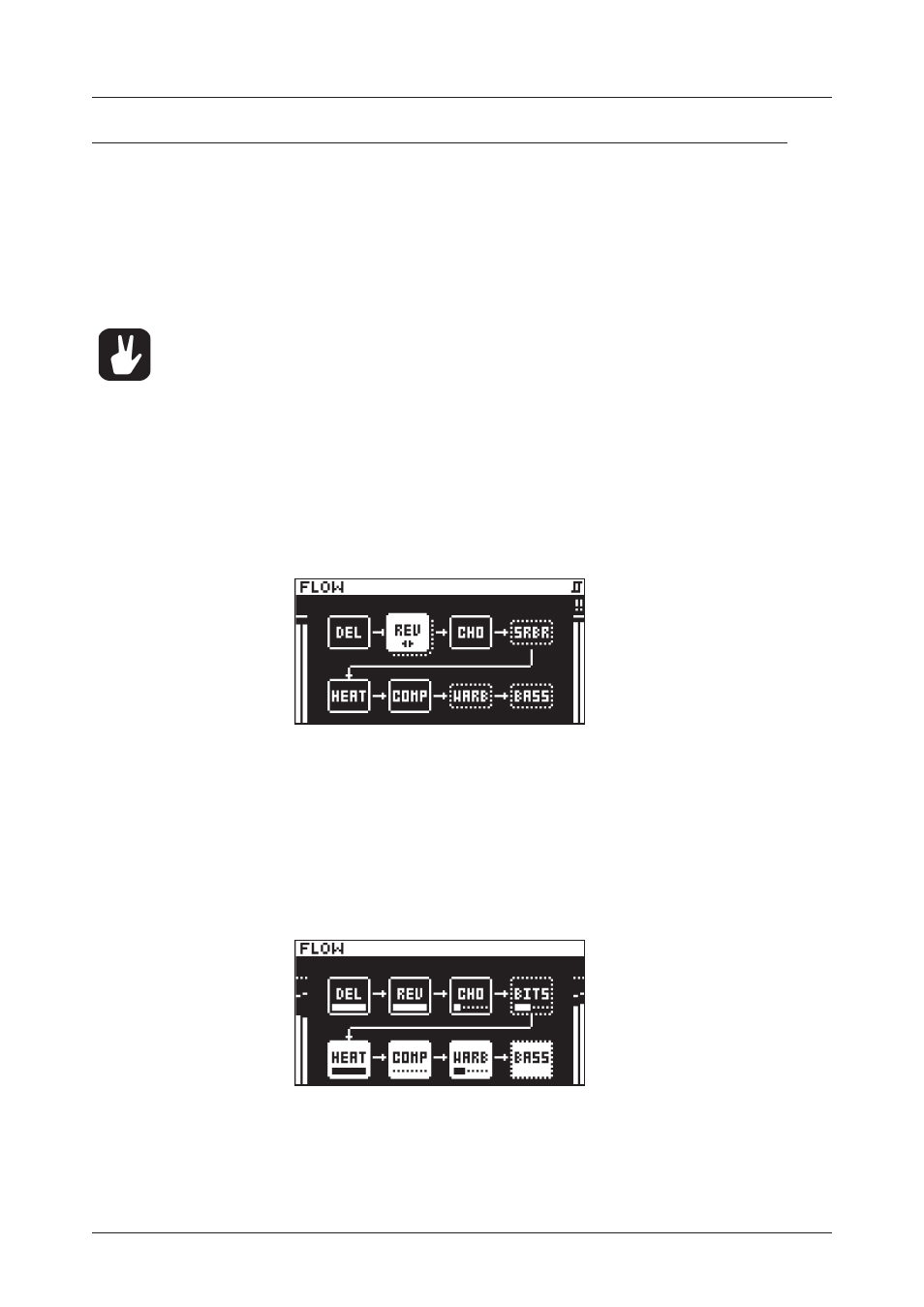

Press [FLOW] to access this parameter page. This page differs from the other PARAMETER pages since it
does not contain any parameters. On this page you can change the order of the FX blocks in the signal flow,
bypass/activate each FX block, and set the Dry/Wet mix (or Amount) of each effect block (The Bass Focus
block doesn’t have any of these parameters). Here you can also see the signal levels for the incoming and
outgoing audio signal levels. Exclamation marks above the audio bars means that the signal is so strong it
causes clipping. You find the parameter settings for the FX blocks in the FX parameter pages apart from
the Heat block’s parameters that are in the HEAT parameter pages. For more information, please see “7.3
FX” on page 28
7.1.1 CHANGING THE ORDER OF THE FX BLOCKS
1. Turn NAVIGATION to highlight the FX block you want to move
2. Press NAVIGATION to select and lift the highlighted FX block.
3. Turn NAVIGATION to move the FX block to the desired position in the path.
4. Press NAVIGATION to place the FX block in its new position.
7.1.2 SETTING THE DRY/WET MIX OF THE FX BLOCKS
1. Press and hold [FLOW] , and then turn NAVIGATION to select FX block row.
2. Use the DATA ENTRY knobs to set the Dry/Wet mix of the FX blocks on the selected row.
7.1.3 BYPASSING/ACTIVATING AN FX BLOCK
You can set if an FX block should be bypassed or active.
1. Turn NAVIGATION to select the FX block you want to bypass/activate
2. Press the [YES] and [NO] keys simultaneously to bypass/activate the selected FX block. A by-
passed FX block is shown on the screen with a dotted rectangle around it.
