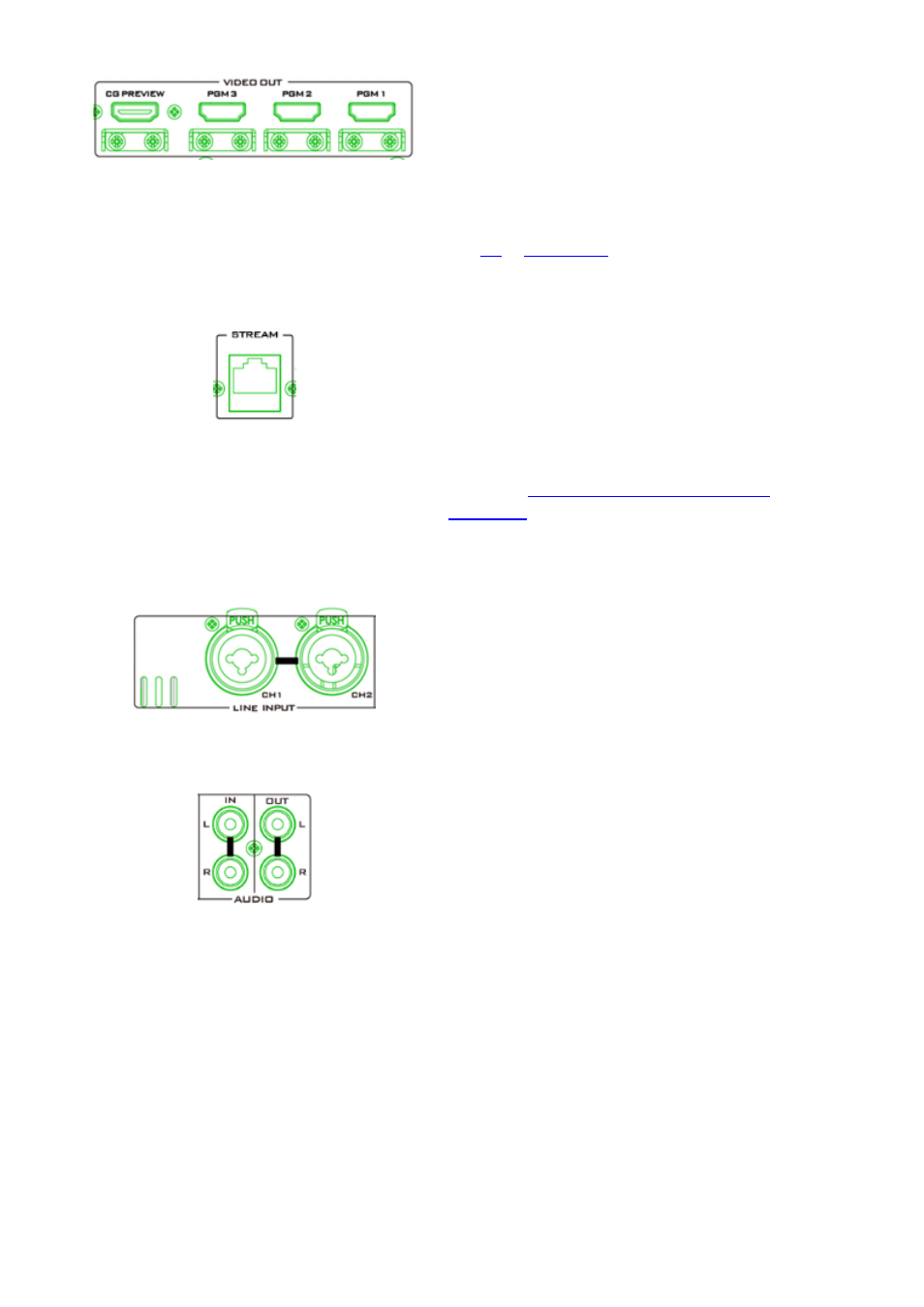

2. HDMI Video OUT ports
The HDMI Video Out ports 1 – 3 output Program
video only. Connect these ports to any HDMI
monitors or other HDMI destination devices.
The CG Preview output port allows you to preview
the CG text or image on the monitor connected.
See
CG in Section 6.2 for more information about
setting up your CG text or image.
3. Stream Port
The stream port allows the user to establish direct
connection between the notebook computer and
the SHOWCAST 100 in order to access the built-in
streaming encoder or connect the streaming
encoder to any local area network.
Note: See Chapter 6 Video Streaming and
Recording for device configuration and
operations.
4. Audio Input – XLR Balanced (CH1/CH2)
Two channels of XLR Balanced Audio Input.
5. Audio Input/Output – Stereo RCA (Left/Right)
Audio IN connects an unbalanced analog audio
source (stereo).
Audio OUT delivers unbalanced analog audio to an
audio destination device.
