17
Camera Control Audio Control
Camera channel selection buttons Volume adjustment sliders
(CH1/CH2/AUX/Digital/Master)
Joystick – PAN/TILT Headphone jack
ZOOM Knob Headphone volume control knob
Speed selection buttons (F/M/S) Audio meter
PTZ LOCK button
Transition Control Stream Control
Scroll wheel Bitrate button
PIP Keyer Enable/Disable button H/M/L LED indicators
Luma Keyer Enable/Disable button Record button
Fade-to-Black (FTB) Enable/Disable button Stream button
WIPE/MIX Enable/Disable button Vertical button
CUT Enable/Disable button Storage Media
Auto Transition Enable/Disable button SD card slot

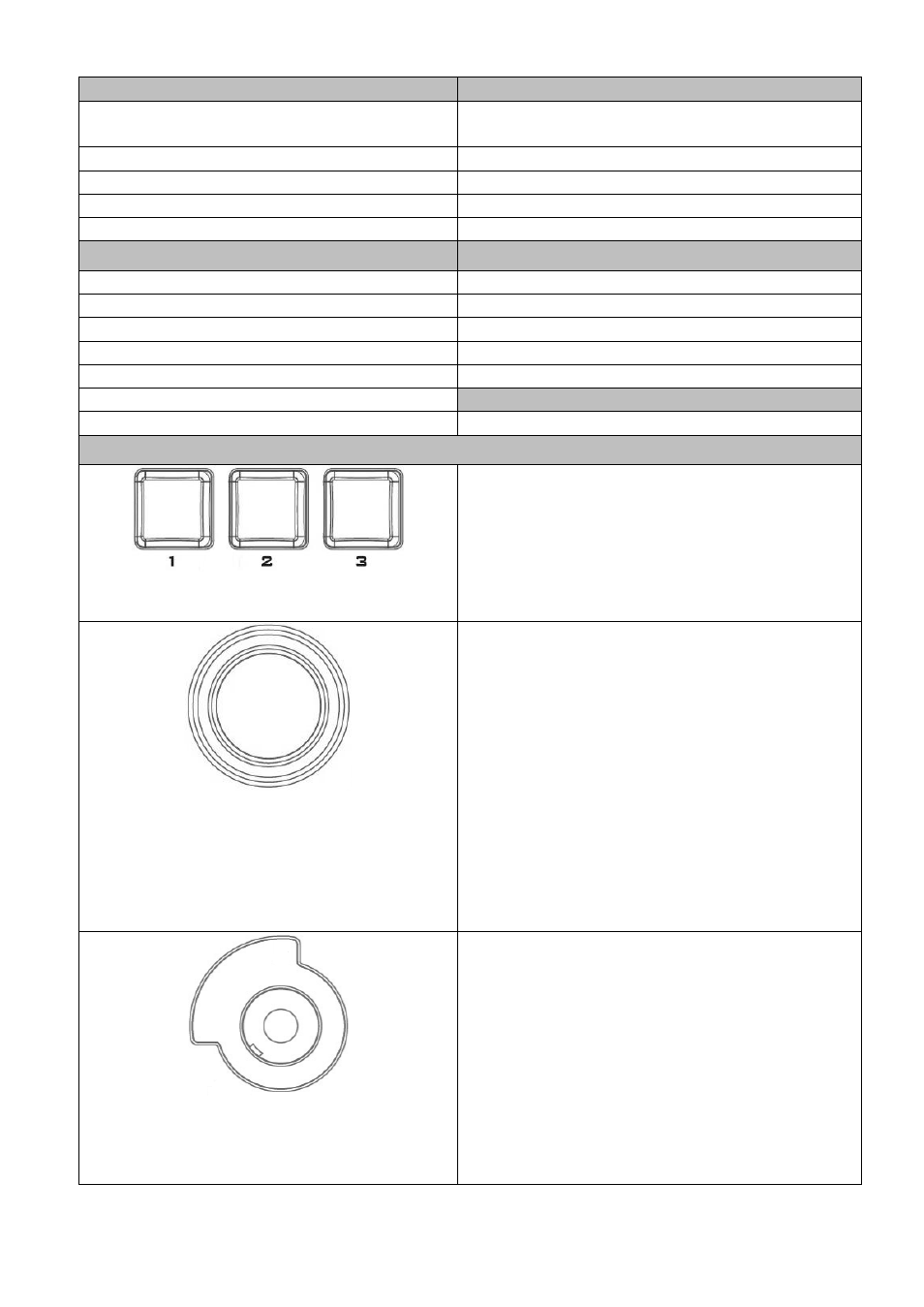

Camera Control
Camera Channel Selection Buttons
Press to select the camera that you would like to
control. You can control up to three connected
cameras on the SHOWCAST 100.
Joystick – PAN / TILT
PAN – Move the joystick left or right to pan the
selected PTZ camera head.
TILT – Move the joystick up or down to tilt the
selected PTZ camera head.
Note: Before attempting to use the joystick to PAN
or TILT a selected camera, first make sure the
LOCK button is not enabled. If the LOCK button
LED is ON, the joystick is locked; press the LOCK
button to unlock the joystick.
ZOOM Knob
ZOOM – Turn the zoom knob clockwise or anti-
clockwise to have the selected PTZ camera zoom
in or out.
Note: Make sure the LOCK button is not enabled.
If the LOCK button LED is ON, the knob is locked;
press the LOCK button to unlock the knob.
