20

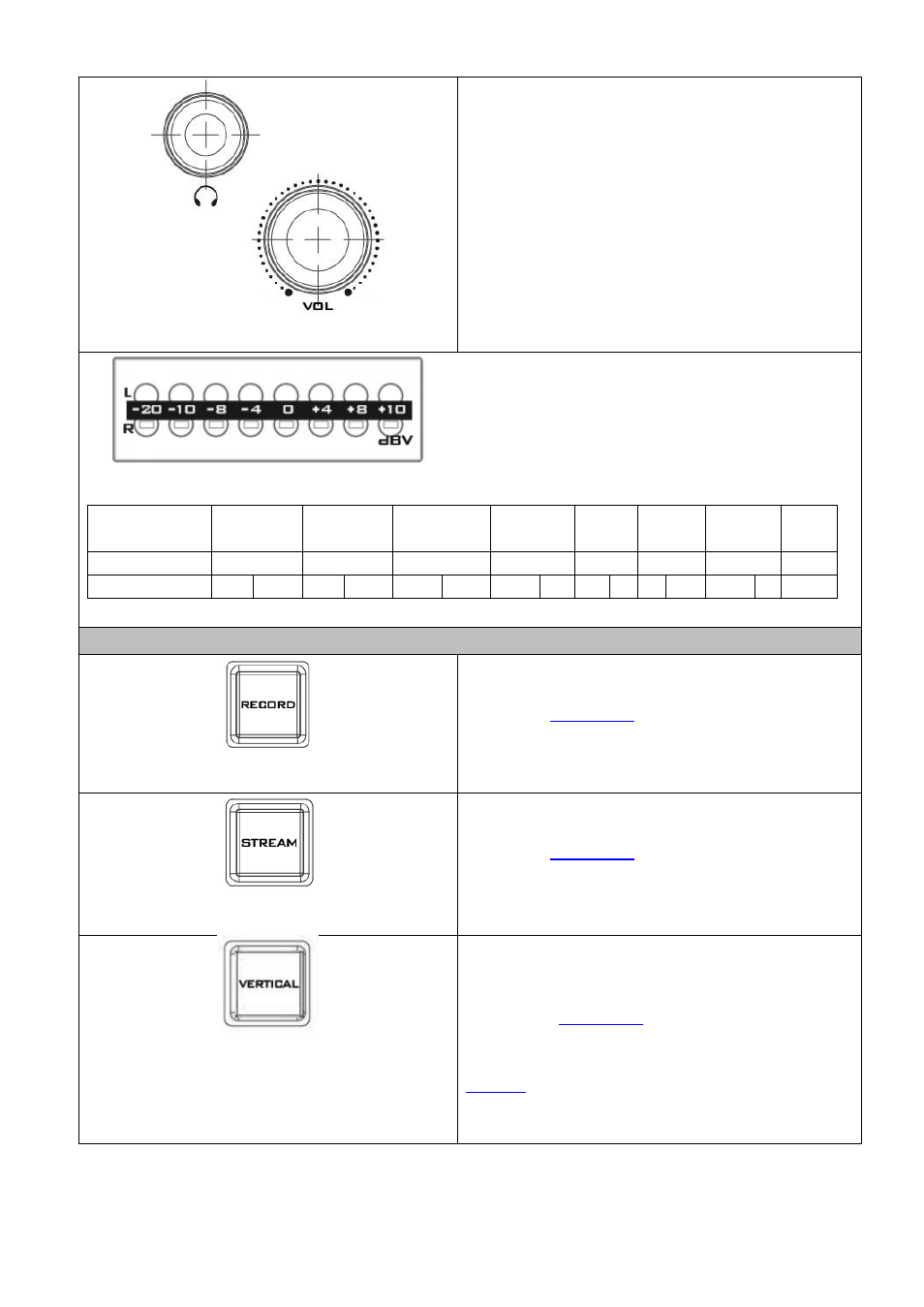

Headphone Jack
Headphone jack accepts the mini jack plug of the
stereo headphone type. The headphone volume is
controlled by the Headphone volume adjustment
slider.
The Headphone Volume knob adjusts the audio
volume of the connected headphone.
MASTER OUT Meter
The LED style meters show the audio signal strength
at the Main Program Audio Output. The signal
strength is determined by the level set with the
Master OUT slider. The LEDs turn red at +10 dBv to
indicate clipping distortion.
Audio
Volume (dBV)
-20 -10 -8 -4 0 +4 +8 +10
LED Color G G G G G Y Y R
Range (dBV) -20 -12 -11 -9.5 -8.5 -6.5 -5.5 -3 -2 1 2 5.5 6.5 8 9+
G: Green Y: Yellow R: Red
Stream Control
RECORD
Press the RECORD button to enable video record
mode. See
Section 6.4 for details.
STREAM
Press the STREAM button to enable video stream
mode. See
Section 6.4 for details.
Vertical Button
Press the Vertical button to switch stream video
orientation between Portrait and Landscape
modes. See
Section 6.4 for details.
Note: You can also switch video orientation via
web user interface; see descriptions of the
Vertical page for details.
