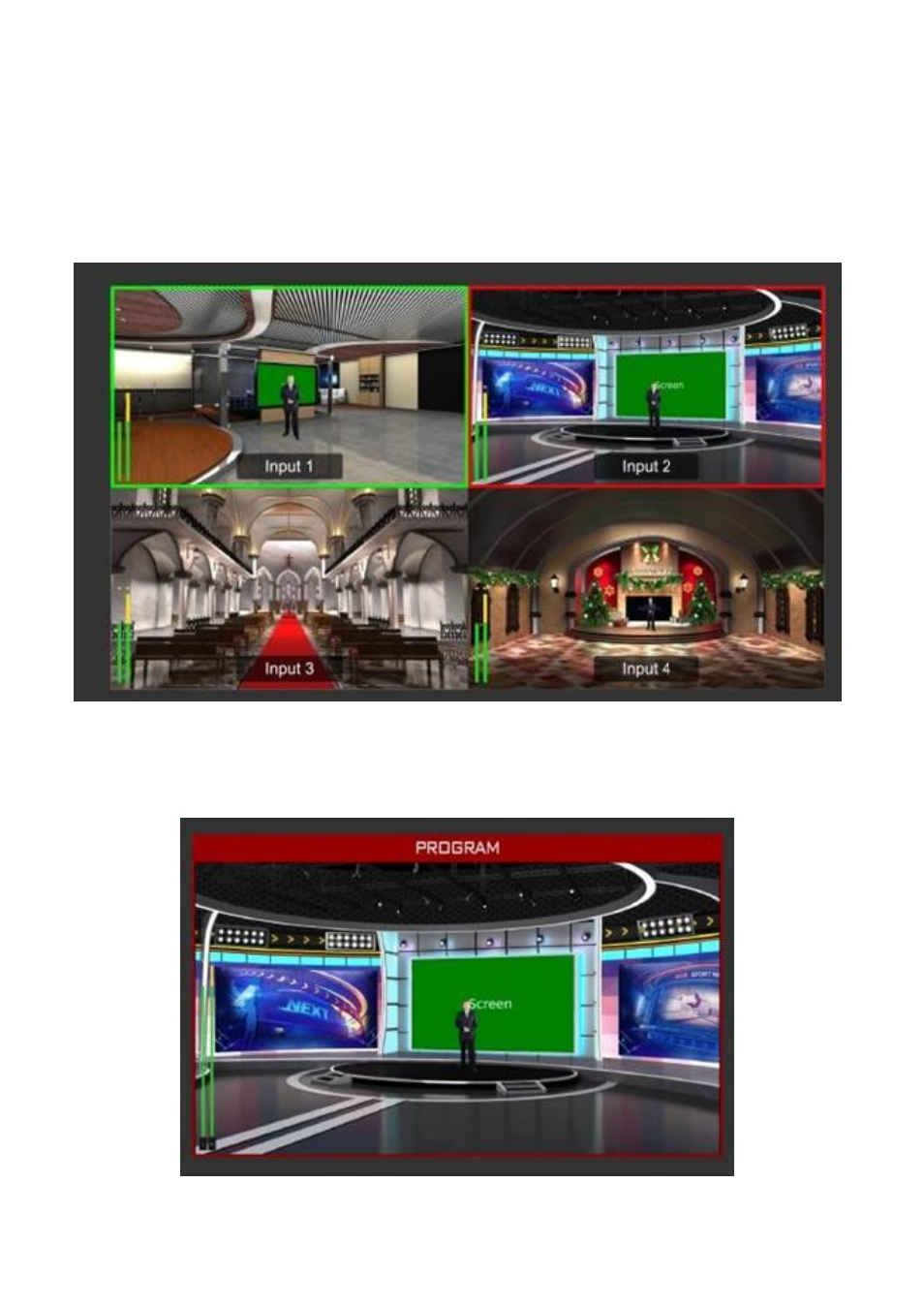

Multi Image Preview (Multiview)
The Multi Image Preview or Multiview can be supplied from the four HDMI inputs. The Multiview will
also display basic tally information on the respective screens by highlighting the live source image
(program view image) with a red border, and the cued/next source image with a green border. You can
change the program view image by simply tapping the input quadrants.
If PIP is enabled, the sub video source will always be highlighted with a red border.
Program Image (On Air)
Next to the Multiview on the right is the Program view (HDMI OUT PGM 1 – 3) showing the video that
is currently being streamed or recorded.
