Datavideo SHOWCAST 100 4K Switcher with Built-In Streaming Encoder User Manual
Page 51
51
6.

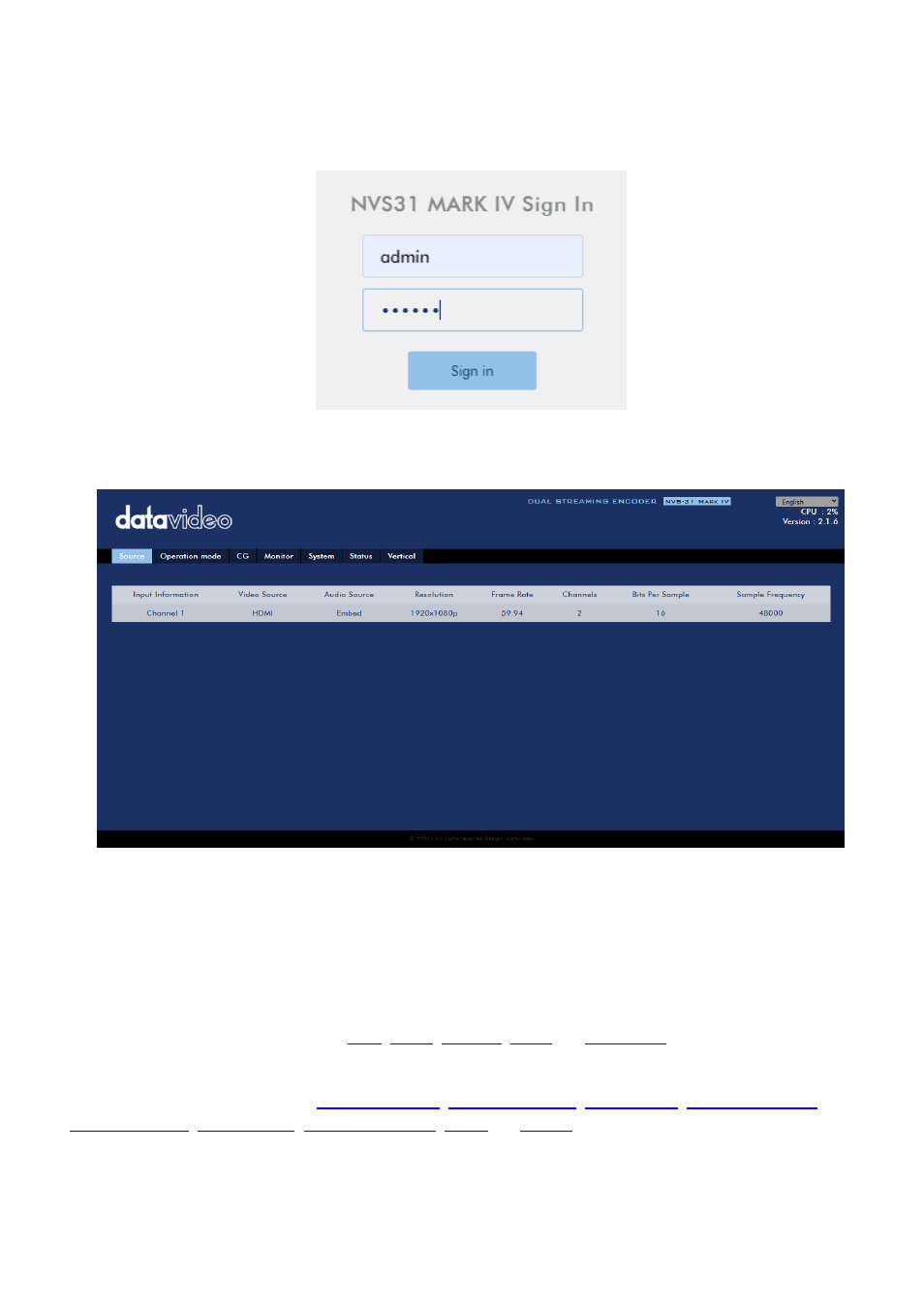

Double click the NVS-31 MARK IV’s IP address, and your browser should open up with a login
screen shown below. You can also manually enter the device IP address into the address bar of a
browser on your laptop then hit the ENTER button.
7.
Enter the login credentials (Username: admin/Password: 000000) to log in to the web UI shown
below.
Brief descriptions of the tabs are provided as follows:
Source: View and configure various video sources.
Operation Mode:
-
Record: Configure the two built-in recorders.
-
Streaming: Configure the two built-in stream servers.
CG: Create textual or graphic layers (
Text
,
News
,
Graphic
,
Logo
and
Animation
) on the videos.
Monitor: Set the HDMI output frame rate and volume of the embedded audio.
System: System settings include
network setting
,
login credentials
,
time setting
,
firmware update
,
disk formatting
,
device name
,
timeout duration
,
reset
and
reboot
.
Note: In Networking Setting, you will be allowed to enable/disable DHCP; see the following sections
for details on connecting in the respective modes.
