10
31-7000138 Rev. 0
Installation Instructions

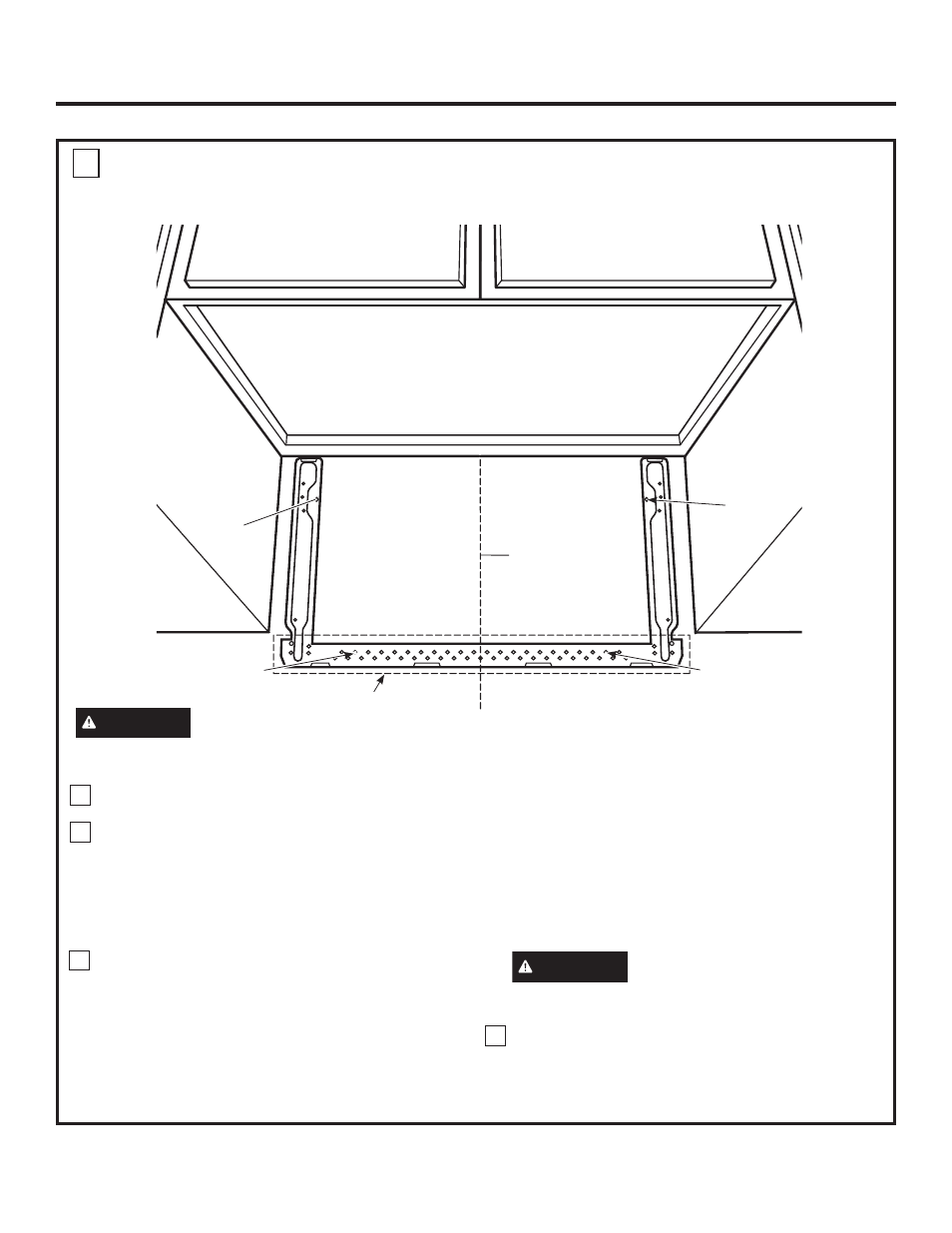

ALIGNING THE WALL PLATE
'UDZDYHUWLFDOOLQHRQWKHZDOODWWKHFHQWHURIWKHƎ
wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are
touching the bottom of
the cabinet or the level line drawn in Step C for
cabinets with front overhang. Line up the notch
and center line on the mounting plate to the center
line on the wall.
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arrows) .
Four holes must be used for mounting.
NOTE: Holes C and D are inside area E. If neither C
nor D is in a stud, find two studs somewhere in area
E and draw two circles to line up with these studs. If
there is only one stud in area E, determine whether
C or D is further from the stud, and draw the fourth
circle in this location. It is important to use
at least one
wood screw mounted firmly in a stud to support the
weight of the oven.
Set the mounting plate aside.
WARNING
Risk of electric shock. Can cause
injury or death. Take care to not drill into electrical
wiring inside walls or cabinets.
Drill holes on the circles. If there is a stud, drill a 3 »
16
Ǝ
hole for wood screws. For holes that don’t line up with
a stud, drill a
5 »
8
ƎKROHIRUWRJJOHEROWV
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
2
3
4
Draw a
Vertical Line
on Wall from
Center of
Top Cabinet
Area E
Hole A
Hole B
Hole D Hole C
D
CAUTION
Wear
gloves to avoid cutting
fingers on sharp edges.
1
