GE Profile Advantium Series 30 Inch Over-the-Range Microwave Oven Installation Guide - Manual (Page 8)

8
31-7000138 Rev. 0
Installation Instructions
Find the studs, using one of the following methods:
A. Stud finder – a magnetic device which locates
nails.
OR
B. Use a hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
After locating the stud(s), find the center by probing
the wall with a small nail to find the edges of the
stud. Then place a mark halfway between the
edges.
7KHFHQWHURIDQ\DGMDFHQWVWXGVVKRXOGEHƎRU
ƎIURPWKLVPDUN
Draw a line down the center of the studs.
IMPORTANT: The microwave oven must be
connected to at least one wall stud.

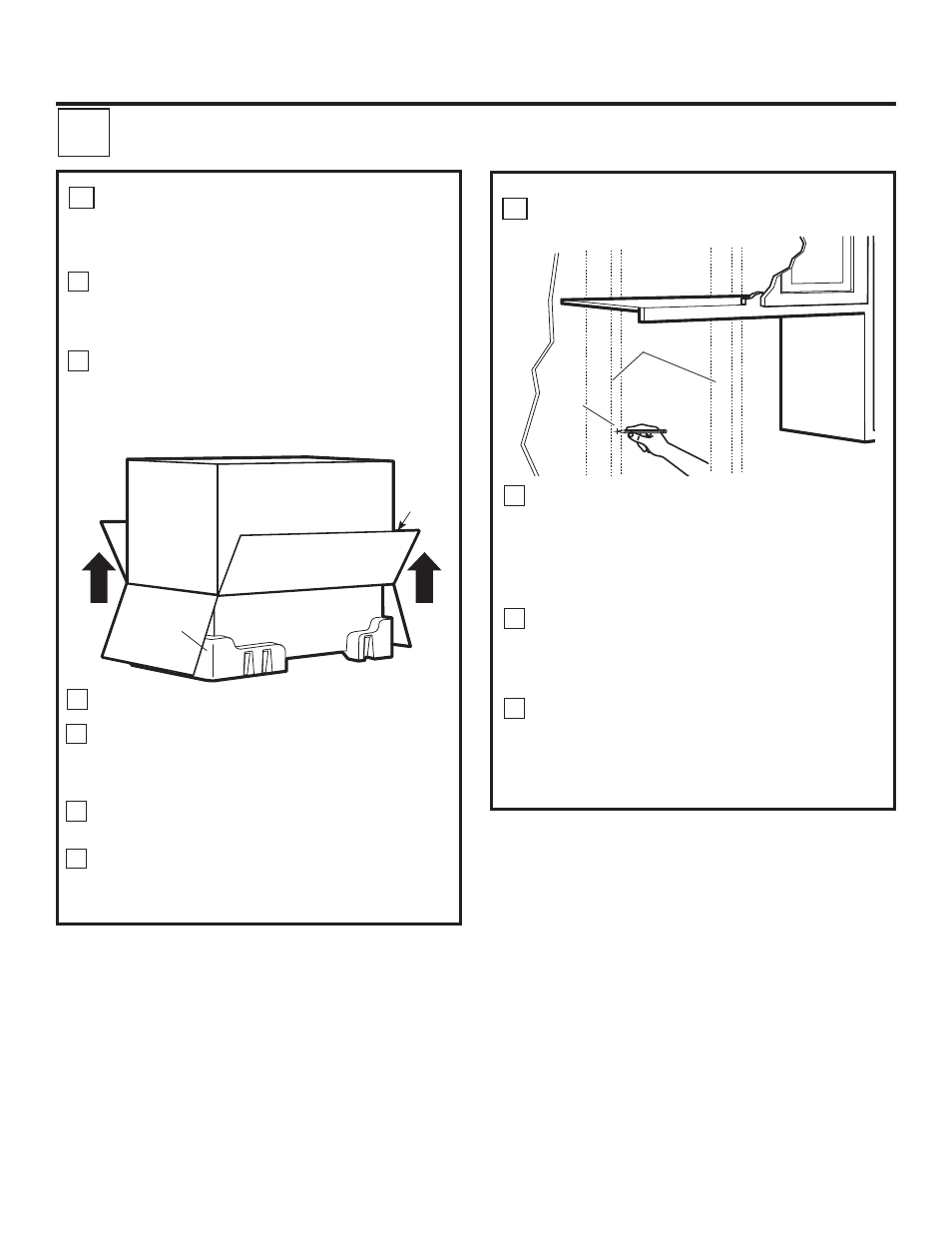

1
Remove the box containing the installation
instructions, filters, exhaust adaptor, damper
and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
REMOVING THE OVEN FROM
THE CARTON/REMOVING
THE MOUNTING PLATE
FINDING THE WALL STUDS
B
A
2
PLACEMENT OF THE MOUNTING PLATE 1
Wall
Studs
Center
3
Carton
Pull the carton up and off the oven.
Open the oven door and remove the styrofoam
pack from inside the oven. Remove the tape
covering the turntable hub.
Styrofoam
2
3
6
Set the oven upright. Remove and properly discard
plastic bags and Styrofoam.
1
The mounting plate is attached to the back of
the oven. Remove the two screws holding it to
the oven. The plate will be used as the rear wall
template and for mounting the oven to the wall.
4
5
