Installation Instructions
AFTER: Fan Blade
Openings Facing
Forward
3
2
4

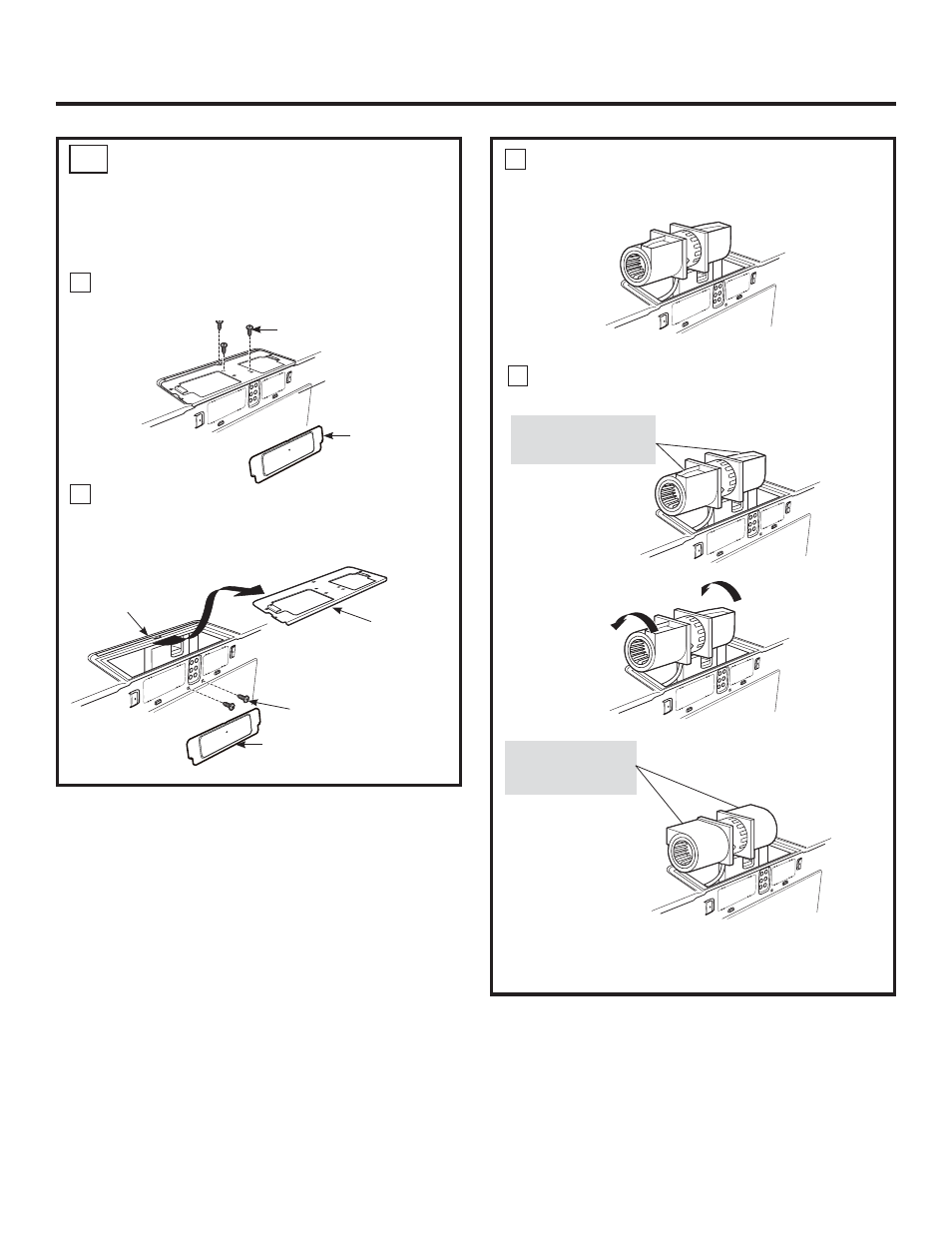

ADAPTING BLOWER
FOR RECIRCULATION C3
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want
to save them for possible future use.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll
Slide the blower plate from under its retaining
flange and lift it off. Remove and save screw
that holds the blower motor to oven. Remove
the cover plate installed on the back.
Remove and save screws that hold blower plate
to the oven.
NOTE: Make sure wires remain routed in the
grooves of the motor frame.
BEFORE: Fan Blade
Openings Facing Up
1
Back of
Oven
Blower Plate Screws
Cover Plate
Cover Plate
Blower
Plate
Blower
Motor Screw
Retaining
Flange
