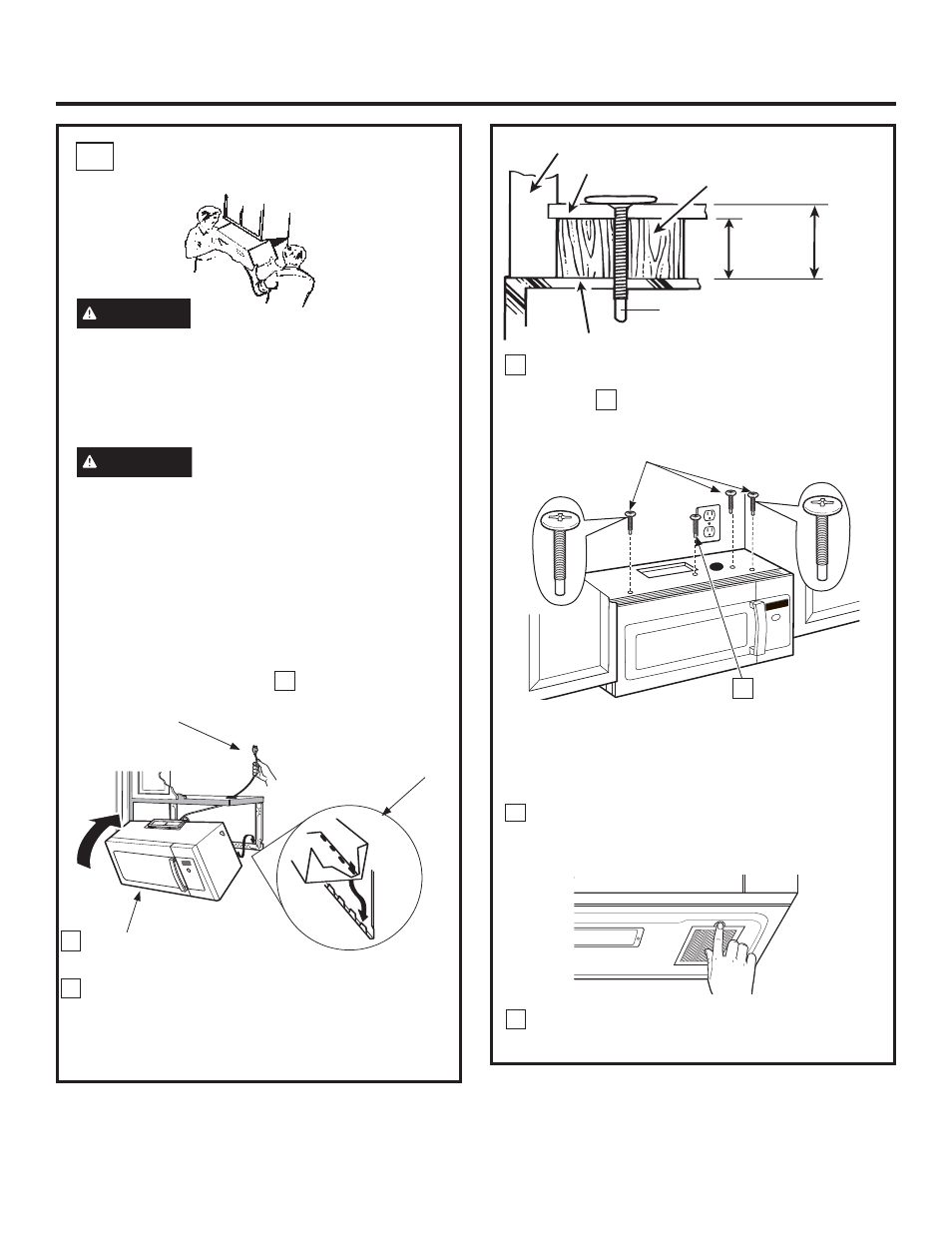

Attach the oven to the top cabinet.
Tu rn t o S elect
P ress t o E nt e r
MOUNT THE OVEN B5
8
5
Cabinet Front
7 Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
Insert 3 self-aligning screws
(
1 »
4
Ǝ[ǫƎWKURXJKRXWHU
top cabinet holes. Turn two
full turns on each screw.
Tighten center
screw completely
´[[ǫ´
Install grease filters. See the Owner’s Manual
packed with the oven.
6
4
CAUTION
To avoid the risk of personal
injury (back injury or other injuries due to
excessive weight of the microwave oven) or
property damage, you will need two people to
install this microwave oven.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can
cause injury or death: If installing unit with
metal countertops, cover the edge of the power
supply cord hole with the power supply cord
bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
Tur n to Select
P re s s to E nte r
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least
two full turns after
the threads have engaged . (It will be completely
tightened later.)
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and
hook slots at back
bottom edge onto four
lower tabs of mounting
plate.
1
Rotate front of oven up
against cabinet bottom. 2
3
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
This
distance
can NOT
exceed 2”
to ensure
proper
installation
