CAUTION
To avoid the risk of personal
injury (back injury or other injuries due to
excessive weight of the microwave oven) or
property damage, you will need two people to
install this microwave oven.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can
cause injury or death: If installing unit with
metal countertops, cover the edge of the power
supply cord hole with the power supply cord
bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
Tur n to Select
P r e s s to E nte r
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and
hook slots at back
bottom edge onto four
lower tabs of mounting
plate.
1
2
Rotate front of oven up
against cabinet bottom.

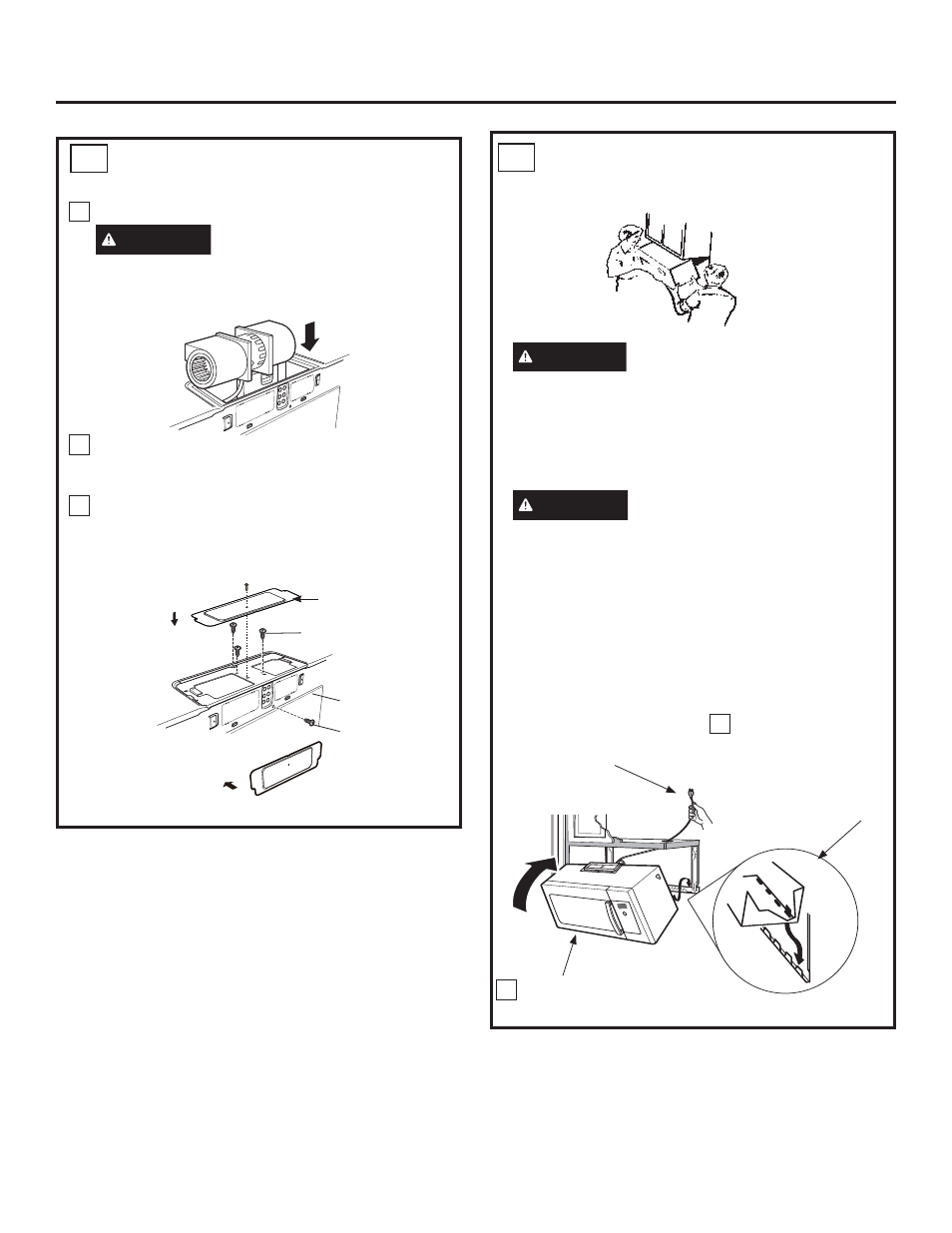

MOUNT THE OVEN
Installation Instructions
Place the blower unit back into the opening.
WARNING
Risk of electric shock can
cause injury or death. Do not pull or stretch
the blower unit wiring. Make sure the wired
are not pinched.
7
6
5
ADAPTING BLOWER FOR
RECIRCULATION
(continued)
C3
Reattach the cover plate on the back. Replace
blower plate with the screws removed in Step 1.
Attach the cover on the blower plate (include one
screw).
Secure blower unit to oven with the 2 screws
removed in Step 2. Insert the screw in
bottom
right screw hole on the back of the oven.
Blower Motor
Screw
Blower Plate Screws
Back of Oven
Cover Plate
