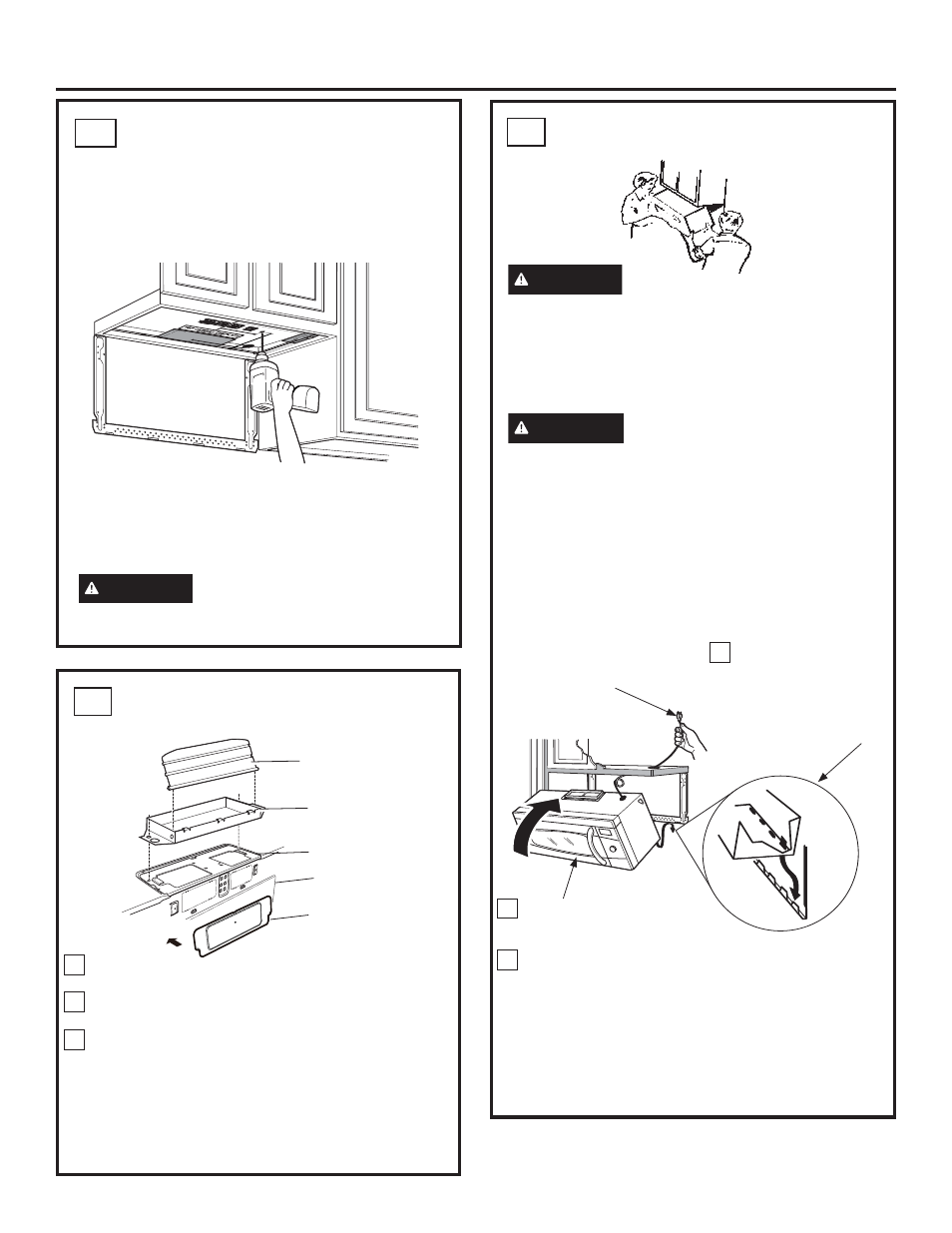

Installation Instructions
MOUNT THE OVEN A4
ASSEMBLE AND INSTALL
ADAPTOR A3
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION
Wear safety goggles when
drilling holes in the cabinet bottom.
Place the oven in its upright position, with the top
of the unit facing up.
Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the oven is installed.
1
2
Damper
Back of
Oven
Cover Plate
Exhaust
Adaptor
Blower Plate
3
CAUTION
To avoid the risk of personal
injury (back injury or other injuries due to
excessive weight of the microwave oven) or
property damage, you will need two people to
install this microwave oven.
IMPORTANT: Do not grip or use handle during
installation.
WARNING
Risk of Electric Shock. Can
cause injury or death: If installing unit with
metal countertops, cover the edge of the power
supply cord hole with the power supply cord
bushing.
IMPORTANT: If filler blocks are not used, case
damage may occur from overtightening screws.
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least
two full turns after
the threads have engaged . (It will be completely
tightened later.)
3
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate. 1
2 Rotate front of oven up
against cabinet bottom.
