12
31-7000138 Rev. 0
A OUTSIDE TOP EXHAUST
(Vertical Duct)
Tu rn to Select
P ress to E nt er

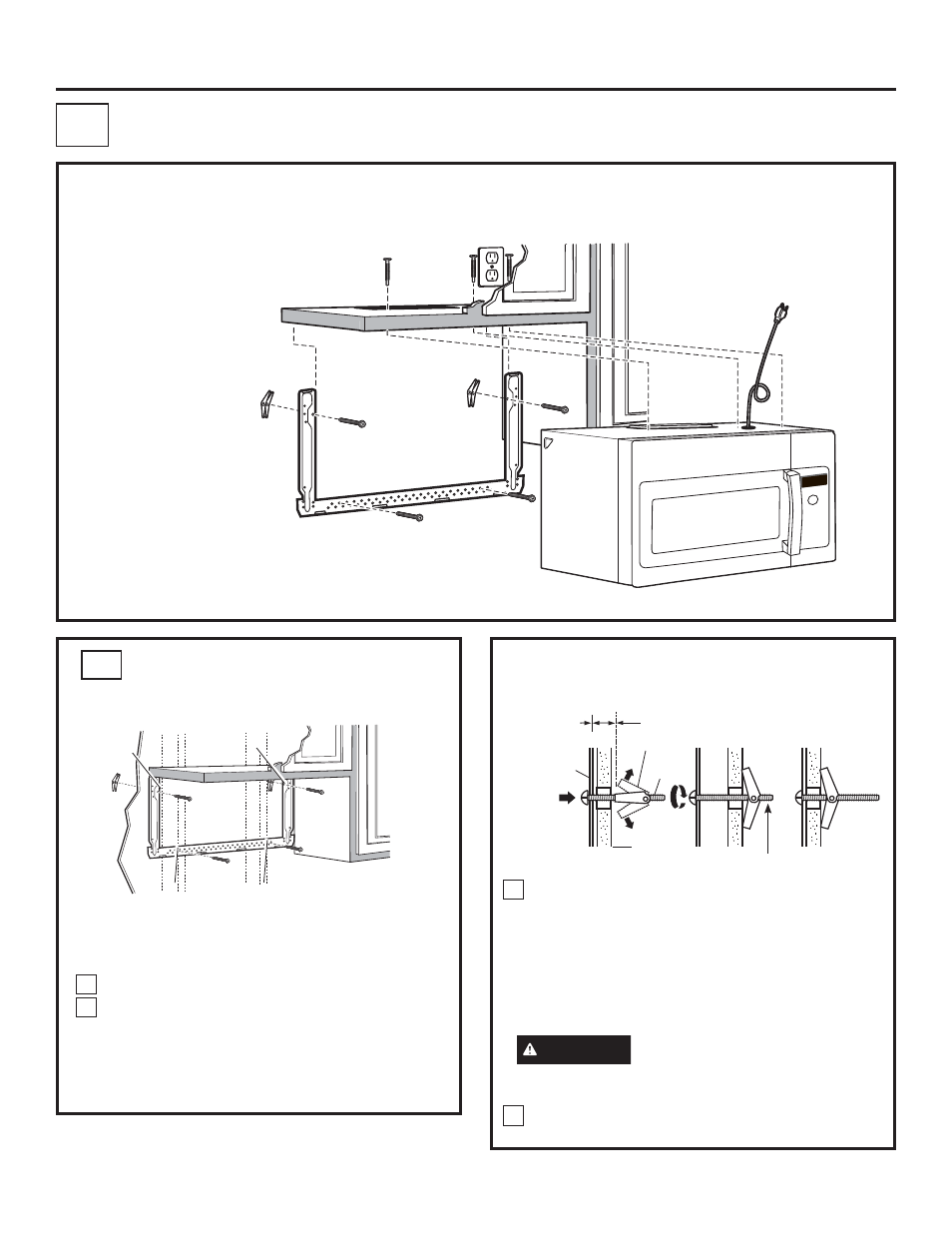

INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adaptor
A4. Mount Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
Installation Instructions
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION
Be careful to avoid pinching
fingers between the back of the mounting plate
and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
ATTACH THE MOUNTING
PLATE TO THE WALL A1
Attach the plate to the wall using toggle bolts. At
least one wood screw must be used to attach the
plate to a wall stud. Recommended locations on the
mounting plate are indicated by A, B, C and D.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach
the toggle wings to
3 »
4
ƎRQWRHDFKEROW
1
Wall
Mounting
Plate
Spacing for
Toggles More Than
Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2
C D
B
A
