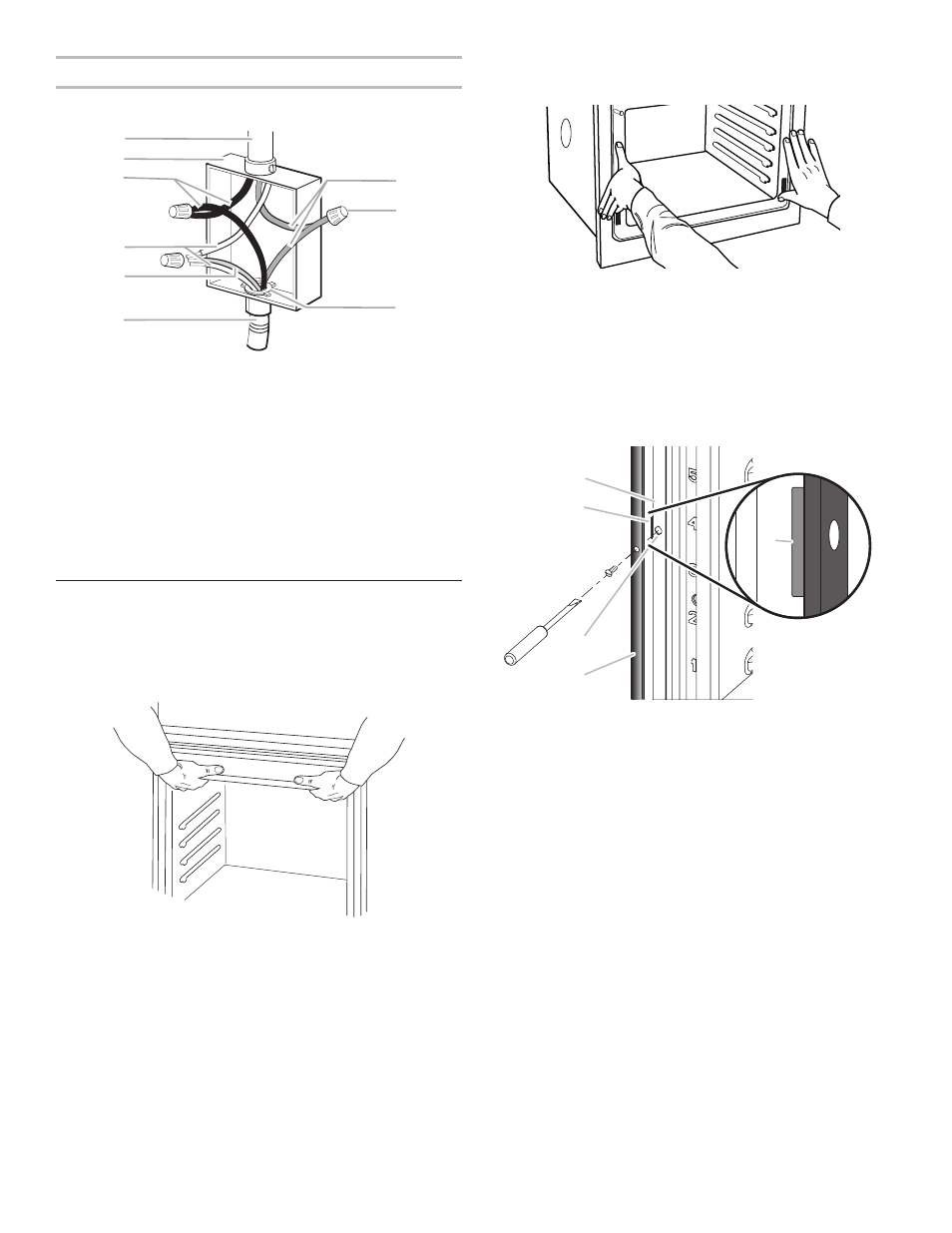

3-Wire Cable from Home Power Supply - U.S. Only
IMPORTANT: Use the 3-wire cable from home power
supply where local codes permit a 3-wire connection.
1. Connect the 2 black wires (C) together using
a UL listed wire connector.
2. Connect the 2 white wires (D) and the green (or bare) ground
wire (of the oven cable) using a UL listed wire connector.
3. Connect the 2 red wires (G) together using
a UL listed wire connector.
4. Install junction box cover.
Install Oven
1. Using 2 or more people, lift the oven partially into the cabinet
cutout. Use the oven opening as an area to grip.
NOTE: Push against seal area of the oven front frame when
pushing the oven into the cabinet. Do not push against the
outside edges.
2. Push against the seal area of the front frame to push
the oven into the cabinet until the back surface of the
front frame touches the front wall of the cabinet.
3. Push oven completely into the cabinet and center
the oven into the cabinet cutout.
4. Remove the tape from the black front trim, and remove
the zip tie from the mounting spacer.
■
Securely fasten the oven to the cabinet using the
#8-14 x 1" screws provided.
■
Insert the screws through holes in black trim, aligning
with the holes in oven frame and mounting spacers
already in place. Do not overtighten screws.
B
C
D
E
F
H
G
A
I
A. Cable from home power supply
B. Junction box
C. Black wires
D. White wires
E. Green (or bare) ground
wire (from oven)
F. 4-wire flexible conduit
from oven
G. Red wires
H. UL listed wire connectors
I. UL listed or CSA approved
conduit connector
A
C
D
B
B
A. Oven frame
B. Mounting spacer
C. Oven frame hole
D. Black trim piece
