4

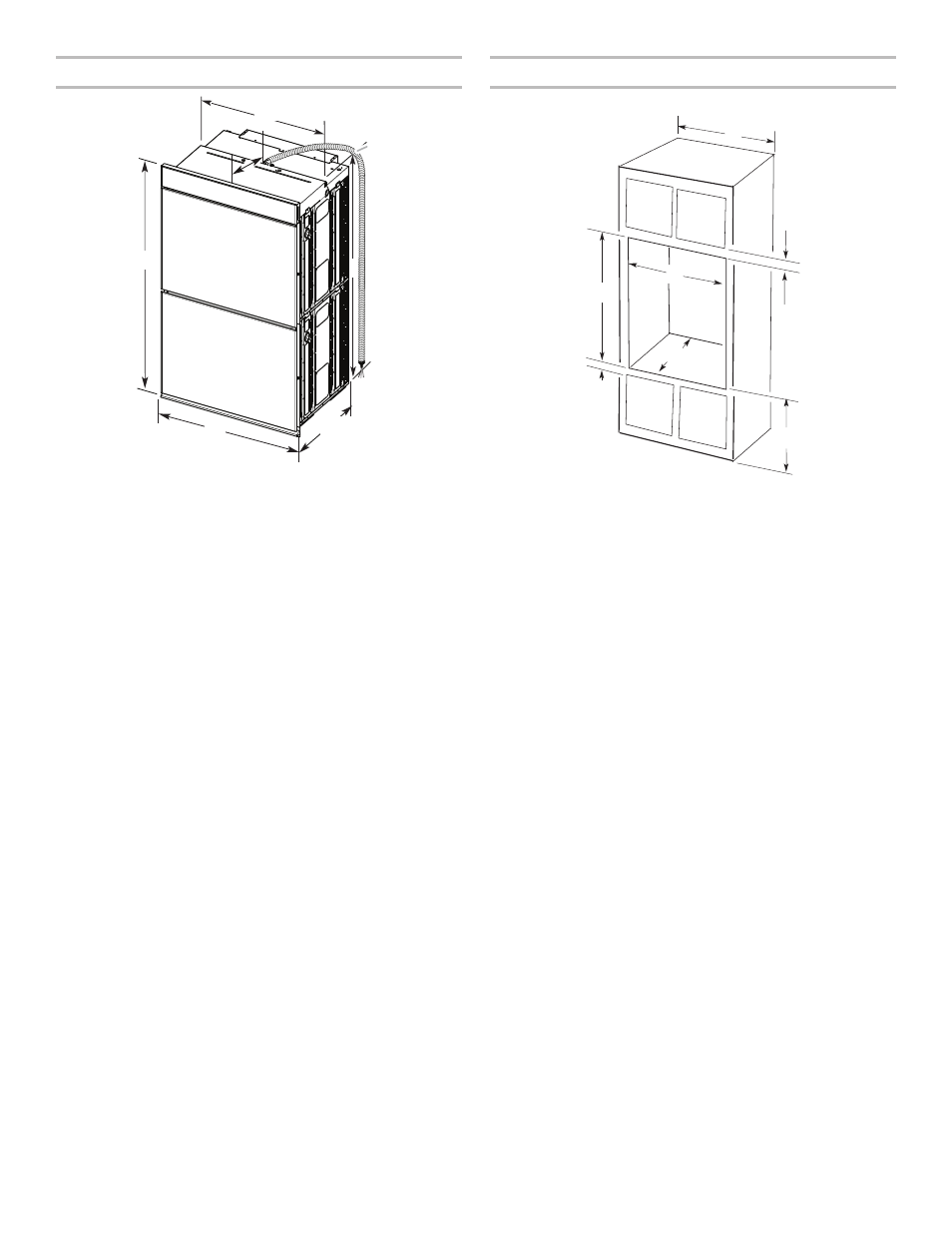

Product Dimensions - Double Ovens Cabinet Dimensions - Double Ovens
Double Ovens Installed in Cabinet
* NOTE: The cutout height can be between 49 1 /
2
" and 52 3 /
16
"
(125.2 cm and 132.6 cm) for double ovens.
C
B
A
E D
G
F
A. 52 3 /
8
" (133 cm) max. overall height
B. 28 7 /
16
" (72.2 cm) max. recessed width
C. 49 1 /
4
" (125.1 cm) recessed height
D. 23 1 /
4
" (59.1 cm) max. recessed depth
E. 30" (76.2 cm) overall width
F. 12" (30.5 cm) from back of control panel to start of strain relief
G. 66" (167.6 cm) flexible conduit length
F
E
A
D
G
B
C
A. 30" (76.2 cm) min. cabinet width
B. 2
3 /
16
" (5.5 cm) top of cutout to bottom of upper cabinet door
C. 14 3 /
4
" (37.5 cm) bottom of cutout to floor is recommended.
4"-14 3 /
4
" (10.2-37.5 cm) bottom of cutout to floor is acceptable.
D. 28 1 /
2
" (72.4 cm) cutout width
E. 1 1 /
2
" (3.8 cm) min. bottom of cutout to top of cabinet door
F. 50 1 /
4
" (127.6 cm)* recommended cutout height
G. 24" (60.7 cm) cutout depth
