Getting Started
11 GB

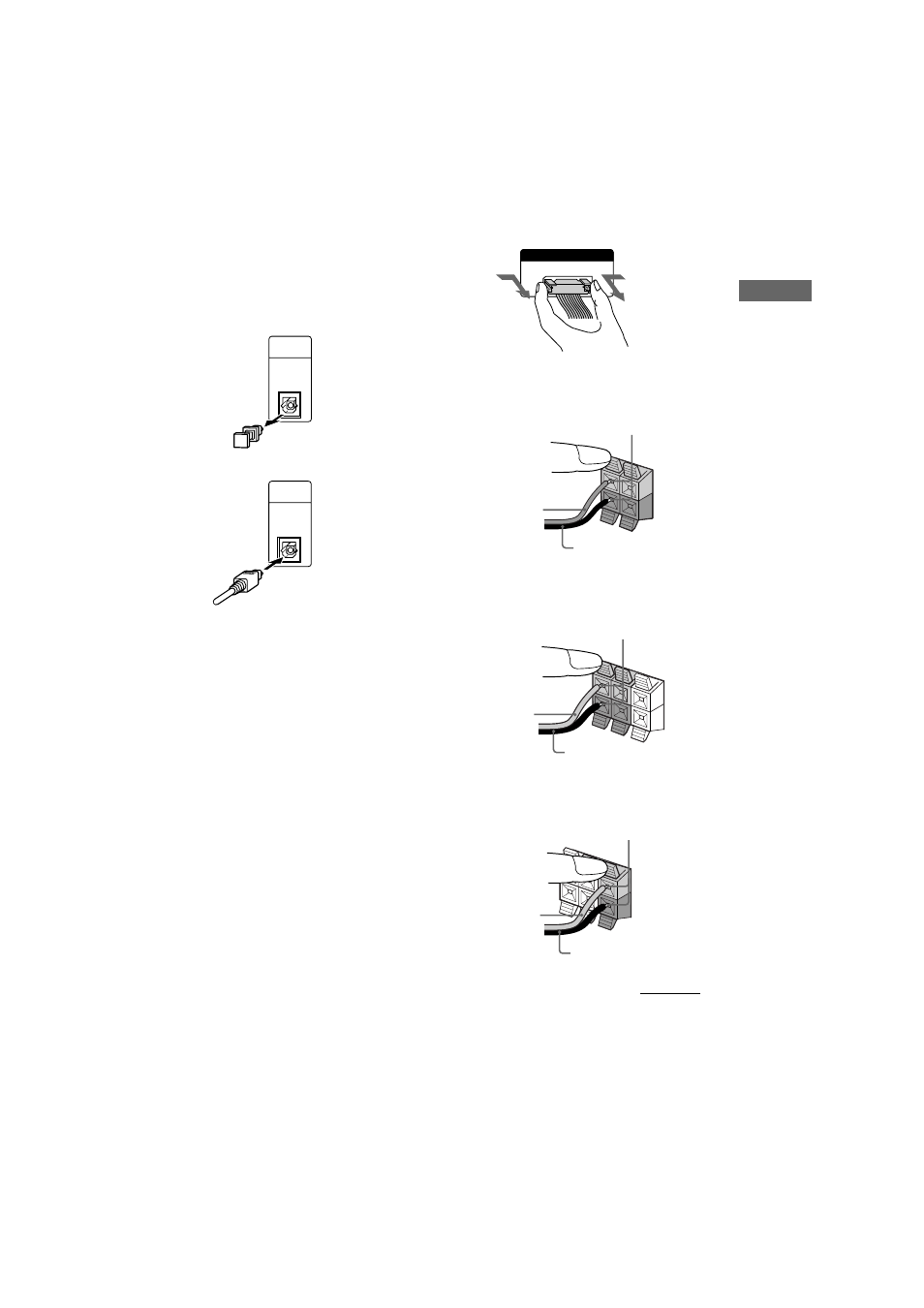

3 Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks.
4 Connect the rear speakers.
Connect the speaker cords to the REAR
SPEAKER jacks.
5 Connect the center speaker.
Connect the speaker cords to the CENTER
SPEAKER jacks.
1 Connect the DVD/VIDEO CD/CD player
and the tuner with the optical cable.
Connect from the OPTICAL OUT jack on
the DVD/VIDEO CD/CD player to the
OPTICAL IN jack on the tuner.
1 Remove the cover of the jack.
2 Connect the optical cable.
Be sure to connect the optical cable securely.
Otherwise, you will not hear any sound from
the DVD/VIDEO CD/CD player.
2 Connect the flat system control cables
to the SYSTEM CONTROL connectors
until it clicks.
Connect to the same colored jack in the
order indicated on the rear panel.
A SYSTEM CONTROL 1 (Red)
Connect from the tuner to the A/V
amplifier.
B SYSTEM CONTROL 2 (Blue)
Connect from the tuner to the A/V
amplifier.
C SYSTEM CONTROL 3 (Black)
Connect from the DVD/VIDEO CD/CD
player to the tuner.
D SYSTEM CONTROL 4 (Black)
Connect from the tuner to the cassette deck.
E SYSTEM CONTROL 5 (White)
Connect from the cassette deck to the DVD/
VIDEO CD/CD player.
To disconnect
Insert only the stripped portion.
–
R
L
+
R
L
+
–
+
Black/Stripe (#)
Gray/Solid (3)
Insert only the stripped portion.
OPTICAL
IN
FROM
DVP-S9
OPTICAL
IN
FROM
DVP-S9
+
–
+
R
L
Black/Stripe (#)
Red/Solid (3)
Black/Stripe (#)
Gray/Solid (3)
Insert only the stripped portion.
SYSTEM CONTROL 3
FROM DVP-S9
continued
