Page 7
MHC-S90D 4-235-983-43(2) GB

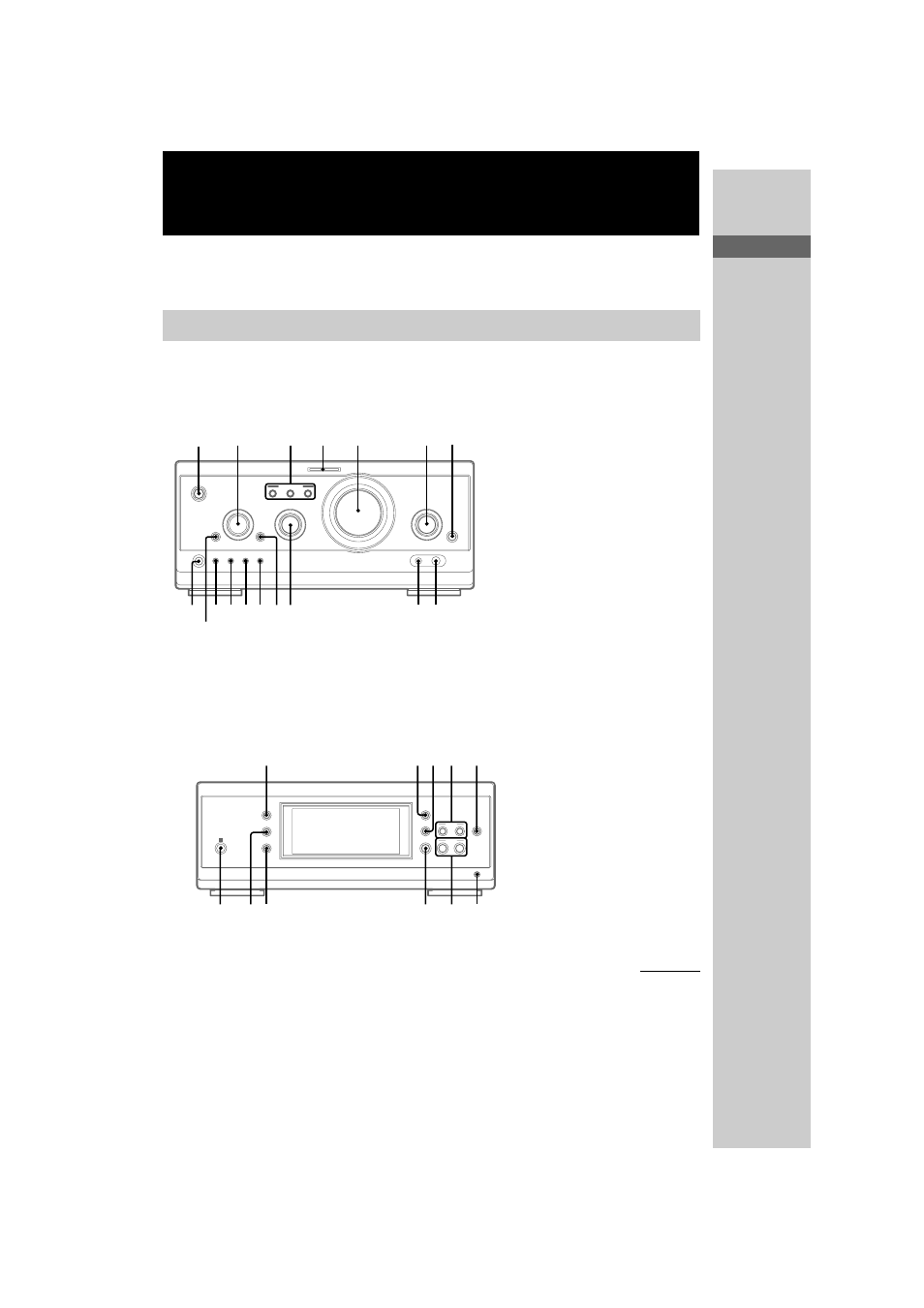

Parts Identification
7
GB
Parts Identification
Main unit
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
A/V amplifier
Tuner
CINEMA STUDIO A–C 3 (49)
DIGITAL 7 (57, 63)
DVD MENU qf (27)
ENTER/
O/o/P/p 2
EQ qa (52)
EQ ON/OFF qs (13, 53)
FILE SELECT q; (26, 48, 49,
53)
FUNCTION 6 (12, 13, 25, 27,
28, 36, 45, 46, 55, 57, 62)
MIC jack (Except for North
American and European
models) 9 (54)
MIC LEVEL (Except for North
American and European
models) 8 (54)
MULTI CHANNEL DECODING
indicator 4 (50)
PHONES jack qj
SET UP qd (14, 16, 51, 53, 54)
SUR qh (51)
TITLE qg (27)
VOLUME 5
@/1 (power) 1 (12, 13, 63)
CLOCK/TIMER wj (17, 47, 56)
DISPLAY qk (17, 31, 32, 43, 54,
63)
ENTER ws (42, 43)
IR receptor wk
PRESET –/+ wf (42, 43)
PTY (European model only) wd
(43)
STEREO/MONO ql (43, 63)
TIMER SELECT wh (47, 56)
TUNER/BAND wg (42)
TUNER MEMORY w; (42)
TUNING –/+ wa (42)
continued
A
P
o
O
p
B
C
4
3
5
6
2
7
8
9
q;
qa
qs
qd
qf
qg
qh
qj
1
–
–
+
+
qk
qlw; wa
ws
wf
wg
wd
wh
wj
wk
