Cello Installation Guide
Installation
MAN-CELIG (Ver. 1.602)
www.elmomc.com
29

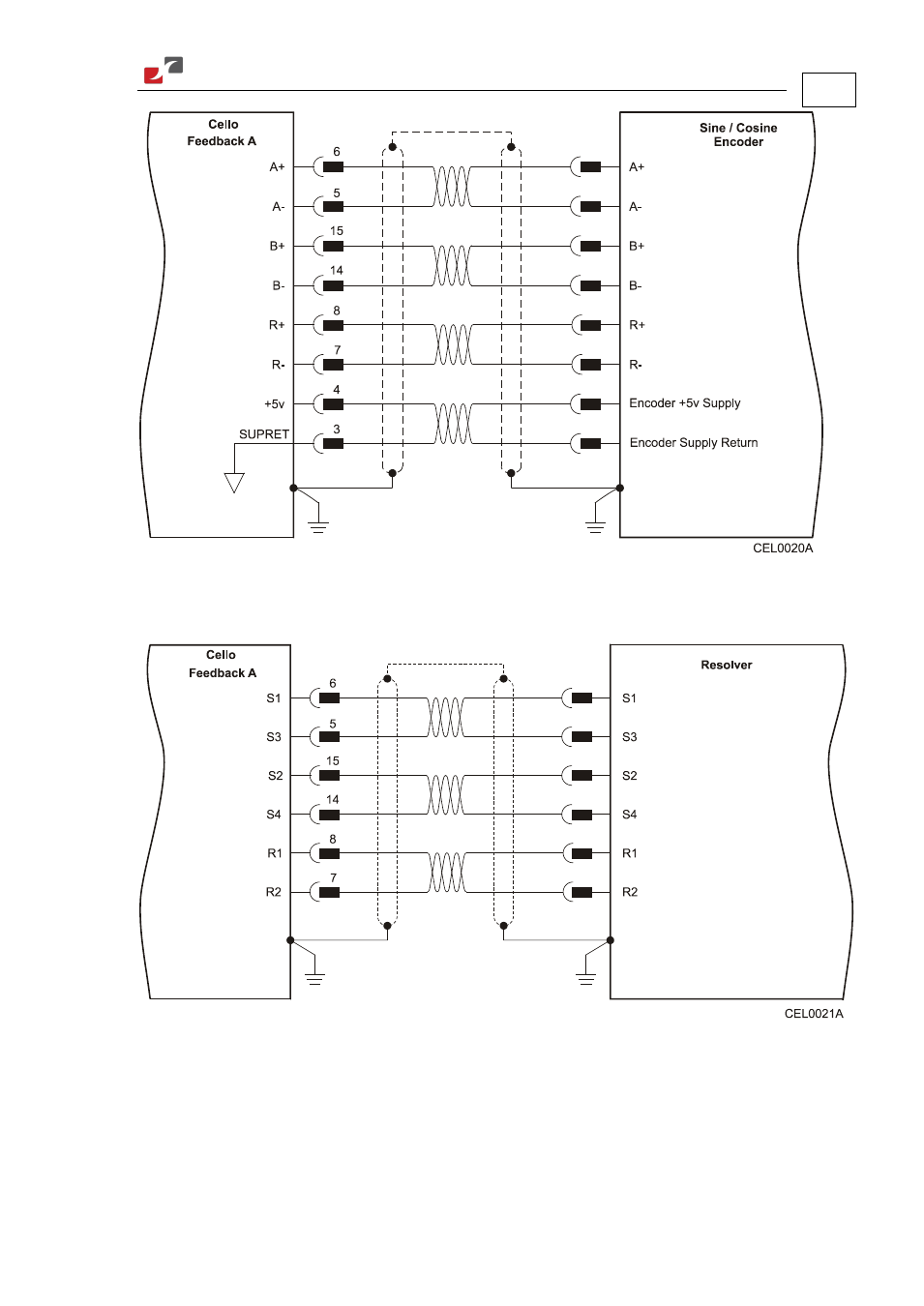

Figure 10: Main Feedback – Interpolated Analog (Sine/Cosine) Encoder Connection Diagram
Figure 11: Main Feedback – Resolver Connection Diagram
